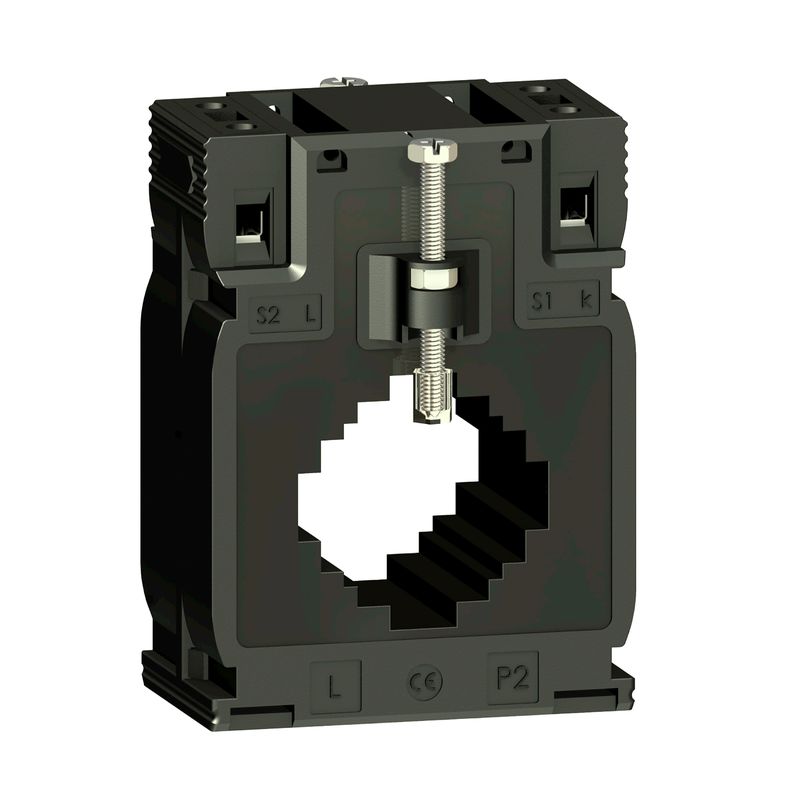

METSECT5MC060 | CT Solid core 32mm dia or bar 600x5A CTR - Schneider Electric - Image 1

    METSECT5MC060 | CT Solid core 32mm dia or bar 600x5A CTR – Schneider Electric

    SKU: METSECT5MC060

    Original price was: ₹6,185.00.Current price is: ₹4,515.05. Excl. GST

    Dispatch By : 7 Weeks

    Dispatch By : 7 Weeks

    17 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Specifications

    Main
    RangePowerLogic
    Product or component typeCurrent transformer
    Product nameCT
    Secondary current5 A
    Accuracy classClass 0.5 at 12 VA
    Class 1 at 15 VA
    [In] rated current600 A
    Complementary
    Current transformer typeTropicalised for busbar and cable
    Solid core
    Current transformer ratio600/5
    [Ith] conventional free air thermal current36 kA
    Dynamic withstand current2.5 Ith
    Maximum safety factor5
    [Ue] rated operational voltage< 720 V AC 50/60 Hz
    [Ui] rated insulation voltage3 kV 50 Hz for 1 minute
    Mounting modeBy screws
    Clip-on
    Insulated locking screw
    Mounting supportDIN rail
    Mounting plate
    Busbar
    WidthOutside: 70 mm
    Inner: 41 mm
    HeightOutside: 95 mm
    Inner: 41 mm
    DepthFrame : 45 mm
    Total : 65 mm
    Diameter32 mm
    Net weight0.449 kg
    [Uimp] rated impulse withstand voltage3 kV
    Electrical insulation classClass B
    Cable outer diameter32 mm
    Opening of bars32.5 x 20.5
    25.5 x 25.5
    40.5 x 10.5
    SealingWithout
    Environment
    StandardsVDE 0414
    IEC 61869-2
    Product certificationsCE
    EAC
    IP degree of protectionIP20
    Relative humidity0…95 %
    Ambient air temperature for operation-25…60 °C
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height7.500 cm
    Package 1 Width9.100 cm
    Package 1 Length12.000 cm
    Package 1 Weight429.200 g
    Unit Type of Package 2S03
    Number of Units in Package 225
    Package 2 Height30.000 cm
    Package 2 Width30.000 cm
    Package 2 Length40.000 cm
    Package 2 Weight11.130 kg
    Contractual warranty
    Warranty (in months)18
