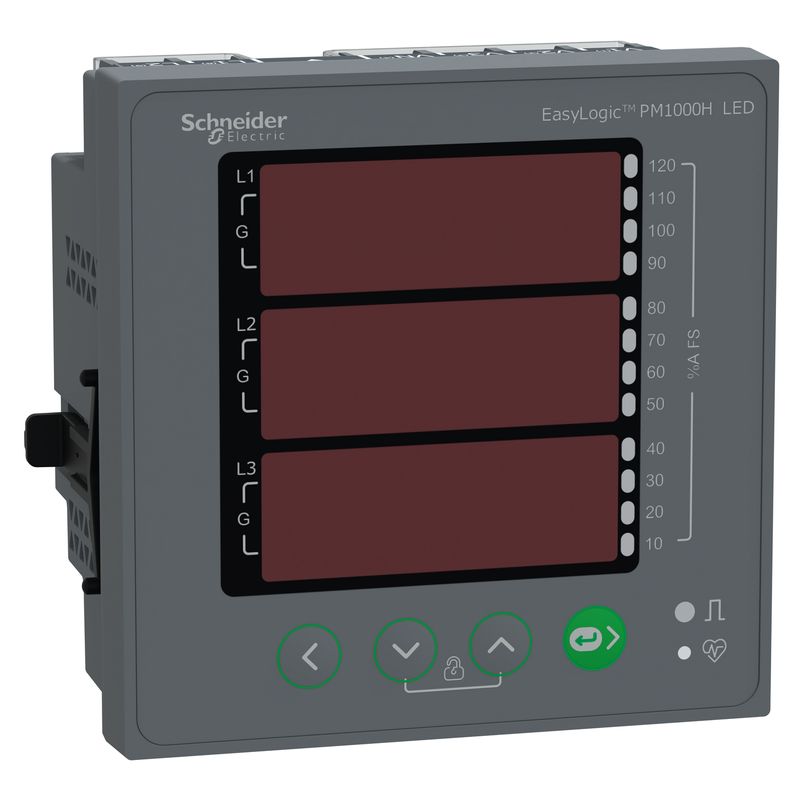

METSEPM1110HCL05 | PM1110H Power meter Class 0.5 RS485 – Schneider Electric

Name: METSEPM1110HCL05 - Panel mount meter, EasyLogic PM1110H, class 0.5, RS485 | Schneider Electric
Brand: Schneider Electric
SKU: METSEPM1110HCL05
Price: 5099.71 INR
Availability: BackOrder

SKU: METSEPM1110HCL05

Original price was: ₹13,783.00.Current price is: ₹5,099.71. Excl. GST

Dispatch By : 3 Weeks

17 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range	EasyLogic
Product or component type	Power meter
Complementary
Power quality analysis	total harmonic distortion
Device application	Energy monitoring
Type of measurement	Power factor per phase Power factor average Power Energy Active power demand Reactive power demand Apparent power demand Phase unbalance Phase angle RPM
Metering type	Active power P, P1, P2, P3 Apparent power S, S1, S2, S3 Reactive power Q, Q1, Q2, Q3 Active, reactive, apparent energy (signed, four quadrant) Demand power P, Q, S Unbalance current Unbalance voltage
Counter functions	ON hour counting ON-load hour counting Power interruption
[Us] rated supply voltage	48…277 V AC 45…65 Hz 48…277 V DC
Network frequency	50 Hz 60 Hz
[In] rated current	1 A 5 A
type of network	3P 2P + N 1P + N 3P + N 2P
Maximum power consumption in VA	4 VA at 240 V between phase and neutral
Maximum power consumption in W	2 W at 240 V
Display type	8 segments LED
Display colour	Red
Messages display capacity	3 fields of 4 characters
Display digits	12 digit(s) – 14.2 mm in height
Communication of data	Reading of measurements
Tamperproof of settings	Protected by access code
Sampling rate	32 samples/cycle
Measurement current	5…6000 mA
Signal	Voltage (impedance 5 MOhm)4 x Current 0.005…10 A (impedance 0.3 MOhm)6 x
Measurement voltage	46…277 V AC 50…60 Hz between phase and neutral 80…480 V AC 50…60 Hz between phases 100…999000 V AC 50…60 Hz with external VT
Frequency measurement range	45…65 Hz
Measurement accuracy	Power factor +/- 0.01 Reactive power +/- 2 % Active power +/- 0.5 % Apparent power +/- 0.5 % Active energy +/- 0.5 % Reactive energy +/- 2 % Apparent energy +/- 0.5 % Harmonic distortion (I THD & U THD) +/- 5 %
Accuracy class	Class 0.5S active energy conforming to IEC 62053-22 Class 2 reactive energy conforming to IEC 62053-23
Demand intervals	1 s
Local signalling	Green LED: activity Red LED: output signal 1…9999000 pulse/ k_h (kWh, kVAh, kVARh)
Communication port protocol	Modbus at 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none – 2 wires, insulation 2500 V
Communication port support	Screw connector: RS485
Mounting mode	Flush-mounted Vertical
Mounting support	Framework
Type of installation	Indoor installation Must be permanently connected and fixed
Measurement category	Category III 480 V
Electrical insulation class	Class II Double insulation
Connections – terminals	Current circuit: screw clamp terminals (bottom) 2.08…3.31 mm² cable(s) Voltage circuit: screw clamp terminals (top) 0.82…3.31 mm² cable(s) Control circuit: screw clamp terminals (top) 0.82…3.31 mm² cable(s) Communication: screw clamp terminals (bottom) 0.33…3.31 mm² cable(s)
Tightening torque	Current circuit: 0.9…1 N.m Philips No 2 screwdriver Voltage circuit: 0.9…1 N.m Philips No 2 screwdriver Control circuit: 0.9…1 N.m Philips No 2 screwdriver Communication: 0.5…0.6 N.m Philips no 1 screwdriver
Wire stripping length	Current circuit: 3.68 mm for terminal connection Voltage circuit: 7 mm Control circuit: 7 mm Communication: 6 mm
Standards	IEC 61010-1:ed. 3 UL 61010-1:ed. 3
Product certifications	CE conforming to IEC 61010-1 CULus conforming to UL 61010-1 CULus conforming to CSA C22.2 No 61010-1
Width	96 mm
Depth	Outside : 13 mm Panel : 49 mm
Height	96 mm
Environment
Electromagnetic compatibility	Electrostatic discharge conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 Surge immunity test conforming to IEC 61000-4-5 Conducted RF disturbances conforming to IEC 61000-4-6 Magnetic field at power frequency conforming to IEC 61000-4-8 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 Emission tests conforming to FCC part 15 class A Emission tests conforming to FCC part 15 Subpart C Emission tests conforming to FCC part 15 Subpart E
Overvoltage category	III
IP degree of protection	IP51 front: conforming to IEC 60529 IP30 body: conforming to IEC 60529
Relative humidity	5…95 %
Pollution degree	2
Ambient air temperature for operation	-10…60 °C
Ambient air temperature for storage	-20…70 °C
Operating altitude	<= 2000 m
service life	7 year(s)
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	11.5 cm
Package 1 Width	8.7 cm
Package 1 Length	12 cm
Package 1 Weight	350 g
Unit Type of Package 2	S03
Number of Units in Package 2	18
Package 2 Height	30 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	6.8 kg
Pallet layers	2
Contractual warranty
Warranty (in months)	18
