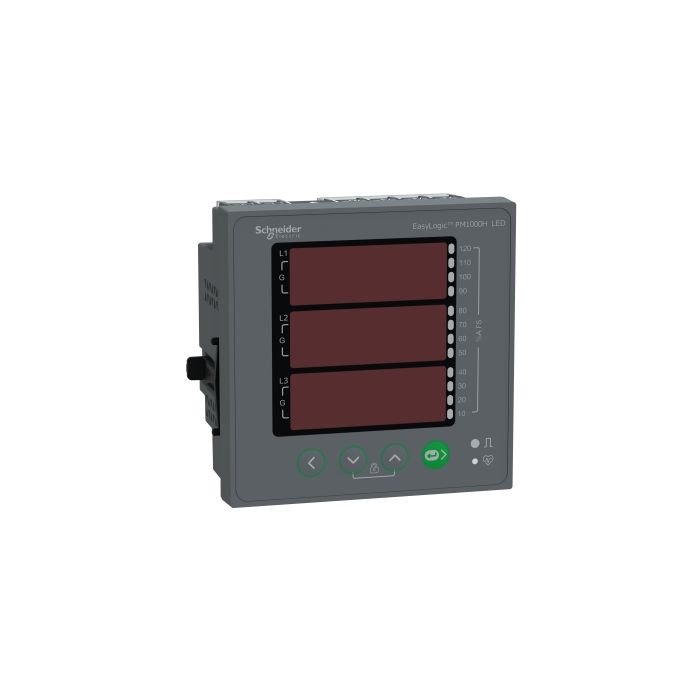

METSEPM1125HCL10RD | Easylogic Pm1125H Multifunction Meter
[Product Image Here]
Product Description
The Easylogic PM1125H from Schneider Electric is a high-performance multifunction meter designed for precise electrical parameter measurement and monitoring in commercial and industrial applications.
Key Features:
- Class 1.0 Accuracy for reliable and precise measurements
- Multifunction Capability measures voltage, current, power, energy, frequency, and more
- RS485 Communication Port for seamless integration with monitoring systems
- Compact and easy-to-install design
- Clear LCD display for real-time parameter visualization
- Suitable for three-phase networks
- Robust construction for industrial environments
Technical Specifications:
- Model: PM1125H
- Accuracy Class: 1.0
- Communication: 1 RS485 port
- Measurement Parameters: Voltage, Current, Power (kW, kVA, kVAR), Energy (kWh, kVARh), Power Factor, Frequency
- Display: Backlit LCD
- Standards: IEC 62053-21, IEC 62053-22, IEC 61010-1
Applications:
Ideal for energy monitoring in:
- Commercial buildings
- Industrial plants
- Data centers
- HVAC systems
- Electrical distribution panels
Enhance your energy management system with the reliable and accurate Schneider Electric Easylogic PM1125H multifunction meter, available now at myelectric.in
