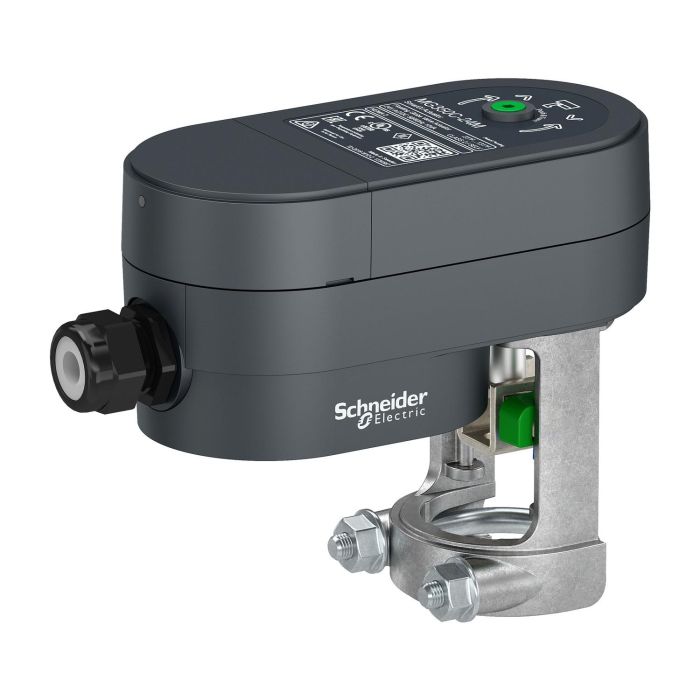

MG350C-24F | MG350C Floating Act. VG210/310 – Schneider Electric

Name: MG350C-24F | MG350C Floating Act. VG210/310 - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: MG350C-24F
Price: 24300.26 INR
Availability: BackOrder

SKU: MG350C-24F

Original price was: ₹41,897.00.Current price is: ₹24,300.26. Excl. GST

Dispatch By : 5 Weeks

20 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Sourced through authorised channels, the Schneider Electric MG350C-24F electrical component delivers dependable performance for industrial, commercial, and infrastructure applications. Key ratings include IP22. myelectric.in stocks the MG350C-24F | MG350C Floating Act. VG210/310 for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	MG350C-24F
Category	Electrical Component
Main
Actuator product range	SpaceLogic
Product or component type	Actuator
Actuator type	Electric
Actuator product series	MG350C
Actuator model	MG350C
Product destination	globe valve
Hold-in power consumption in W	0.5 W
Power loss return	Non-spring return
Control signal	2-position (on/off) Floating
Conduit connection	1 x 20 mm conduit hole Gland for 6-12 mm O/D cable
Duty cycle	20 %
Targeted region	Europe Asia Pacific. Australia.
Complementary
Actuator	Linear
Control type	Automatic reset
rated supply voltage	24 V AC/DC
Feedback signal	2…10 V DC
Power consumption in W	3 W
Stroke length	0.9375 mm
Stroke auto calibration	True
Electrical insulation class	Class II
Force N	350 N
Force lbf	79 lbf
Position indicator	Stroke indicator on bracket
Additional features	LED status indicator
Leads and connections	Removable terminal block
Connection valve	Integral linkage
Stroke running time	102 s
Material	Reinforced teflon: seal EPDM: O-rings Polycarbonate: housing
Environment
IP degree of protection	IP22
Ambient air temperature for operation	-5…55 °C
Relative humidity	5…95 % non-condensing
Ambient air temperature for storage	-40…70 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	17.6 cm
Package 1 Width	14.2 cm
Package 1 Length	8.4 cm
Package 1 Weight	780 g
Unit Type of Package 2	S03
Number of Units in Package 2	12
Package 2 Height	30 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	8.601 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
