MG350C-24M | MG350C Mod. Act. VG210/310 – Schneider Electric

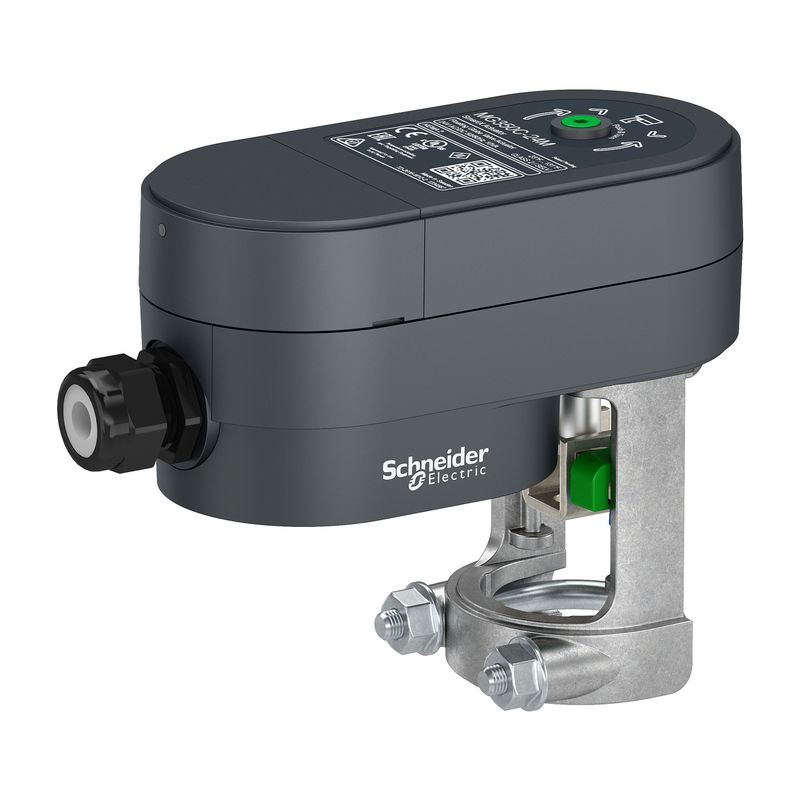

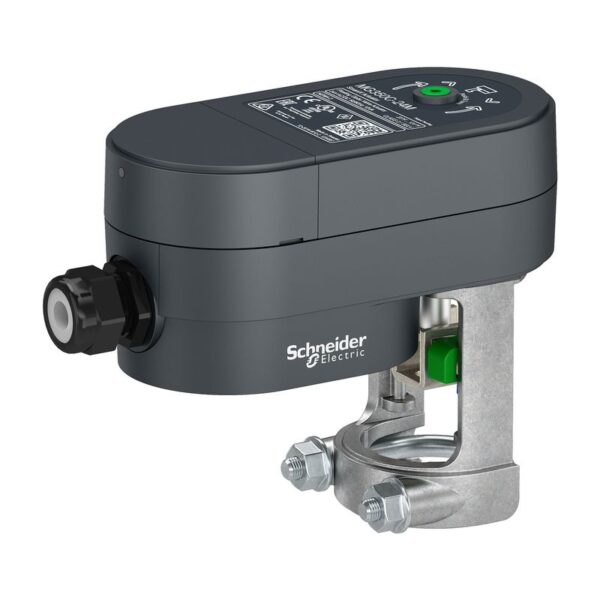

Name: MG350C-24M - SpaceLogic MG350C Globe valve actuator, modulating | Schneider Electric
Brand: Schneider Electric
SKU: MG350C-24M
Price: 11723.54 INR
Availability: BackOrder

SKU: MG350C-24M

Original price was: ₹20,213.00.Current price is: ₹11,723.54. Excl. GST

Dispatch By : 1 Weeks

15 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Actuator product range	SpaceLogic
Product or component type	Actuator
Actuator type	Electric
Actuator product series	MG350C
Actuator model	MG350C
Product destination	globe valve
Hold-in power consumption in W	0.5 W
Power loss return	Non-spring return
Control signal	Modulating
Conduit connection	1 x 20 mm conduit hole Gland for 6-12 mm O/D cable
Duty cycle	20 %
Targeted region	Europe Asia Pacific. Australia.
Complementary
Actuator	Linear
Control type	Automatic reset
rated supply voltage	24 V AC/DC
Analogue input range	0…10 V DC
Feedback signal	2…10 V DC
Power consumption in W	3 W
Stroke length	0.9375 mm
Stroke auto calibration	True
Electrical insulation class	Class II
Force N	350 N
Force lbf	79 lbf
Position indicator	Stroke indicator on bracket
Additional features	LED status indicator
Leads and connections	Removable terminal block
Connection valve	Integral linkage
Stroke running time	102 s
Material	Reinforced teflon: seal EPDM: O-rings Polycarbonate: housing
Environment
IP degree of protection	IP22
Ambient air temperature for operation	-5…55 °C
Relative humidity	5…95 % non-condensing
Ambient air temperature for storage	-40…70 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	17.6 cm
Package 1 Width	14.4 cm
Package 1 Length	8.6 cm
Package 1 Weight	780 g
Unit Type of Package 2	S03
Number of Units in Package 2	12
Package 2 Height	30 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	9.777 kg
Contractual warranty
Warranty (in months)	18
