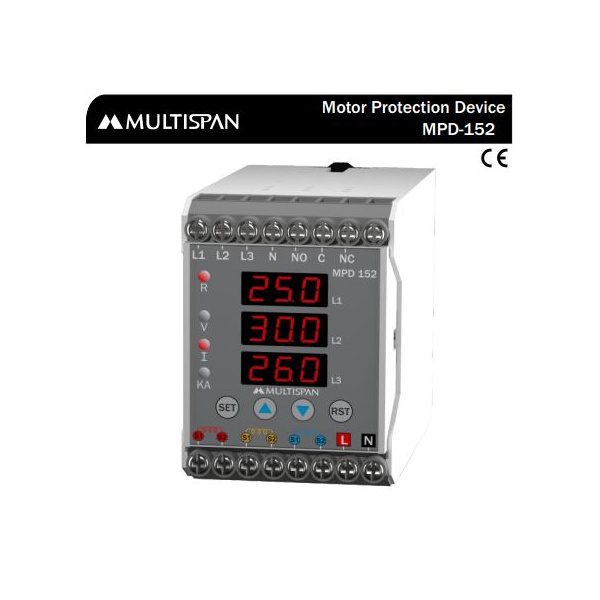

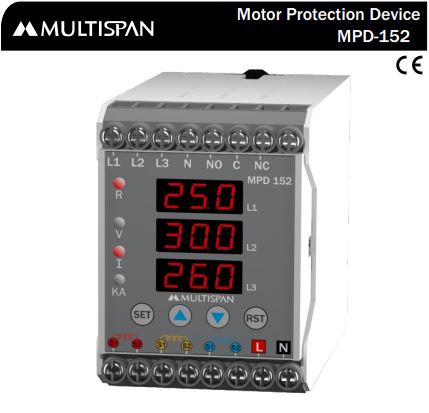

MPD-152 (Din rail – 55mm) VOLTAGE & CURRENT PROTECTION RELAY – DIN RAIL 75 X 55 X 110 MULTISPAN

Name: Multispan MPD-152 DIN Rail Voltage & Current Relay | MPD-152 (Din rail - 55mm)
Brand: Multispan
SKU: MPD-152 (Din rail - 55mm)
Price: 2236.50 INR
Availability: InStock

SKU: MPD-152 (Din rail - 55mm)

CT Ratio Selectable Upto 5/5 to 6000/5A AC, 3 Phase 3 Wire / 4 Wire Selectable,
Output : 1 Relay for tripping parameters,
Tripping Facility : Over voltage, Under voltage, Over current , Under current, Unbalance, SPP, Phase sequence, Over frequency, Under frequency, Neutral loss, Short circuit, Lock rotor point ,
Supply : 100 -270V AC

Original price was: ₹3,195.00.Current price is: ₹2,236.50. Excl. GST

12 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Sourced through authorised channels, the DIN RAIL 75 X 55 X 110 MULTISPAN MPD-152 (Din rail – 55mm) relay delivers dependable performance for motor control and switching. myelectric.in stocks the MPD-152 (Din rail – 55mm) VOLTAGE & CURRENT PROTECTION RELAY for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Parameter	Value
Brand	DIN RAIL 75 X 55 X 110 MULTISPAN
Part Number / SKU	MPD-152 (Din rail – 55mm)
Category	Relay
Rated Frequency	50/60 Hz
Mounting	35mm DIN rail or plug-in socket
Standard	IEC 60947-5-1
Certifications	BIS certified where applicable

⚡ Key Features

Manufactured to IEC 60947-5-1 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified where applicable — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised DIN RAIL 75 X 55 X 110 MULTISPAN product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: How do I test the MPD-152 (DIN RAIL – 55MM) relay in the field without a signal source?

A: Most DIN RAIL 75 X 55 X 110 MULTISPAN relays can be manually forced using the test button (if fitted) — this mechanically closes the relay contacts without energising the coil, allowing functional testing of the controlled circuit. For coil testing, use a multimeter to measure coil resistance (typically 500–2000Ω for AC coils at rated voltage) and compare with datasheet values.

Q: Can the MPD-152 (DIN RAIL – 55MM) relay be mounted on a DIN rail socket for easy replacement?

A: This DIN RAIL 75 X 55 X 110 MULTISPAN relay typically requires direct panel or DIN rail wiring. For applications requiring frequent relay replacement, consider the plug-in relay variant of this series with a matching socket base.
