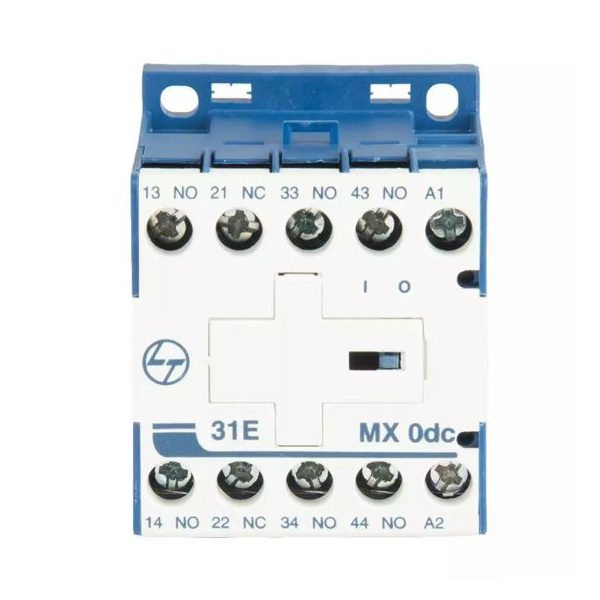

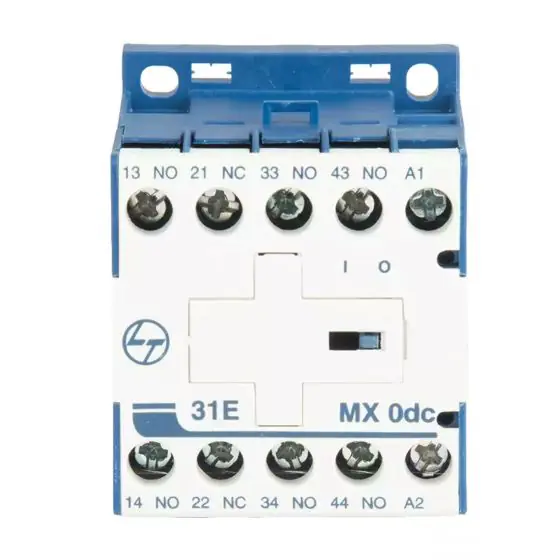

MX0 Mini Control contactor 4A 4P 415V AC 3NO+1NC AC-15 24V DC Coil | L&T – CS940284OOO

Name: L&T MX0 Mini Control Contactor 4A 4P 415V AC, 3NO+1NC, AC-15, 24V DC Coil | Reliable & Compact
Brand: Lauritz Knudsen (L&T)
SKU: CS940284OOO
Price: 1727.20 INR
Availability: InStock

SKU: CS940284OOO

Original price was: ₹2,540.00.Current price is: ₹1,727.20. Excl. GST

10 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Sourced through authorised channels, the CS940284OOO CS940284OOO contactor delivers dependable performance for motor control and switching. Key ratings include 4 A, 24V DC, 4 Poles. myelectric.in stocks the MX0 Mini Control contactor 4A 4P 415V AC 3NO+1NC AC-15 24V DC Coil | L&T for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Parameter	Value
Brand	CS940284OOO
Part Number / SKU	CS940284OOO
Category	Contactor
Coil Voltage	24V DC
Contact Configuration	3 NO + 1 NC
Current Rating	4 A
Poles	4 Poles
Utilisation Category	AC-3 (motor duty) / AC-1 (resistive)
Rated Frequency	50/60 Hz
Motor Power (AC-3, 415V)	Up to 4 kW
Coil Operating Range	0.8–1.1 × rated coil voltage (Uc)
Mounting	35mm DIN rail or screw fixing
Standard	IEC 60947-4-1 / IS 13947-4-1
Certifications	BIS certified where applicable

⚡ Key Features

4 A AC-3 rated — suits up to a 4 kW squirrel-cage induction motor at 415V for direct-on-line (DOL) starting and running.
24V DC coil — connects directly to pushbutton station, PLC digital output, or timer relay; suitable for standard 50Hz Indian industrial control circuits.
4 Poles main contacts with silver-alloy (AgSnO₂) tips — rated for AC-3 duty (DOL motor starting/stopping); low contact resistance reduces heat at rated current.
Manufactured to IEC 60947-4-1 / IS 13947-4-1 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified where applicable — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised CS940284OOO product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: Is the CS940284OOO rated 4 A for AC-3 motor duty or AC-1 resistive duty?

A: The 4 A rating of this CS940284OOO contactor applies to AC-3 duty (squirrel cage motor starting and running). For AC-1 (resistive/non-inductive) loads, the current can be up to ~1.3× the AC-3 rating. AC-4 (plugging/reversing) requires significant de-rating — consult the CS940284OOO selection table.

Q: The CS940284OOO has a coil voltage of 24V DC — what control supply is needed?

A: This CS940284OOO device requires a 24V DC control supply connected to the coil terminals (A1 and A2). For DC coils, observe polarity where marked. DC coils produce no inrush and are preferred for PLC output cards. Always fit a surge suppressor across the coil when switching with a PLC or solid-state relay.

Q: What is the electrical and mechanical life of the CS940284OOO?

A: CS940284OOO contactors are rated for millions of operations: typically 10–30 million mechanical operations and 1–3 million electrical operations at rated current and voltage (AC-3 duty). High-frequency switching applications (>10 operations/hour) require checking the specific thermal capacity of the contactor for continuous duty without overheating.

Q: Can the CS940284OOO be used for reversing duty (forward/reverse motor control)?

A: Contactors used for reversing must be wired with two contactors interlocked so only one can energise at a time. The CS940284OOO series provides mechanical interlock kits that physically prevent both contactors from closing simultaneously — mandatory for reversing and brake applications to prevent phase-to-phase short circuits.

Q: Can multiple CS940284OOO contactors be wired for star-delta starting?

A: Yes. Star-delta starters use three contactors: main (KM1), star (KM2), and delta (KM3). The CS940284OOO contactor series supports mechanical and electrical interlocking accessories that prevent simultaneous energisation of star and delta contactors — critical for safety. Ensure all three contactors are rated correctly for the motor FLC and star-delta transition current.
