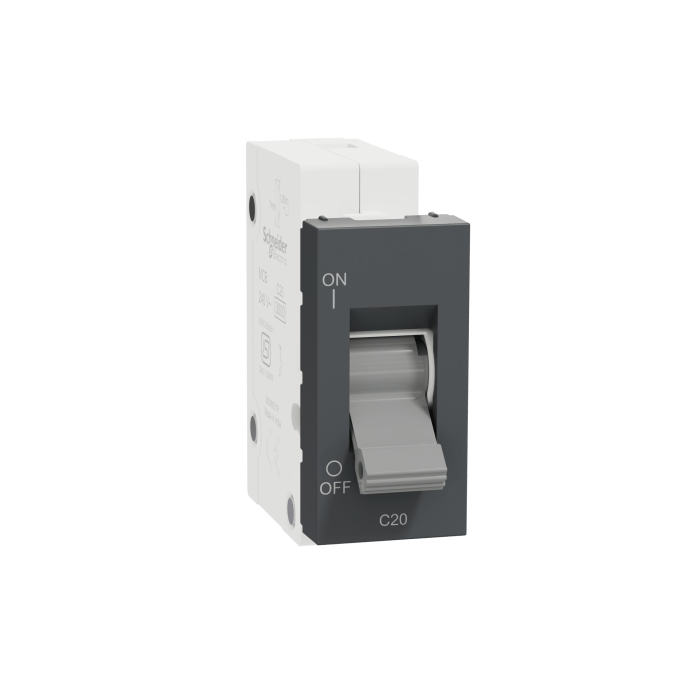

MZMM201P_AN | Miniature Circuit-Breaker, Miluz Zeta, 20A, C-Curve, 1 Module, Anthracite – Schneider Electric

Name: MZMM201P_AN | Miniature Circuit-Breaker, Miluz Zeta, 20A, C-Curve, 1 Module, Anthracite - Schneider Electric
Brand: Schneider Electric
SKU: MZMM201P_AN
Availability: BackOrder

SKU: MZMM201P_AN

Original price was: ₹1,191.00.Current price is: ₹1,024.26. Excl. GST

Dispatch By : 3 Weeks

14 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

The Schneider Electric MZMM201P_AN is an electrical component from the Miluz range, engineered for industrial, commercial, and infrastructure applications in demanding Indian and international installations. Key ratings include 20 A, 1P, IP20. Buy the MZMM201P_AN | Miniature Circuit-Breaker, Miluz Zeta, 20A, C-Curve, 1 Module, Anthracite online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	MZMM201P_AN
Category	Electrical Component
Main
Range	Miluz
Device application	Distribution
Product or component type	Miniature circuit-breaker
Aesthetic name	Miluz ZeTa
Device presentation	Basic element with central cover plate
Poles description	1P
Rated current	20 A at 240 V AC
Number of modules	1 module
fixing mode	Snap-fitted
Complementary
Connections – terminals	Screw terminals
Clamping connection capacity	4 mm²
Trip unit technology	Thermal-magnetic
Breaking capacity	3 kA
Material	Polycarbonate and polyamide
Standards	IEC 60898
Ambient air temperature for operation	-5…45 °C
Depth	59.18 mm
Width	22.2 mm
Height	56 mm
Curve code	C
Relative humidity	0…95 %
surface treatment	Painted
Surface finish	Matt
Environment
IP degree of protection	IP20
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.918 cm
Package 1 Width	2.22 cm
Package 1 Length	5.6 cm
Package 1 Weight	67 g
Unit Type of Package 2	BB1
Number of Units in Package 2	10
Package 2 Height	6.45 cm
Package 2 Width	6.2 cm
Package 2 Length	26.3 cm
Package 2 Weight	740.2 g
Contractual warranty
Warranty (in months)	18

⚡ Key Features

20 A current rating — confirmed from product specifications; size wiring and terminals to match or exceed this value.
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

MZCP1M_ANMZCP2M_ANMZCP3M_ANMZCP3MU_ANMZCP4M_ANMZCP6M_ANMZCP8MS_ANMZCP8MH_ANMZCP9M_ANMZCP12M_ANMZCP16M_ANMZCP18M_ANMZCP1M_SGMZCP12M_SGMZCP16M_SGMZCP18M_SGMZCP2M_SGMZCP3M_SGMZCP3MU_SGMZCP4M_SG

❓ Frequently Asked Questions

Q: What is the significance of the 20 A rating on the MZMM201P_AN?

A: The 20 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.

Q: How many single-pole MCBs can be installed in the MZMM201P_AN with 1 modules?

A: With 1 modules available, the MZMM201P_AN can accommodate that many standard 17.5mm-pitch single-pole devices. Multi-pole MCBs occupy proportionally more space: 2P = 2 modules, 3P = 3 modules, 4P = 4 modules. Mixed configurations (e.g. one 2P RCCB + remaining SP MCBs) can be planned using the module count.
