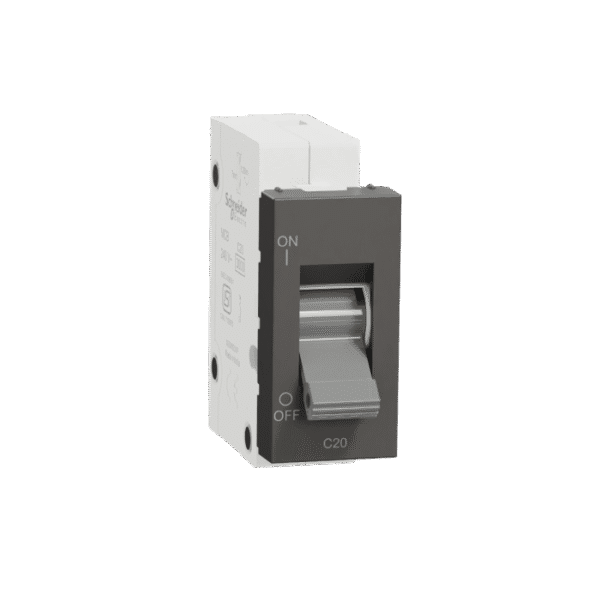

MZMM201P_WG | Miniature Circuit-Breaker, Miluz Zeta, 20A, C-Curve, 1 Module, Warm Grey
Product Description
The MZMM201P_WG from Schneider Electric’s Miluz Zeta series is a high-quality miniature circuit breaker designed for reliable protection of electrical circuits in residential and commercial applications.
Key Features:
- Current Rating: 20A
- Tripping Curve: C-Curve (ideal for moderate inrush current applications)
- Modular Size: Compact 1-module design saves space in distribution boards
- Color: Warm Grey finish for aesthetic appeal
- Breaking Capacity: High breaking capacity for reliable protection
- Voltage Rating: 230/400V AC
- Standards Compliance: Meets IEC 60898-1 standards
Applications:
Ideal for protecting lighting circuits, power sockets, and other electrical installations in:
- Residential buildings
- Small offices
- Commercial spaces
- Light industrial applications
Technical Specifications:
| Parameter | Value |
|---|---|
| Product Range | Miluz Zeta |
| Pole | 1P |
| Rated Current | 20A |
| Tripping Characteristic | C |
| Rated Voltage | 230/400V AC |
| Breaking Capacity | 6kA |
| Mounting | DIN Rail |
| Width | 17.5mm (1 module) |
Why Choose Schneider Electric MCBs?
Schneider Electric’s Miluz Zeta series offers reliable circuit protection with:
- Precise tripping characteristics for optimal protection
- Durable construction for long service life
- Easy installation and maintenance
- Global safety standards compliance
Available now at myelectric.in – your trusted source for quality electrical components.
