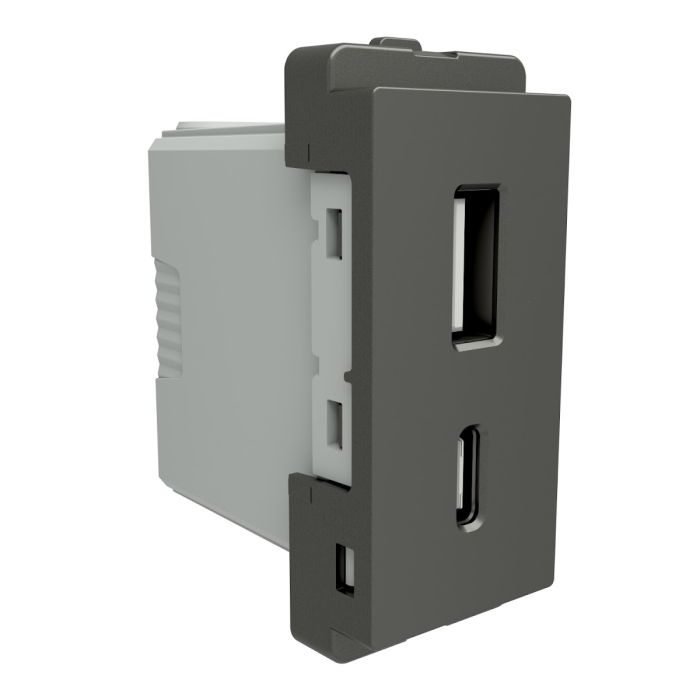

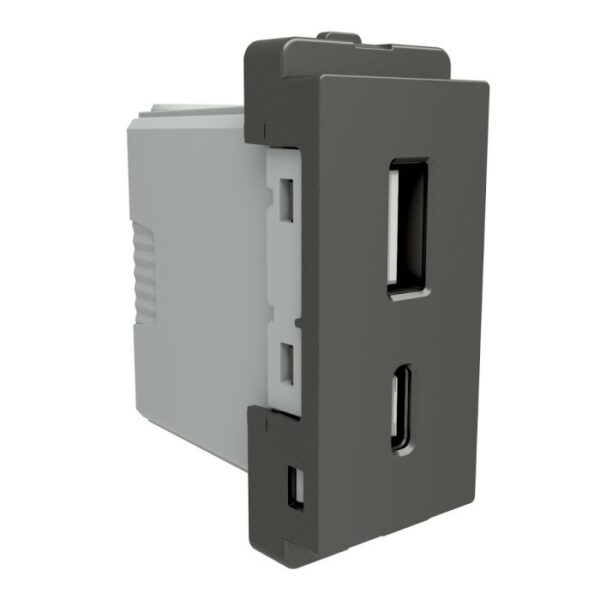

P7003_PG_N | A + C 1mod USB, Painted Grey – Schneider Electric

Name: P7003_PG_N | A + C 1mod USB, Painted Grey - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: P7003_PG_N
Price: 1314.71 INR
Availability: BackOrder

SKU: P7003_PG_N

Original price was: ₹4,241.00.Current price is: ₹1,314.71. Excl. GST

Dispatch By : 2 Weeks

15 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

The Schneider Electric P7003_PG_N is an electrical component from the Livia range, engineered for industrial, commercial, and infrastructure applications in demanding Indian and international installations. Key ratings include 220…240 V AC at 50/60 Hz, IK02. Buy the P7003_PG_N | A + C 1mod USB, Painted Grey online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	P7003_PG_N
Category	Electrical Component
Main
Range of product	Livia
Range	Livia
Product or component type	USB socket
Type of USB power supply	USB type A + C
Device application	Power supply
Device presentation	Mechanism with cover plate
Colour tint	Pristine grey
Number of terminals	2 screw terminals
Targeted channel	Distributor
Complementary
[Ue] rated operational voltage	220…240 V AC at 50/60 Hz
Socket number	2
Device mounting	Flush
Surface finish	Matt
surface treatment	Painted Antibacterial
Number of modules	1 module
fixing mode	Snap-fitted
Connector type	USB A+C
Input power	0.3 W
Integrated connection type	2 USB type A + C 5 V DC, maximum load current: 2.4 A
Material	PC (polycarbonate)
Protection type	Short-circuit protection Over temperature protection Overcurrent protection Overvoltage protection
Height	54.4 mm
Width	22.7 mm
Depth	39.9 mm
Product weight	0.0345 kg
Standards	IS 13252-1
load type	Capacitive Resistive
Environment
Ambient air temperature for storage	-5…45 °C
Relative humidity	10…90 %
IK degree of protection	IK02
IP degree of protection	IP20
Environmental characteristic	Indoor use
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	1 cm
Package 1 Width	9.5 cm
Package 1 Length	18.5 cm
Package 1 Weight	44 g
Unit Type of Package 2	BB1
Number of Units in Package 2	10
Package 2 Height	10 cm
Package 2 Width	9.5 cm
Package 2 Length	27 cm
Package 2 Weight	544 g
Unit Type of Package 3	CAR
Number of Units in Package 3	320
Package 3 Height	32 cm
Package 3 Width	39 cm
Package 3 Length	55 cm
Package 3 Weight	14.256 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
