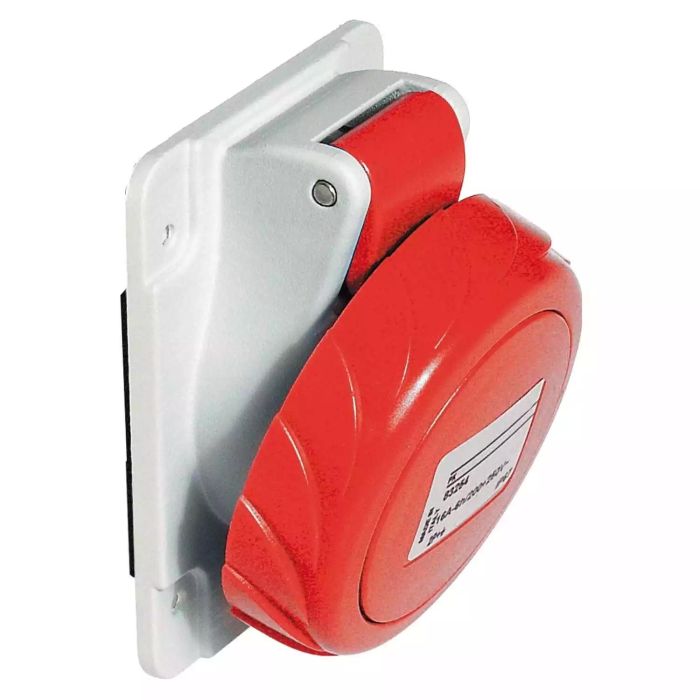

PKF16F734 | Panel socket angled PK PratiKa screw 16A – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: PKF16F734

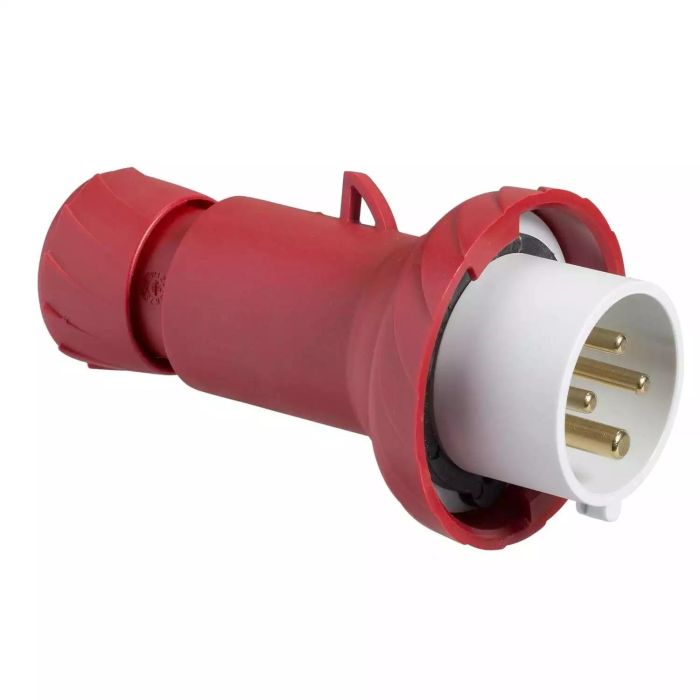

Looking for the PKE16M734 | Wander plug PK PratiKa screw 16A IP67? This genuine Schneider Electric industrial plug & socket (iec 60309) from the Mureva range is built for everyday wiring and control, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 16 A, 380…415 V, 3P + E. Order part number PKE16M734 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	PKE16M734
Category	Industrial Plug & Socket (IEC 60309)
Main
Range	Mureva
Product or component type	Wander plug
Device short name	Mureva plug
Plug, socket category	Low voltage
Poles description	3P + E
Network type	AC
Outlet standard	Industrial
Complementary
Plug, socket, control station shape	Straight
[In] rated current	16 A
[Ue] rated operational voltage	380…415 V
Network frequency	50/60 Hz
Ground lug clockwise position	6 h
Plug, socket material	Housing: self-extinguishing engineering polymer
Contacts material	Sleeves: brass
Connections – terminals	Captive screws
Cable cross section	1…4 mm²
Cable outer diameter	8…15 mm
cable entry	Fair lead Cable gland
Thread type	Pg 16
Product weight	0.17 kg
Height	139 mm
Width	81 mm
Depth	81 mm
Colour	Grey (RAL 7035)
Voltage colour	Red
Environment
Standards	IEC 60309-1 IEC 60309-2
IP degree of protection	IP67 conforming to IEC 60529
IK degree of protection	IK08 conforming to EN 62262
Fire resistance	850 °C conforming to IEC 60695-2-11
Relative humidity	50 % at 40 °C 70 % at 30 °C 90 % at 20 °C
Operating altitude	2000 m
Ambient air temperature for operation	35 °C ( 86400 s ) -25…40 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	15.000 cm
Package 1 Width	8.000 cm
Package 1 Length	8.000 cm
Package 1 Weight	175.600 g
Unit Type of Package 2	BB1
Number of Units in Package 2	10
Package 2 Height	18.000 cm
Package 2 Width	26.600 cm
Package 2 Length	26.800 cm
Package 2 Weight	1.890 kg
Unit Type of Package 3	S03
Number of Units in Package 3	20
Package 3 Height	30.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	3.912 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

16 A current rating — confirmed from product specifications; size wiring and terminals to match or exceed this value.
IP67 enclosure rating — confirmed ingress protection against dust and moisture for the installation environment.
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

PKF16F734PKF16M734PKF16W734PKY16M734PKF16G73483085

❓ Frequently Asked Questions

Q: What is the significance of the 16 A rating on the PKE16M734?

A: The 16 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.

Q: What environments is the IP67 rating on the PKE16M734 suitable for?

A: IP67 means the enclosure is dust-tight (complete protection) (first digit: 6) and protected against temporary immersion up to 1m for 30 minutes (second digit: 7). This makes the PKE16M734 suitable for outdoor, wash-down, and wet-process environments. Always verify IP integrity after installation — damaged seals or unused cable entries reduce actual protection.

Q: How do I identify the correct PKE16M734 socket to pair with this plug?

A: IEC 60309 plugs and sockets are colour-coded and keyed by voltage/frequency: Red body = 380–415V 3-phase 50Hz (India standard). The keyway angle on the plug must match the socket’s keyway — this is factory-set per voltage and prevents wrong-voltage mating. Always purchase matching plug and socket from the same Schneider Electric catalogue to ensure correct keying and IP rating.
