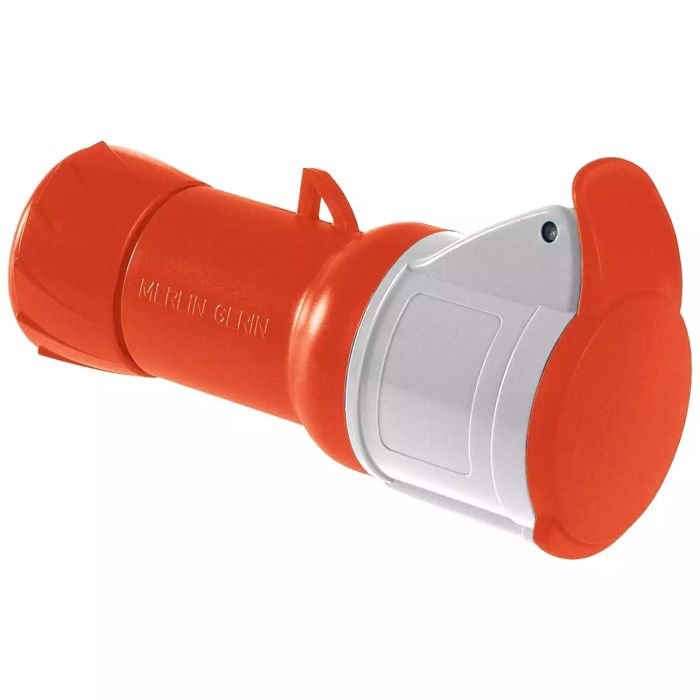

PKF16M434 | Wander socket PK PratiKa screws 16A IP44 – Schneider Electric

Name: PKF16M434 | Wander socket PK PratiKa screws 16A IP44 - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: PKF16M434
Price: 631.80 INR
Availability: BackOrder

SKU: PKF16M434

Original price was: ₹1,170.00.Current price is: ₹631.80. Excl. GST

Dispatch By : 3 Weeks

17 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

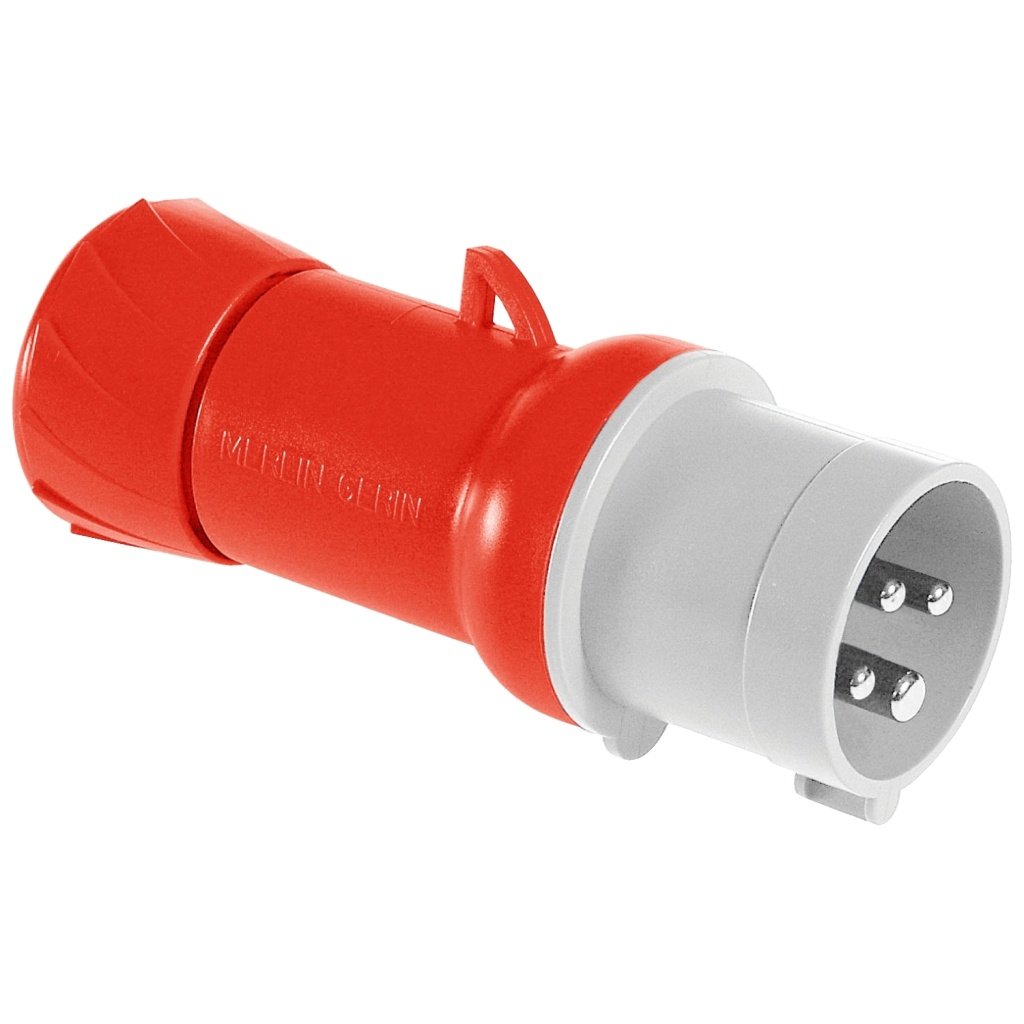

PKE32M434 PratiKa wander plug straight 32 A 3P E 380 415 V AC IP44 Schneider Electric pg149043 1500x1500

-48%

PKE16M434 | PratiKa wander plug – straight – 16 A – 3P + E – 380…415 V AC – IP44 – Schneider Electric

Plug

Schneider Electric

Excl. GST

Add to basket

SKU: PKE16M434

Looking for the PKF16M434 | Wander socket PK PratiKa screws 16A IP44? This genuine Schneider Electric industrial plug & socket (iec 60309) from the Mureva range is built for everyday wiring and control, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 16 A, 380…415 V, 3P + E. Order part number PKF16M434 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	PKF16M434
Category	Industrial Plug & Socket (IEC 60309)
Main
Range	Mureva
Product or component type	Wander socket
Device short name	Mureva screw
Plug, socket category	Low voltage
Poles description	3P + E
Network type	AC
Outlet standard	Industrial
Complementary
Plug, socket, control station shape	Straight
[In] rated current	16 A
[Ue] rated operational voltage	380…415 V
Network frequency	50/60 Hz
Ground lug clockwise position	6 h
Plug, socket material	Housing: self-extinguishing engineering polymer
Contacts material	Sleeves: brass
Connections – terminals	Captive screws
Cable cross section	1…4 mm²
Cable outer diameter	8…15 mm
cable entry	Cable gland Fair lead
Thread type	Pg 21
Product weight	0.184 kg
Height	88 mm
Width	88 mm
Depth	150 mm
Colour	Grey (RAL 7035)
Voltage colour	Red
Environment
Standards	IEC 60309-1 IEC 60309-2
IP degree of protection	IP44 conforming to IEC 60529
IK degree of protection	IK08 conforming to EN 62262
Fire resistance	850 °C conforming to IEC 60695-2-1
Relative humidity	50 % at 40 °C 70 % at 30 °C 90 % at 20 °C
Ambient air temperature for operation	35 °C ( 86400 s ) -25…40 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	6.000 cm
Package 1 Width	8.500 cm
Package 1 Length	15.500 cm
Package 1 Weight	167.000 g
Unit Type of Package 2	BB1
Number of Units in Package 2	10
Package 2 Height	12.400 cm
Package 2 Width	26.600 cm
Package 2 Length	26.600 cm
Package 2 Weight	1.832 kg
Unit Type of Package 3	S03
Number of Units in Package 3	30
Package 3 Height	30.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	5.983 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

16 A current rating — confirmed from product specifications; size wiring and terminals to match or exceed this value.
IP44 enclosure rating — confirmed ingress protection against dust and moisture for the installation environment.
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

PKE16M434PKX16M434

❓ Frequently Asked Questions

Q: What is the significance of the 16 A rating on the PKF16M434?

A: The 16 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.

Q: What environments is the IP44 rating on the PKF16M434 suitable for?

A: IP44 means the enclosure is solid particle protection (first digit: 4) and protected against water splash from all directions (second digit: 4). This makes the PKF16M434 suitable for indoor-outdoor transitional areas, splash-prone locations. Always verify IP integrity after installation — damaged seals or unused cable entries reduce actual protection.

Q: How do I identify the correct PKF16M434 socket to pair with this plug?

A: IEC 60309 plugs and sockets are colour-coded and keyed by voltage/frequency: Red body = 380–415V 3-phase 50Hz (India standard). The keyway angle on the plug must match the socket’s keyway — this is factory-set per voltage and prevents wrong-voltage mating. Always purchase matching plug and socket from the same Schneider Electric catalogue to ensure correct keying and IP rating.
