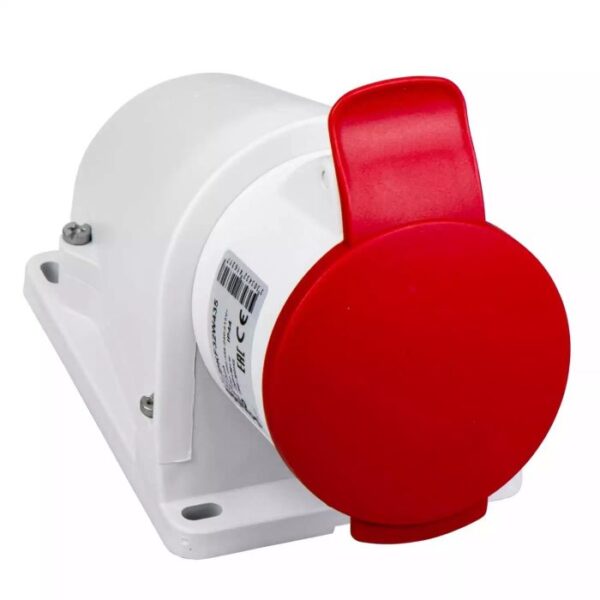

PKF32W435 | WALL SOCKET PK PRATIKA SCREW 32A IP44 38 – Schneider Electric

Name: PKF32W435 | WALL SOCKET PK PRATIKA SCREW 32A IP44 38 - Schneider Electric
Brand: Schneider Electric
SKU: PKF32W435
Availability: BackOrder

SKU: PKF32W435

Original price was: ₹2,124.00.Current price is: ₹1,146.96. Excl. GST

Dispatch By : 3 Weeks

11 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-48%

PKE32M435 | PratiKa wander plug – straight – 32 A – 3P + N + E – 380…415 V AC – IP44 – Schneider Electric

Plug

Schneider Electric

Excl. GST

Add to basket

SKU: PKE32M435

Sourced through authorised channels, the Schneider Electric PKF32W435 industrial plug & socket (iec 60309) from the Mureva range delivers dependable performance for everyday wiring and control. Key ratings include 32 A, 380…415 V, 3P + N + E. myelectric.in stocks the PKF32W435 | WALL SOCKET PK PRATIKA SCREW 32A IP44 38 for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	PKF32W435
Category	Industrial Plug & Socket (IEC 60309)
Main
Range	Mureva
Product or component type	Socket
Device short name	Mureva socket
Plug, socket category	Low voltage
Poles description	3P + N + E
Network type	AC
Outlet standard	Industrial
Complementary
Mounting mode	Wall-mounted
Plug, socket, control station shape	Angled
[In] rated current	32 A
[Ue] rated operational voltage	380…415 V
Network frequency	50/60 Hz
Ground lug clockwise position	6 h
Plug, socket material	Housing: self-extinguishing engineering polymer
Contacts material	Sleeves: brass
Connections – terminals	Captive screws
Cable cross section	2.5…10 mm²
Cable outer diameter	21 mm
Thread type	M25
Product weight	0.33 kg
Height	120 mm
Width	90 mm
Depth	125 mm
Colour	Grey (RAL 7035)
Voltage colour	Red
Environment
Standards	IEC 60309-2 IEC 60309-1
IP degree of protection	IP44 conforming to IEC 60529
IK degree of protection	IK08 conforming to EN 62262
Fire resistance	750 °C conforming to IEC 60695-2-1
Relative humidity	50 % at 40 °C 70 % at 30 °C 90 % at 20 °C
Ambient air temperature for operation	35 °C ( 86400 s ) -25…40 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	9.000 cm
Package 1 Width	12.500 cm
Package 1 Length	16.000 cm
Package 1 Weight	299.000 g
Unit Type of Package 2	BB1
Number of Units in Package 2	6
Package 2 Height	18.000 cm
Package 2 Width	27.000 cm
Package 2 Length	27.000 cm
Package 2 Weight	1.955 kg
Unit Type of Package 3	S03
Number of Units in Package 3	12
Package 3 Height	30.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	4.314 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

32 A current rating — confirmed from product specifications; size wiring and terminals to match or exceed this value.
IP44 enclosure rating — confirmed ingress protection against dust and moisture for the installation environment.
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

PKE32M435PKX32M435

❓ Frequently Asked Questions

Q: What is the significance of the 32 A rating on the PKF32W435?

A: The 32 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.

Q: What environments is the IP44 rating on the PKF32W435 suitable for?

A: IP44 means the enclosure is solid particle protection (first digit: 4) and protected against water splash from all directions (second digit: 4). This makes the PKF32W435 suitable for indoor-outdoor transitional areas, splash-prone locations. Always verify IP integrity after installation — damaged seals or unused cable entries reduce actual protection.

Q: How do I identify the correct PKF32W435 socket to pair with this plug?

A: IEC 60309 plugs and sockets are colour-coded and keyed by voltage/frequency: Red body = 380–415V 3-phase 50Hz (India standard). The keyway angle on the plug must match the socket’s keyway — this is factory-set per voltage and prevents wrong-voltage mating. Always purchase matching plug and socket from the same Schneider Electric catalogue to ensure correct keying and IP rating.
