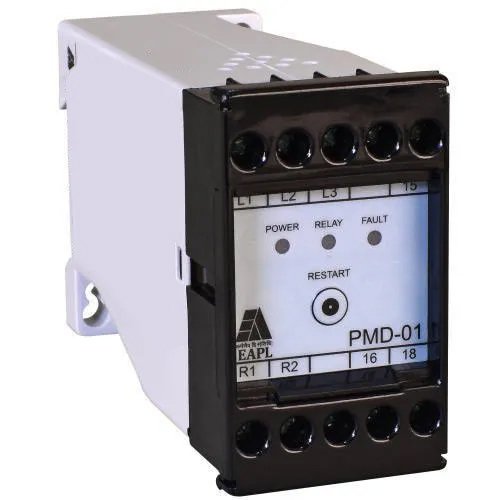

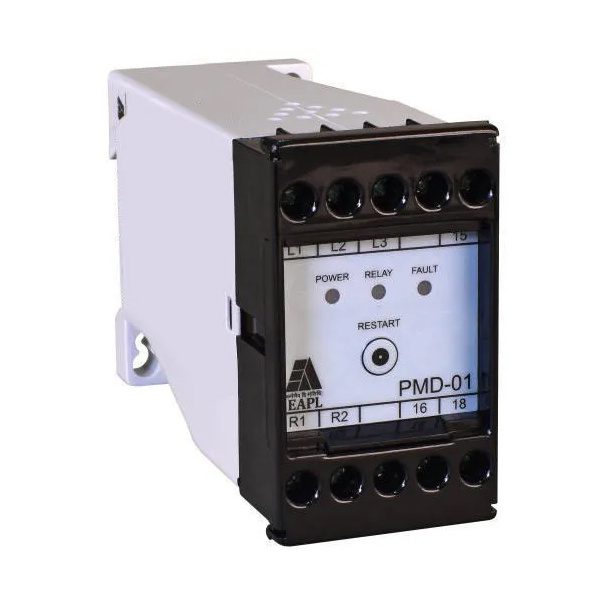

PMD-01a | Rly2C/0 Phase Monitoring Device (V2.0) – DIN Rail Mount
Key Features:
- Phase Failure Protection: Detects and alerts on phase loss.
- Reverse Phase Detection: Identifies incorrect phase sequence.
- Voltage Unbalance Monitoring: Ensures balanced 3-phase supply.
- Under-Voltage (UV) Protection: Safeguards equipment from low voltage.
- Self-Powered Design: No external power supply required.
- 3P3W (3-Phase, 3-Wire) Compatibility: Ideal for industrial applications.
- DIN Rail Mountable: Easy installation in control panels.
- Factory-Preset (TDT): Ready-to-use with default settings.
- EAPL Certified: Meets industry safety standards.
- Relay Output (2C/O): 2 Changeover contacts for control actions.
Applications:
- Industrial motor protection
- HVAC systems
- CNC machines
- Pump and compressor control
- Power distribution panels
Technical Specifications:
| Parameter | Details |
|---|---|
| Model | PMD-01a (V2.0) |
| Supply Voltage | Self-powered from monitored phases |
| Phase Type | 3P3W (3-Phase, 3-Wire) |
| Relay Output | 2 Changeover (2C/O) contacts |
| Mounting | DIN Rail (35mm) |
| Certification | EAPL compliant |
| Protection Features | Phase fail, reverse phase, unbalance, under-voltage |
Why Choose This Product?
Ensure your 3-phase equipment operates safely with the PMD-01a Phase Monitoring Device. Its self-powered design, reliable protection features, and DIN rail mounting make it perfect for industrial and commercial applications. Factory-preset for quick installation and EAPL certified for safety compliance.
