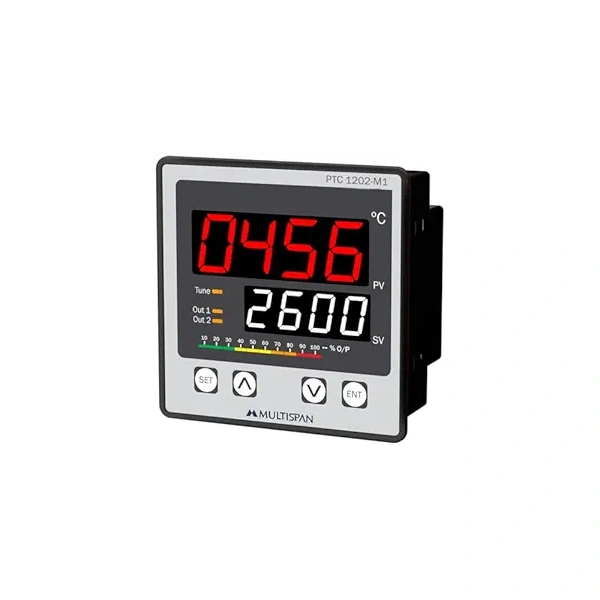

PTC-L12-M1 / PTC-1202-M1 Universal Input PID Controller with Analog Output & Modbus
Key Features:
- Universal Input: Supports thermocouples (J, K, T, E, R, S, B, N), RTDs (PT100, Cu50), and analog signals (0-20mA, 4-20mA, 0-5V, 1-5V).
- PID Control: Advanced PID algorithm for precise temperature/process control.
- Analog Output: 4-20mA or 0-10V output for external device control.
- Modbus RTU: RS485 communication for seamless integration with SCADA/PLC systems.
- Compact Design: 96x96x54mm panel-mounted form factor (DIN 96).
- Dual Display: LED/LCD screen shows PV (process value) and SV (set value) simultaneously.
- Alarm Function: Configurable high/low alarms with relay output.
- Auto-Tuning: Self-optimizing PID parameters for quick setup.
- Multi-Span: Wide measurement range across all input types.
- CE Certified: Complies with international safety standards.
Specifications:
| Model | PTC-L12-M1 / PTC-1202-M1 |
|---|---|
| Input Types | Thermocouples, RTDs, Voltage, Current |
| Control Output | Relay (SPDT), SSR Drive, Analog (4-20mA/0-10V) |
| Communication | Modbus RTU via RS485 |
| Power Supply | 85-265V AC / 24V DC (Universal) |
| Enclosure Rating | IP65 (Front Panel) |
| Mounting | Panel Mount (96x96mm) |
| Warranty | 2 Years |
Applications:
- Industrial heating systems
- Plastic extrusion machines
- Packaging equipment
- HVAC control
- Process automation
- Laboratory instruments
Buy the Multispan PTC-L12-M1/PTC-1202-M1 PID Controller online at MyElectric.in – India’s trusted destination for industrial automation products. This versatile temperature controller combines precision PID control with Modbus communication for seamless integration into modern control systems. Ideal for OEMs and plant engineers seeking reliable process control with universal input compatibility.
