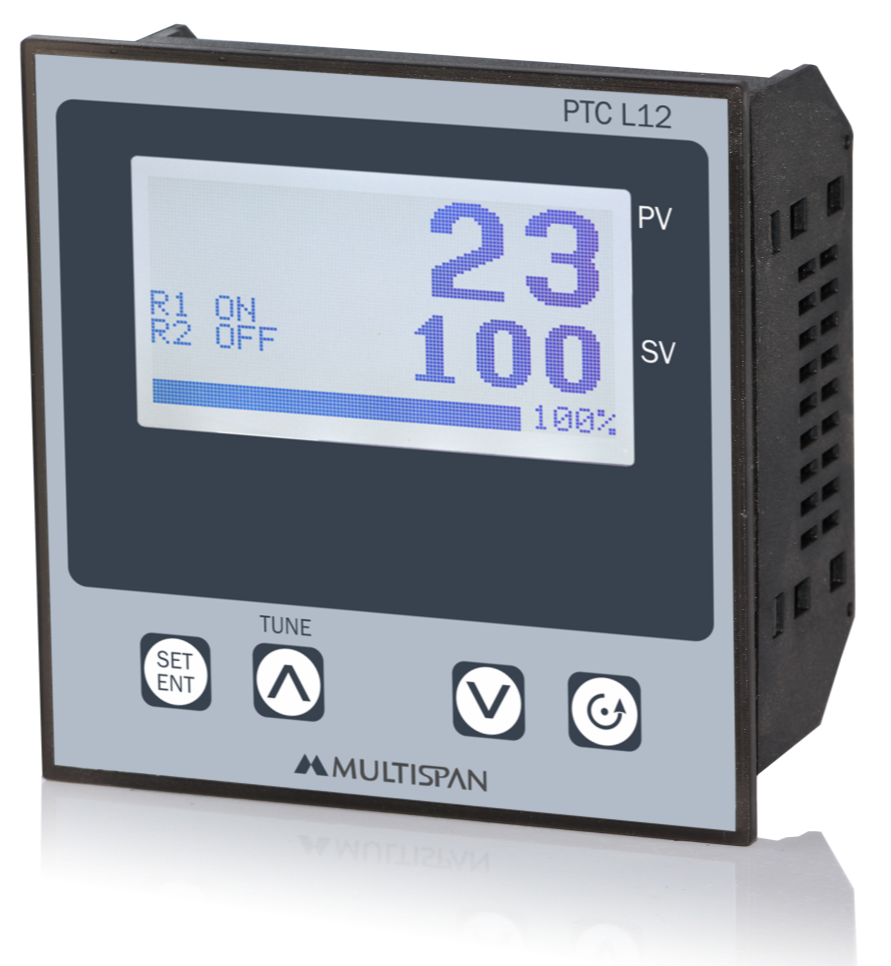

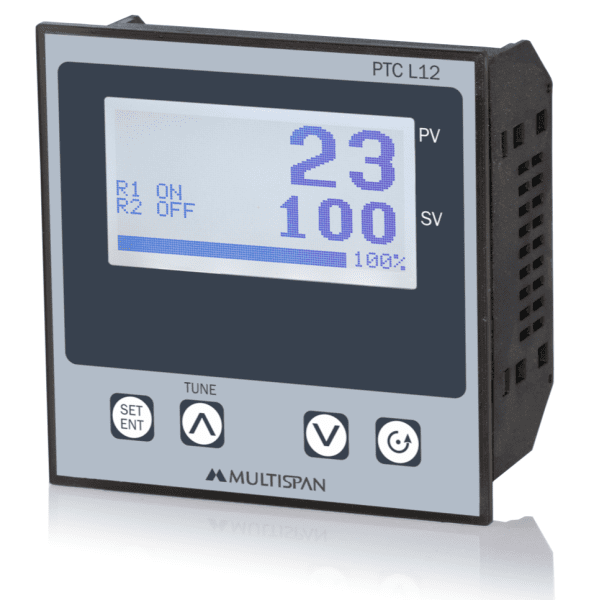

PTC-L12/PTC-1202 Universal Input PID Controller with Analog Output & Modbus (96x96x54 mm) – Multispan
Key Features:
- Universal Input: Supports thermocouples (J, K, T, E, R, S, B, N), RTDs (PT100, PT1000), and analog signals (0-20mA, 4-20mA, 0-5V, 1-5V).
- PID Control: Advanced PID algorithm for precise temperature and process control.
- Analog Output: Configurable 0-20mA or 4-20mA output for seamless integration.
- Modbus RTU: RS-485 communication for remote monitoring and control.
- Compact Design: 96x96x54 mm panel-mount size for space-efficient installation.
- Dual Display: Bright LED/LCD screen for real-time PV (Process Variable) and SV (Set Value) monitoring.
- Alarm Function: Configurable high/low alarms with relay output.
- Auto-Tuning: Self-tuning PID for optimal performance.
- Rugged Construction: Industrial-grade durability for harsh environments.
Applications:
- Industrial heating systems
- Plastic extrusion & injection molding
- Packaging machinery
- HVAC control
- Laboratory equipment
Technical Specifications:
| Model | PTC-L12 / PTC-1202 |
|---|---|
| Input Types | Thermocouples, RTDs, Analog Signals |
| Output | Analog (0-20mA/4-20mA), Relay (Optional) |
| Communication | Modbus RTU (RS-485) |
| Power Supply | 100-240V AC/DC |
| Dimensions | 96 x 96 x 54 mm |
| Mounting | Panel Mount |
| Brand | Multispan |
Why Buy From MyElectric.in?
- Genuine Multispan product with warranty
- Free technical support
- Fast shipping across India
- Secure payment options
Note: Includes user manual and calibration certificate.
