-45%Sold out
html

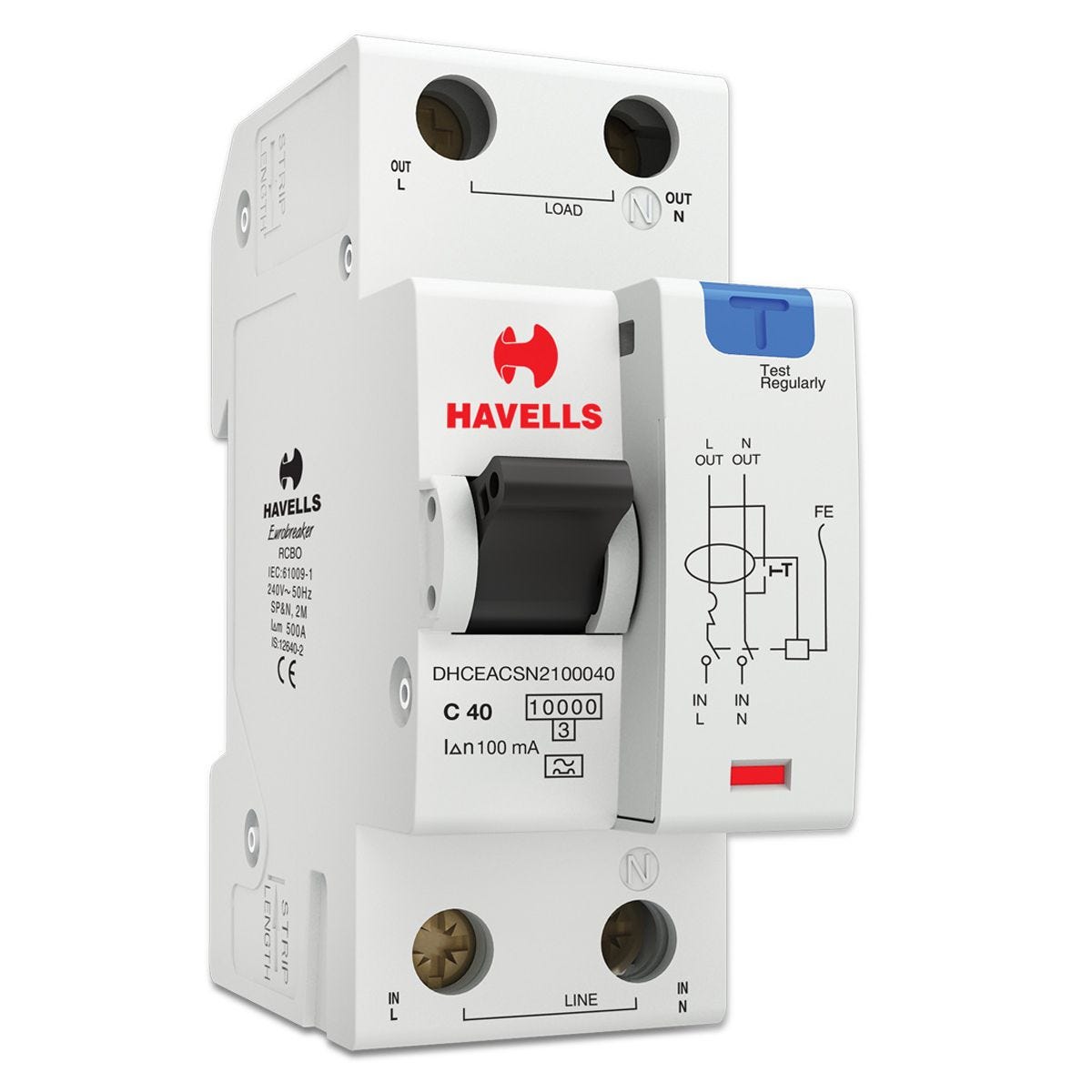

Havells Type ‘A’ RCBO SPN 2M 100mA 40A (DHCEACSN2100040)
Key Features:
- Type: ‘A’ (Detects both AC & pulsating DC residual currents)
- Poles: Single Pole + Neutral (SPN)
- Sensitivity: 100mA (High protection against leakage currents)
- Current Rating: 40A (Suitable for heavy load circuits)
- Modular Width: 2 Module (Compact design saves space in DB)
- Breaking Capacity: 10kA (High short-circuit protection)
- Voltage Rating: 230V AC (Standard household/industrial use)
- Trip Mechanism: Thermal-Magnetic (Overload & short-circuit protection)
- Standards: Complies with IEC/IS 61009-1
- Brand: Havells (Premium quality electrical components)
Applications:
- Ideal for circuits with electronic equipment (Inverters, VFDs, UPS systems)
- Protects against electric shocks and fire hazards
- Suitable for residential, commercial and industrial installations
- Recommended for circuits with mixed loads (AC/DC components)
Technical Specifications:
| Parameter | Specification |
|---|---|
| Product Code | DHCEACSN2100040 |
| Type | A |
| Number of Poles | 1P+N (SPN) |
| Rated Current | 40A |
| Rated Residual Current | 100mA |
| Rated Voltage | 230V AC |
| Breaking Capacity | 10kA |
| Operating Temperature | -25°C to +55°C |
| Mounting | DIN Rail (35mm) |
| Module Size | 2 Module (36mm) |
| Standards | IEC/IS 61009-1 |
Why Choose Havells RCBO?
- Advanced protection against electrical hazards
- Durable construction with high-quality materials
- Precise tripping mechanism for reliable operation
- Easy installation with clear markings
- Trusted brand with excellent after-sales support
Package Contents:
- 1 x Havells Type A RCBO 40A 100mA
- Installation manual
Note: For optimal performance, we recommend installation by a certified electrician.
