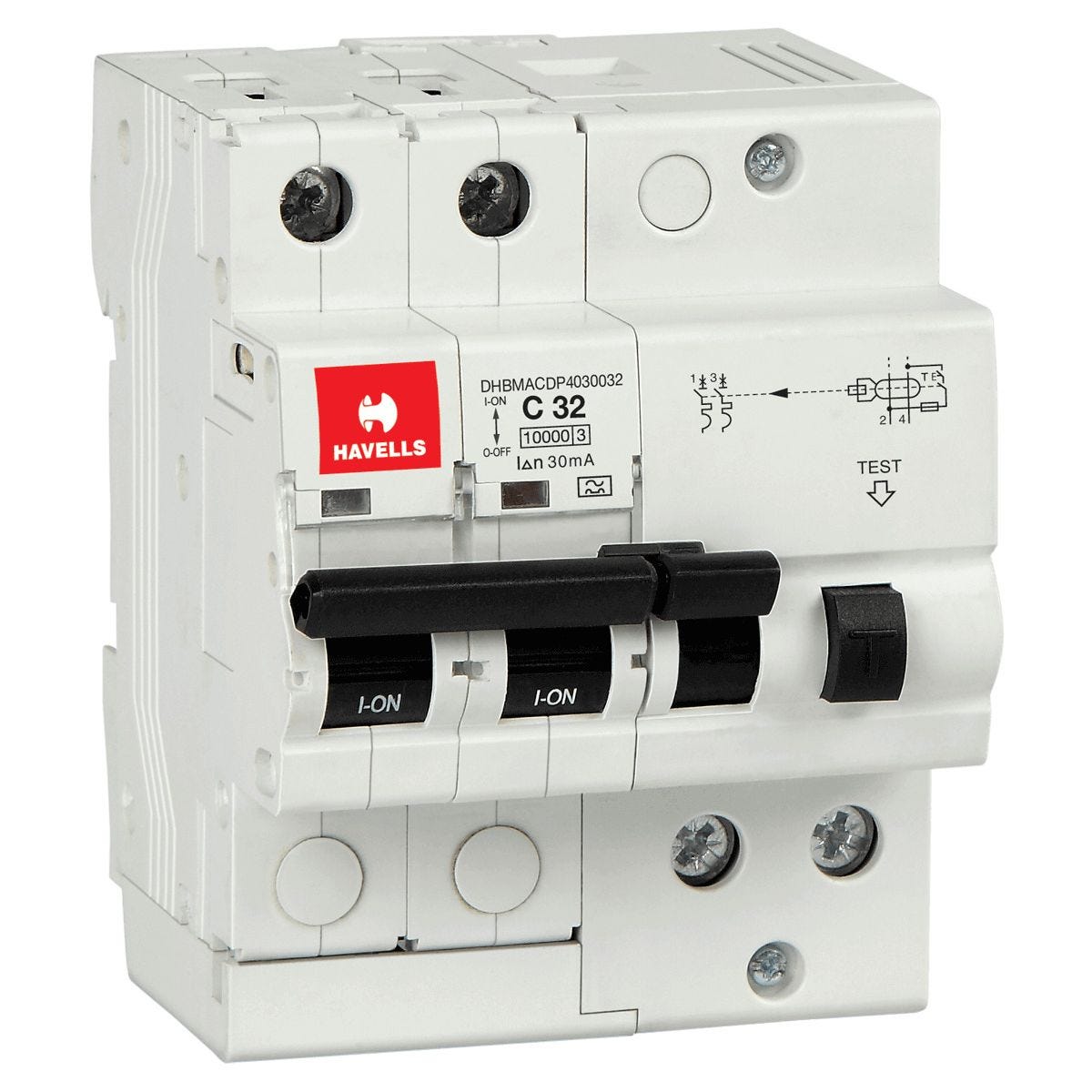

RCBO ?A? Type SPN & 2M 30 mA – 32 A Havells | DHBMACDP4030032

Name: Havells 32A 30mA Type A RCBO | DHBMACDP4030032
Brand: Havells
SKU: DHBMACDP4030032
Price: 3179.00 INR
Availability: OutOfStock

SKU: DHBMACDP4030032

Original price was: ₹6,358.00.Current price is: ₹3,179.00. Excl. GST

Out of stock

18 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Sourced through authorised channels, the 32 A Havells | DHBMACDP4030032 DHBMACDP4030032 rcbo delivers dependable performance for reliable circuit protection and isolation. Key ratings include 32 A, 1 Pole. myelectric.in stocks the RCBO ?A? Type SPN & 2M 30 mA for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Parameter	Value
Brand	32 A Havells \| DHBMACDP4030032
Part Number / SKU	DHBMACDP4030032
Category	RCBO
Current Rating	32 A
Poles	1 Pole
Sensitivity	30 mA
Rated Voltage	230V AC
Rated Frequency	50 Hz
Max Break Time	≤ 300 ms at rated IΔn (per IEC 61009-1)
RCD Type	Type AC (sinusoidal AC sensitive)
Protection Functions	Overload + short-circuit + earth leakage (combined)
Mounting	35mm DIN rail (EN 60715)
Standard	IEC 61009 / IS 12640-2
Certifications	BIS certified where applicable

⚡ Key Features

32 A current rating with combined overload + short-circuit + earth-leakage protection in one device — complete circuit protection without a separate MCB and RCCB.
30 mA individual earth-leakage protection — an earth fault on this circuit trips only this RCBO; other circuits in the board remain energised, unlike a shared RCCB which disconnects all.
1 Pole — designed for single-phase final circuits in consumer units and small distribution boards.
Single DIN rail module — same 17.5mm or 1P width as a standard MCB; maximises the number of protected circuits in a fixed enclosure size.
Manufactured to IEC 61009 / IS 12640-2 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified where applicable — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised 32 A Havells | DHBMACDP4030032 product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: What load can the DHBMACDP4030032 protect at its rated 32 A?

A: The DHBMACDP4030032 is rated to carry and protect circuits up to 32 A continuously. For motor loads, ensure the full-load current (FLC) of the motor does not exceed this rating. For resistive loads (heaters, lighting), the 32 A rating is used directly. Derate by 20% for ambient temperatures above 40°C.

Q: Why is the 30 mA sensitivity specified on the DHBMACDP4030032 and when should you choose a different rating?

A: 30 mA is the residual current at which the DHBMACDP4030032 will trip within 300ms. A 30mA sensitivity provides additional shock protection (mandatory for socket circuits per IS 732). 100mA is used for fire protection (no shock protection). 300mA protects feeders without nuisance tripping. Choose based on the circuit’s risk profile — never use >30mA for socket outlet circuits in wet or high-risk locations.

Q: What is the difference between an RCBO and a standard MCB — and why use the DHBMACDP4030032?

A: A standard MCB protects against overload and short-circuit only. An RCBO combines MCB overcurrent/short-circuit protection AND RCCB earth leakage detection in a single 1-module device — ideal where both forms of protection are needed in limited panel space. Choose the DHBMACDP4030032 when the application specifically requires rcbo characteristics.
