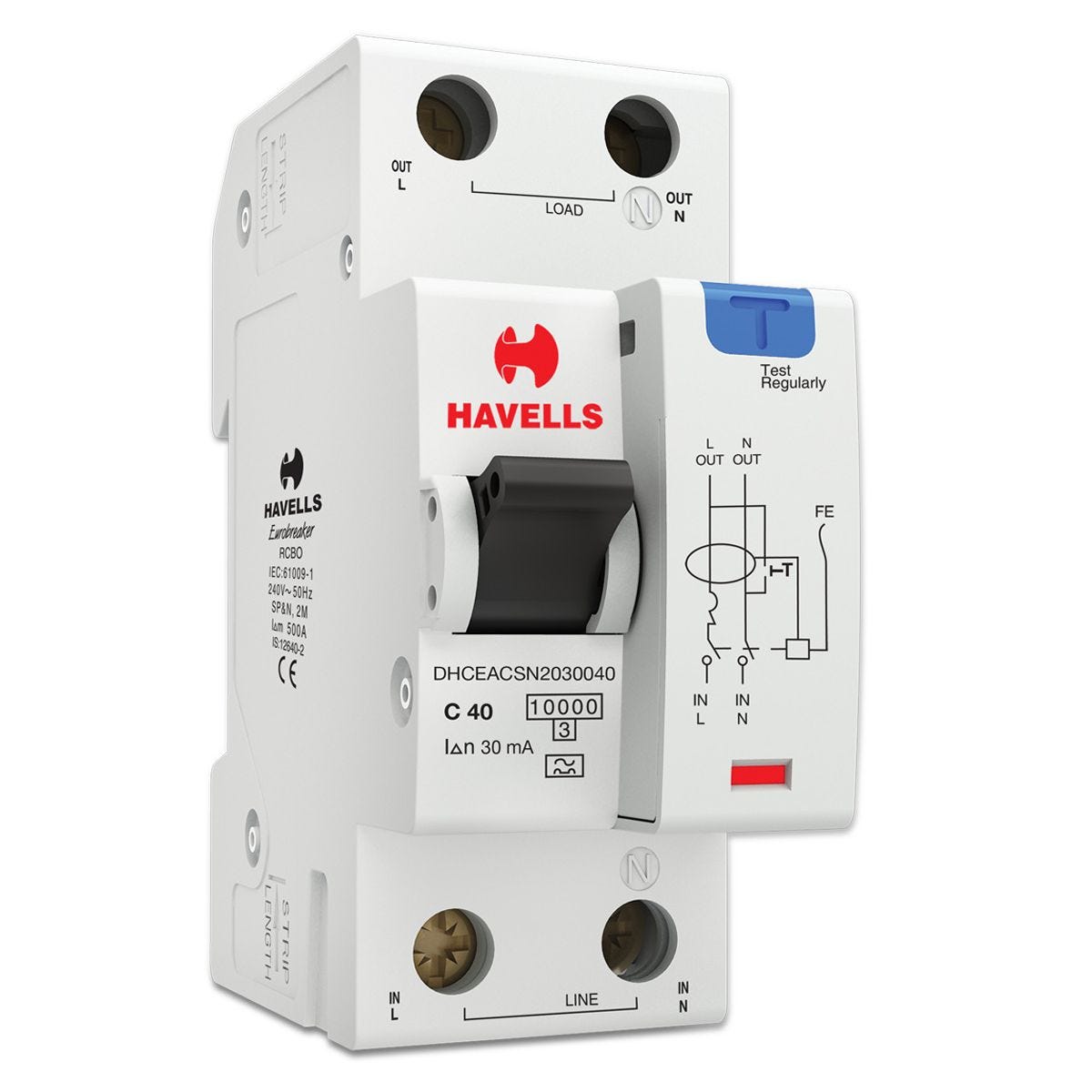

Havells DHCEACSN2030040 RCBO ‘A’ Type SPN 2M 30mA – 40A
Key Features:
- Type: ‘A’ Class RCBO (Residual Current Circuit Breaker with Overcurrent)
- Poles: Single Pole + Neutral (SPN)
- Module Width: 2 Module (2M)
- Sensitivity: 30mA (High Protection against Electric Shock)
- Current Rating: 40A
- Breaking Capacity: 6kA
- Voltage Rating: 230V AC
- Tripping Characteristics: Type C
- Brand: Havells (Premium Quality & Reliability)
- Standards: Complies with IEC/IS 61009-1
Applications:
- Protects against Residual Currents, Overload & Short Circuits
- Ideal for Residential, Commercial & Industrial Electrical Installations
- Perfect for Circuits with Mixed Loads (Lighting, Sockets, Appliances)
- Enhanced Safety for Wet Areas (Bathrooms, Kitchens, Outdoor Circuits)
Technical Specifications:
Parameter | Specification |
---|---|
Product Code | DHCEACSN2030040 |
Type | A Class |
Number of Poles | 1P+N (SPN) |
Rated Current | 40A |
Rated Residual Operating Current | 30mA |
Rated Voltage | 230V AC |
Breaking Capacity | 6kA |
Tripping Characteristics | Type C |
Mechanical Life | 10,000 Operations |
Electrical Life | 4,000 Operations |
Operating Temperature | -5°C to +40°C |
Standards | IEC/IS 61009-1 |
Why Choose Havells RCBO?
- Advanced Protection: Detects both AC & Pulsating DC Residual Currents
- Durable Design: High-Quality Materials for Long Service Life
- Easy Installation: DIN Rail Mounting (35mm Standard Rail)
- Visual Indication: Trip Status Indication Window
- Test Button: Regular Functionality Check
- Brand Assurance: Havells is India’s Leading Electrical Solutions Brand
Package Contents:
- 1 x Havells RCBO A-Type 40A 30mA SPN
- User Manual
Note: For optimal performance, installation should be done by a certified electrician.
