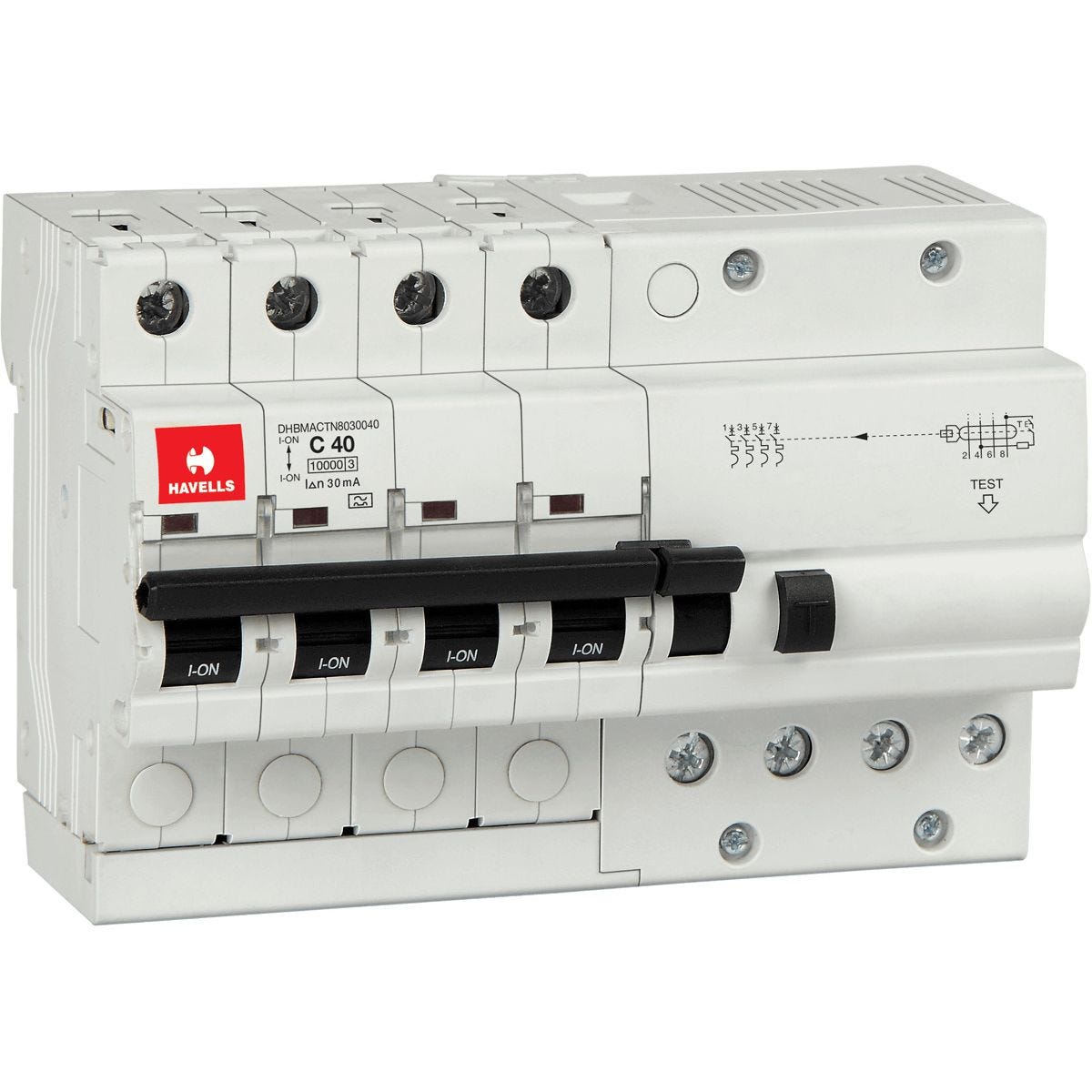

Havells DHBMACTN8030040 30mA 40A Type A TPN 4M RCBO

Key Features:

• Type: Type A RCBO (Residual Current Circuit Breaker with Overcurrent Protection)
• Poles: TPN (Triple Pole + Neutral)
• Module Width: 4 Module (4M)
• Sensitivity: 30mA (High sensitivity for personal protection)
• Rated Current: 40A
• Breaking Capacity: High breaking capacity for reliable protection
• Trip Characteristics: Type A (Detects both AC and pulsating DC residual currents)
• Brand: Havells (Premium quality electrical products)
• Mounting: DIN Rail Mounting
• Standards: Complies with IEC/IS standards

Product Description:

The Havells DHBMACTN8030040 is a Type A TPN 4M RCBO that combines overcurrent protection and earth leakage protection in a single device. With 30mA sensitivity and 40A current rating, it offers reliable protection against electrical hazards. The Type A classification makes it suitable for detecting both AC and pulsating DC residual currents, making it ideal for modern electrical installations with electronic equipment.

Applications:

• Residential electrical installations
• Commercial buildings
• Industrial applications
• Circuits with electronic equipment
• Panel boards and distribution boards

Technical Specifications:

Why Choose This RCBO?

• Havells brand reliability
• Type A protection for comprehensive safety
• Compact 4-module design saves space
• 30mA sensitivity for personal protection
• 40A current rating for robust performance
• Easy DIN rail mounting

Note: Installation should be performed by a qualified electrician as per local wiring regulations.
