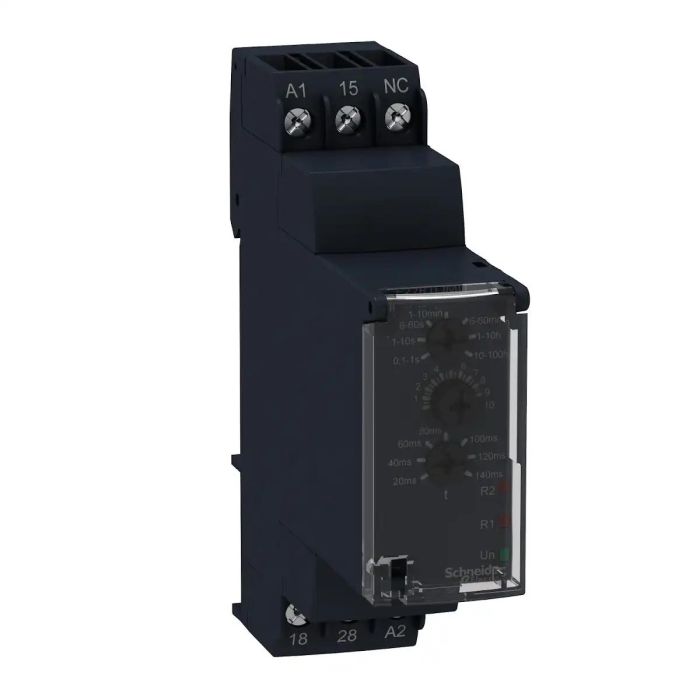

RE22R1QMU | Relay 8A 1CO 0,1s 300h delta 24V – Schneider Electric

Name: RE22R1QMU | Relay 8A 1CO 0,1s 300h delta 24V - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: RE22R1QMU
Price: 3504.74 INR
Availability: BackOrder

SKU: RE22R1QMU

Original price was: ₹7,619.00.Current price is: ₹3,504.74. Excl. GST

Dispatch By : 7 Weeks

20 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Looking for the RE22R1QMU | Relay 8A 1CO 0,1s 300h delta 24V? This genuine Schneider Electric relay from the Harmony Timer Relays range is built for motor control and switching, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 8 A, 24V AC, IP40 housing:. Order part number RE22R1QMU from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	RE22R1QMU
Category	Relay
Main
Range of product	Harmony Timer Relays
Discrete output type	Relay
Product or component type	Modular timing relay
Device short name	RE22
nominal output current	8 A
Complementary
Contacts type and composition	1 C/O timed contact
Time delay type	Star-delta
Time delay range	1…10 min 6…60 s 0.1…1 s 1…10 h 1…10 s 6…60 min 10…100 h
Control type	Rotary knob front panel
[Us] rated supply voltage	24…240 V AC 24 V DC
Voltage range	0.85…1.1 Us
Supply frequency	50…60 Hz +/- 5 %
Connections – terminals	Screw terminals, 2 x 1.5 mm² with cable end Screw terminals, 2 x 2.5 mm² without cable end
Tightening torque	0.6…1 N.m conforming to IEC 60947-1
Housing material	Polycarbonate
Repeat accuracy	+/- 0.5 % conforming to IEC 61812-1
Temperature drift	+/- 0.05 %/°C
Voltage drift	+/- 0.2 %/V
Setting accuracy of time delay	+/- 10 % of full scale at 25 °C conforming to IEC 61812-1
Time delay type	Star-delta – Q-Star-delta relay (2 NO outputs with same common)
Control signal pulse width	30 ms 100 ms under load
Insulation resistance	100 MOhm at 500 V DC conforming to IEC 60664-1
Recovery time	120 ms on de-energisation
Immunity to microbreaks	10 ms
Power consumption in VA	50 VA at 240 V AC
Power consumption in W	0.7 W at 24 V DC
breaking capacity	2000 VA
Minimum switching current	10 mA at 5 V
Maximum switching current	8 mA
Maximum switching voltage	250 V
Electrical durability	100000 cycles for resistive load, 8 A at 250 V, AC
Mechanical durability	10000000 cycles
Rated impulse withstand voltage	5 kV for 1.2…50 µs conforming to IEC 60664-1 5 kV conforming to IEC 61812-1
Power on delay	100 ms
Safety reliability data	MTTFd = 182.6 years B10d = 170000
Mounting position	Any position in relation to normal vertical mounting plane
Mounting support	35 mm DIN rail conforming to IEC 60715
Status LED	LED green (flashing) for timing in progress LED green (steady) for power ON LED yellow for relay energised
Function available	Q-Star-delta relay (2 NO outputs with same common)-1 C/O
Width	22.5 mm
Product weight	0.086 kg
Control type	With test button
Number of functions	1
Environment
Dielectric strength	2.5 kV for 1 mA/1 minute at 50 Hz conforming to IEC 61812-1
Standards	IEC 61000-6-4 IEC 61000-6-2 IEC 61000-6-3 IEC 61000-6-1 IEC 61812-1
Directives	2006/95/EC – low voltage directive 2004/108/EC – electromagnetic compatibility
Product certifications	CSA EAC RCM CE CCC GL cULus
Ambient air temperature for operation	-20…60 °C
Ambient air temperature for storage	-30…60 °C
IP degree of protection	IP40 housing: conforming to IEC 60529 IP20 terminal block: conforming to IEC 60529 IP40 front face: conforming to IEC 60529
Vibration resistance	20 m/s² (f= 10…150 Hz) conforming to IEC 60068-2-6
Shock resistance	15 gn for 11 ms conforming to IEC 60068-2-27
Relative humidity	93 %, without condensation conforming to IEC 60068-2-30
Electromagnetic compatibility	Electrostatic discharge immunity test – test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 Electrostatic discharge immunity test – test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 Fast transients immunity test – test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4 Fast transients immunity test – test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4 Surge immunity test – test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5 Surge immunity test – test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5 Radiated radio-frequency electromagnetic field immunity test – test level: 10 V level 3 (0.15…80 MHz) conforming to IEC 61000-4-6 Electromagnetic field immunity test – test level: 10 V/m level 3 (80 MHz…1 GHz) conforming to IEC 61000-4-3 Immunity to microbreaks and voltage drops – test level: 30 % (500 ms) conforming to IEC 61000-4-11 Immunity to microbreaks and voltage drops – test level: 100 % (20 ms) conforming to IEC 61000-4-11 Conducted and radiated emissions class B conforming to EN 55022
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.6 cm
Package 1 Width	8.2 cm
Package 1 Length	9.6 cm
Package 1 Weight	98.0 g
Unit Type of Package 2	S02
Number of Units in Package 2	40
Package 2 Height	15.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	4.309 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

1 CO (Changeover) contact arrangement — all contacts independently switchable up to the contact voltage rating.
Manufactured to IEC 60947-5-1 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

RENF22R2MMW

❓ Frequently Asked Questions

Q: What is the significance of the 8 A rating on the RE22R1QMU?

A: The 8 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.

Q: What does the 1 CO (Changeover) contact configuration on the RE22R1QMU mean?

A: CO (Change Over) contacts switch between two circuits — the common terminal connects to either NO or NC depending on the device state. Used for dual-purpose indication or reversing circuits.

Q: Can the RE22R1QMU relay be mounted on a DIN rail socket for easy replacement?

A: This Schneider Electric relay typically requires direct panel or DIN rail wiring. For applications requiring frequent relay replacement, consider the plug-in relay variant of this series with a matching socket base.

Q: How do I test the RE22R1QMU relay in the field without a signal source?

A: Most Schneider Electric relays can be manually forced using the test button (if fitted) — this mechanically closes the relay contacts without energising the coil, allowing functional testing of the controlled circuit. For coil testing, use a multimeter to measure coil resistance (typically 500–2000Ω for AC coils at rated voltage) and compare with datasheet values.
