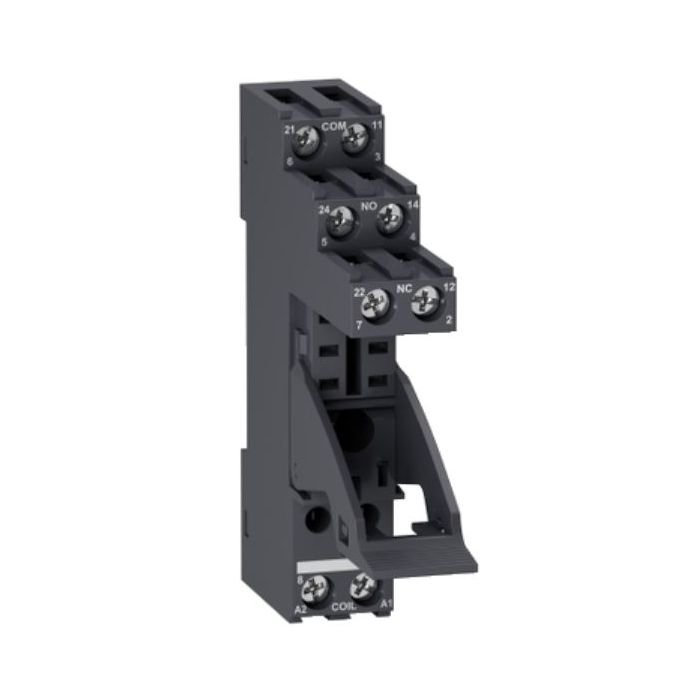

RGZE1S48M | Zelio Relay,2Co Separate Terminal Socket With Clamp – Schneider Electric

Name: RGZE1S48M | Zelio Relay,2Co Separate Terminal Socket With Clamp - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: RGZE1S48M
Price: 217.12 INR
Availability: BackOrder

SKU: RGZE1S48M

Original price was: ₹472.00.Current price is: ₹217.12. Excl. GST

Dispatch By : 1 Weeks

12 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-54%

RXG25P7 | Zelio Relay,2Co 5A Relay Clear 230Vac – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: RXG25P7

-54%

RXG23BD | Zelio Relay,2Co 5A Relay-Ltb+Led 24Vdc – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: RXG23BD

-54%

RXG21JD | Zelio Relay,2Co 5A Relay +Ltb-Led 12Vdc – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: RXG21JD

Looking for the RGZE1S48M | Zelio Relay,2Co Separate Terminal Socket With Clamp? This genuine Schneider Electric relay socket from the Harmony Electromechanical Relays range is built for motor control and switching, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 250 V, IP20. Order part number RGZE1S48M from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	RGZE1S48M
Category	Relay Socket
Main
Range of product	Harmony Electromechanical Relays
Product or component type	Socket
Product compatibility	Plug-in relay RXG with 2 C/O contact
Contacts type and composition	2 C/O
[Ui] rated insulation voltage	250 V
Complementary
[Uimp] rated impulse withstand voltage	6 kV between coil and contact with reinforced insulation 4 kV between poles with basic insulation 4 kV between terminals and DIN rail with basic insulation
[Ue] rated operational voltage	250 V conforming to IEC 300 V conforming to UL
Dielectric strength	5 kV between coil and contact with reinforced insulation 3 kV between poles with basic insulation 3 kV between terminals and DIN rail with basic insulation
Connections – terminals	Screw terminals, 1 x 0.34…1 x 2.5 mm² (AWG 22…AWG 14) flexible with cable end Screw terminals, 2 x 0.34…2 x 1 mm² (AWG 22…AWG 17) flexible with cable end Screw terminals, 2 x 0.5…2 x 1.5 mm² (AWG 20…AWG 16) solid without cable end Screw terminals, 1 x 0.5…1 x 2.5 mm² (AWG 20…AWG 14) solid without cable end
Fixing mode	Screw (panel) Clip-on (35 mm symmetrical DIN rail)
Wire stripping length	6…7 mm
Contact terminal arrangement	Separate
screw type	M3
Overvoltage category	III
Pollution degree	3
Environment
Standards	CSA C22.2 No 14 IEC 61984 UL 508
Product certifications	EAC CE CSA UL DNV-GL
Ambient air temperature for storage	-40…85 °C
Ambient air temperature for operation	-40…70 °C
IP degree of protection	IP20
Relative humidity	10…85 %
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	1.600 cm
Package 1 Width	6.800 cm
Package 1 Length	7.900 cm
Package 1 Weight	40.000 g
Unit Type of Package 2	BB1
Number of Units in Package 2	10
Package 2 Height	8.500 cm
Package 2 Width	8.600 cm
Package 2 Length	16.500 cm
Package 2 Weight	444.000 g
Unit Type of Package 3	S03
Number of Units in Package 3	180
Package 3 Height	30.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	8.544 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

2 CO (Changeover) contact arrangement — all contacts independently switchable up to the contact voltage rating.
Manufactured to IEC 60947-5-1 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

RXG25P7RXG23BDRXG21JDRSZL300

❓ Frequently Asked Questions

Q: What does the 2 CO (Changeover) contact configuration on the RGZE1S48M mean?

A: CO (Change Over) contacts switch between two circuits — the common terminal connects to either NO or NC depending on the device state. Used for dual-purpose indication or reversing circuits.

Q: How do I test the RGZE1S48M relay in the field without a signal source?

A: Most Schneider Electric relays can be manually forced using the test button (if fitted) — this mechanically closes the relay contacts without energising the coil, allowing functional testing of the controlled circuit. For coil testing, use a multimeter to measure coil resistance (typically 500–2000Ω for AC coils at rated voltage) and compare with datasheet values.

Q: Can the RGZE1S48M relay be mounted on a DIN rail socket for easy replacement?

A: Yes. The RGZE1S48M is a plug-in relay designed for use with a matching relay socket (check RXZ or equivalent series), enabling tool-free relay replacement without disturbing control wiring. Label the socket wiring clearly to enable fast field replacement.
