RPM22F7 | Power Plug-In Relay, 15 A, 2 Co, With Led, 120 V Ac – Schneider Electric

Name: RPM22F7 | Power Plug-In Relay, 15 A, 2 Co, With Led, 120 V Ac - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: RPM22F7
Price: 1019.36 INR
Availability: BackOrder

SKU: RPM22F7

Original price was: ₹2,216.00.Current price is: ₹1,019.36. Excl. GST

Dispatch By : 15 Weeks

20 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-54%

RPZF2 | Relay socket mix 16A 250V RPM2 relays – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: RPZF2

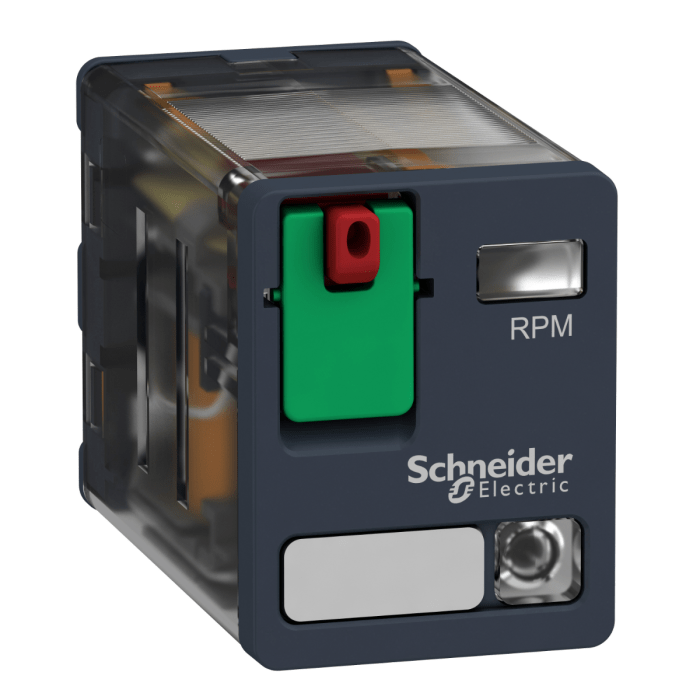

Looking for the RPM22F7 | Power Plug-In Relay, 15 A, 2 Co, With Led, 120 V Ac? This genuine Schneider Electric relay from the Harmony Electromechanical Relays range is built for motor control and switching, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 15 A at 277 V, 96…132 V AC, IP40. Order part number RPM22F7 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	RPM22F7
Category	Relay
Main
Range of product	Harmony Electromechanical Relays
Series name	RPM series
Product or component type	Plug-in relay
Contacts type and composition	2 C/O
Relay type	Power relay
status LED	With
[Uc] control circuit voltage	120 V AC 50/60 Hz
Minimum switching capacity	170 mW at 10 mA, 17 V
Release time	20 ms at nominal voltage
Ambient air temperature for operation	-40…55 °C
[Ithe] conventional enclosed thermal current	15 A at -40…55 °C
Complementary
Control type	Lockable test button
[Ie] rated operational current	15 A at 277 V (AC) conforming to UL 15 A at 28 V (DC) conforming to UL 15 A at 250 V (AC) NO conforming to IEC 15 A at 28 V (DC) NO conforming to IEC 7.5 A at 250 V (AC) NC conforming to IEC 7.5 A at 28 V (DC) NC conforming to IEC
Degree of protection (Housing only)	IP40 conforming to IEC 60529
Rated operational voltage limits	96…132 V AC
[Ui] rated insulation voltage	250 V conforming to IEC 300 V conforming to CSA 300 V conforming to UL
Maximum switching voltage	250 V conforming to IEC
Drop-out voltage threshold	>= 0.15 Uc AC
Average resistance	4430 Ohm at 20 °C +/- 15 %
Maximum switching capacity	3750 VA 420 W
Load current	15 A at 250 V AC 15 A at 28 V DC
Operating time	20 ms at nominal voltage
Mechanical durability	10000000 cycles
Electrical durability	100000 cycles for resistive load
Safety reliability data	B10d = 100000
Operating rate	<= 1200 cycles/hour under load <= 18000 cycles/hour no-load
Utilisation coefficient	20 %
Dielectric strength	1500 V AC between contacts with micro disconnection 2000 V AC between coil and contact with reinforced 2000 V AC between poles with basic
[Uimp] rated impulse withstand voltage	4 kV during 1.2/50 µs
Protection category	RT I
Mounting support	Plug-in
Operating position	Any position
Test levels	Level A group mounting
Device presentation	Complete product
Contacts material	AgNi
Shape of pin	Flat (faston type)
Product weight	0.036 kg
Environment
Average coil consumption in VA	1.1 at 60 Hz
Pollution degree	3
Standards	CSA C22.2 No 14 IEC 61810-1 UL 508
Product certifications	EAC CSA UL
Ambient air temperature for storage	-40…85 °C
Vibration resistance	3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating
Shock resistance	15 gn for in operation 30 gn for not operating
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	4.826 cm
Package 1 Width	2.032 cm
Package 1 Length	2.794 cm
Package 1 Weight	40.506 g
Unit Type of Package 2	BB1
Number of Units in Package 2	10
Package 2 Height	3.810 cm
Package 2 Width	10.160 cm
Package 2 Length	11.684 cm
Package 2 Weight	399.161 g
Unit Type of Package 3	CAR
Number of Units in Package 3	240
Package 3 Height	15.240 cm
Package 3 Width	30.480 cm
Package 3 Length	41.910 cm
Package 3 Weight	10.133 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

2 CO (Changeover) contact arrangement — all contacts independently switchable up to the contact voltage rating.
Plug-in format — drop-in replacement into standard relay socket base; all wiring connects to socket terminals and remains intact when the relay body is removed for testing or replacement.
Manufactured to IEC 60947-5-1 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

RPZF2

❓ Frequently Asked Questions

Q: What is the significance of the 15 A rating on the RPM22F7?

A: The 15 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.

Q: What does the 2 CO (Changeover) contact configuration on the RPM22F7 mean?

A: CO (Change Over) contacts switch between two circuits — the common terminal connects to either NO or NC depending on the device state. Used for dual-purpose indication or reversing circuits.

Q: How do I test the RPM22F7 relay in the field without a signal source?

A: Most Schneider Electric relays can be manually forced using the test button (if fitted) — this mechanically closes the relay contacts without energising the coil, allowing functional testing of the controlled circuit. For coil testing, use a multimeter to measure coil resistance (typically 500–2000Ω for AC coils at rated voltage) and compare with datasheet values.

Q: Can the RPM22F7 relay be mounted on a DIN rail socket for easy replacement?

A: Yes. The RPM22F7 is a plug-in relay designed for use with a matching relay socket (check RXZ or equivalent series), enabling tool-free relay replacement without disturbing control wiring. Label the socket wiring clearly to enable fast field replacement.
