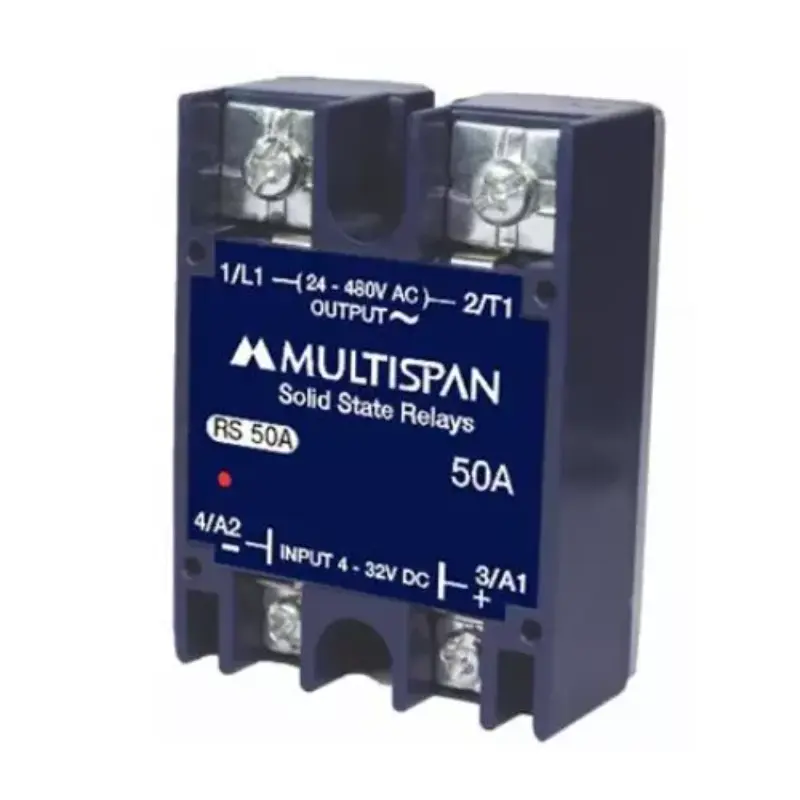

RS-50A SSR 62 X 45 X 25 MULTISPAN Solid State Relay
Key Features:
- Model: RS-50A SSR
- Dimensions: 62mm x 45mm x 25mm (L x W x H)
- Load Current: 50A
- Input Voltage: 3-32V DC
- Output Voltage: 24-480V AC
- Zero Cross Function: Yes
- Material: High-grade flame-retardant plastic
- Mounting Type: Screw or DIN rail mounting
- LED Indicator: Input status display
Applications:
- Industrial automation systems
- Temperature control devices
- Motor control applications
- Lighting control systems
- HVAC equipment
- Power distribution units
Technical Specifications:
| Parameter | Value |
|---|---|
| Max Load Current | 50A |
| Max Load Voltage | 480V AC |
| Control Voltage | 3-32V DC |
| Leakage Current | <2mA |
| Ambient Temperature | -30°C to +80°C |
| Isolation Voltage | 2500V AC |
Package Includes:
- 1 x RS-50A SSR Relay
- Mounting accessories
- User manual
Why Choose Our SSR?
- High reliability and long service life
- No moving parts – silent operation
- Fast switching with no arcing
- Low power consumption
- Compact design for space-saving installation
Safety Information:
- Installation should be performed by qualified personnel
- Ensure proper heat dissipation for optimal performance
- Do not exceed maximum ratings
- Disconnect power before installation or maintenance
