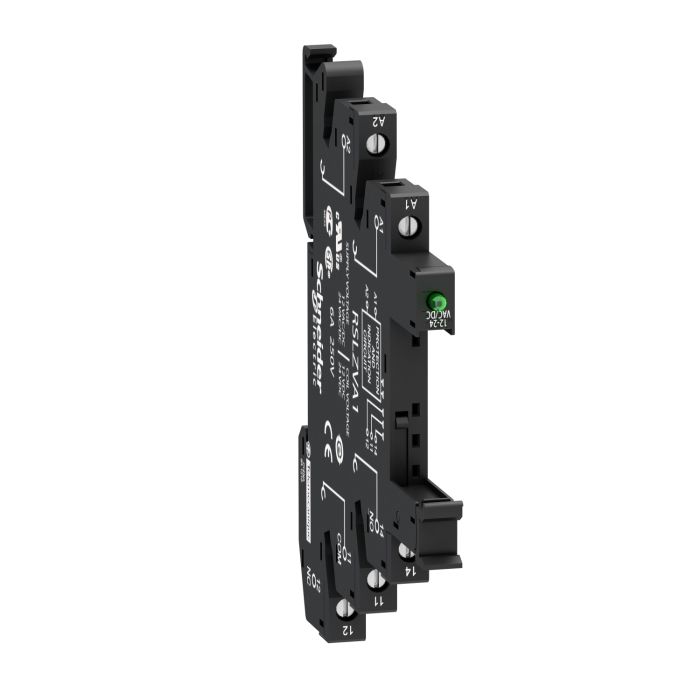

RSLZVA1 | Zelio Relay,Separated Socket Led 12-24Vac/Dc Screw – Schneider Electric

Name: RSLZVA1 | Zelio Relay,Separated Socket Led 12-24Vac/Dc Screw - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: RSLZVA1
Price: 753.94 INR
Availability: BackOrder

SKU: RSLZVA1

Original price was: ₹1,639.00.Current price is: ₹753.94. Excl. GST

Dispatch By : 7 Weeks

18 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-54%

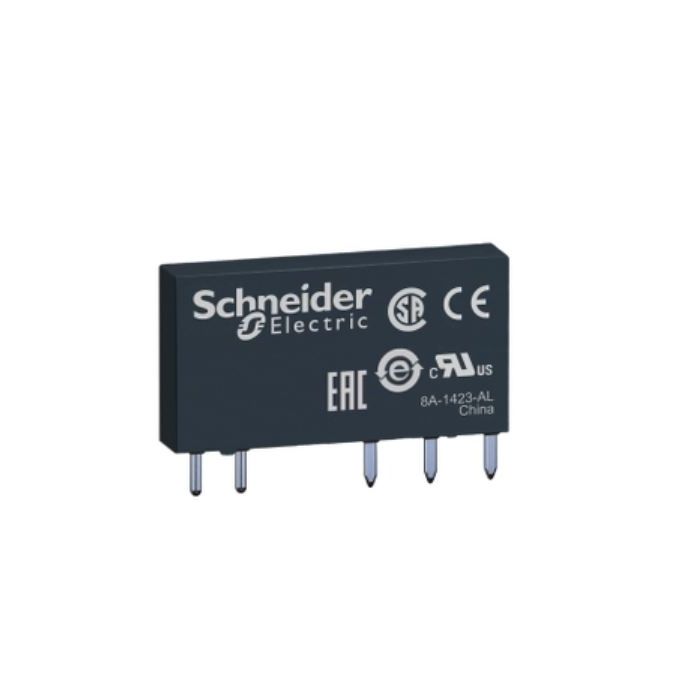

RSL1AB4JD | Zelio Relay,Slim Relay 1C/O 6A 12 Vdc – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: RSL1AB4JD

-54%

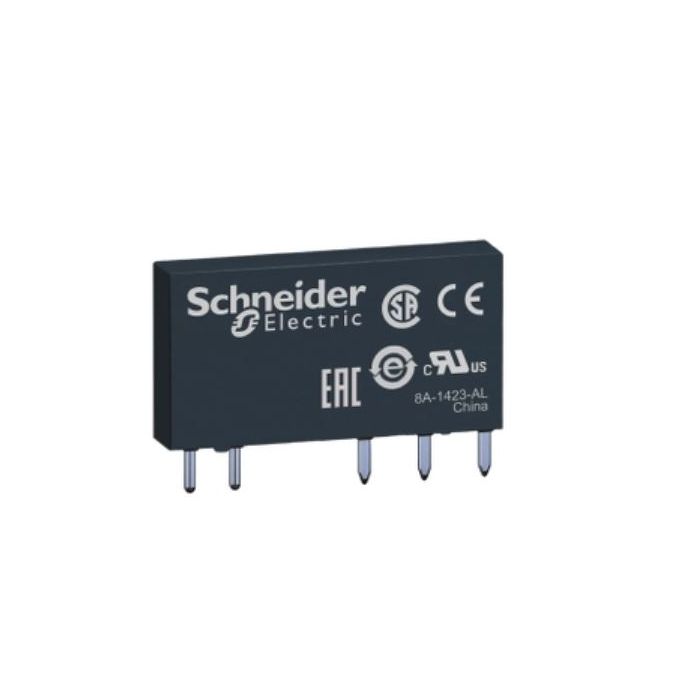

RSL1AB4BD | Zelio Relay,Slim Relay 1C/O 6A 24 Vdc – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: RSL1AB4BD

-54%

RSLZ5 | Zelio Relay,128 Blank Labels For Rslz Socket – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: RSLZ5

-54%

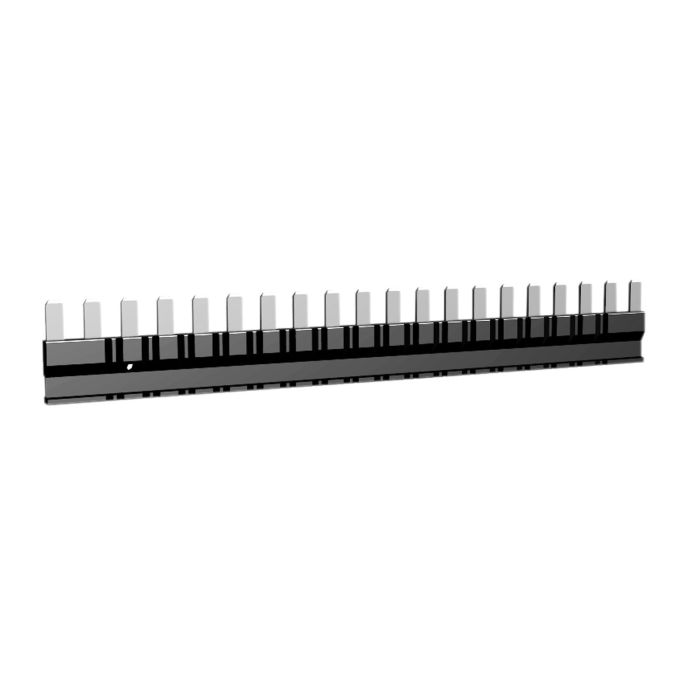

RSLZ2 | Zelio Relay,Bus Jumper 20 Poles For Rslz Socket – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: RSLZ2

-54%

RSLZ3 | Zelio Relay,Butterfly Isolator For Rslz Socket – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: RSLZ3

Looking for the RSLZVA1 | Zelio Relay,Separated Socket Led 12-24Vac/Dc Screw? This genuine Schneider Electric relay socket from the Harmony Electromechanical Relays range is built for motor control and switching, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 11.4…14.4 V, IP20. Order part number RSLZVA1 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	RSLZVA1
Category	Relay Socket
Main
Range of product	Harmony Electromechanical Relays
Device short name	RSLZ
Product or component type	Socket
Device presentation	Basic element
Product compatibility	Plug-in relay RSL with 1 C/O contact at 12 V DC Plug-in relay RSL with 1 C/O contact at 24 V DC
Contacts type and composition	1 C/O
[Ith] conventional free air thermal current	6 A
Switching voltage	12 V AC/DC 24 V AC/DC
Rated operational voltage limits	11.4…14.4 V 21.6…28.8 V
[Ue] rated operational voltage	< 300 V AC
Complementary
Group of product	RSL_CON_12-24
Shape of pin	Flat
Contact terminal arrangement	Separate
Connections – terminals	Connector, 1 x 0.2…1 x 2.5 mm² (AWG 24…AWG 14) flexible with cable end Connector, 1 x 0.2…1 x 2.5 mm² (AWG 24…AWG 14) solid without cable end
Compatibility code	RSLZ
Tightening torque	< 0.4 N.m for M2.5 screw(s)
Fixing mode	Plastic compression spring (35 mm symmetrical DIN rail)
[Uimp] rated impulse withstand voltage	3.6 kV
Overvoltage category	III
Pollution degree	3
Sale per indivisible quantity	10
CAD overall width	6.2 mm
CAD overall height	78.6 mm
CAD overall depth	95 mm
Product weight	0.023 kg
Environment
IP degree of protection	IP20 conforming to IEC 60529
Standards	IEC 61984 UL 508
Product certifications	CSA GOST
Marking	CE
Ambient air temperature for storage	-40…85 °C
Ambient air temperature for operation	-40…70 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	8.500 cm
Package 1 Width	7.200 cm
Package 1 Length	5.400 cm
Package 1 Weight	23.000 g
Unit Type of Package 2	BB1
Number of Units in Package 2	10
Package 2 Height	8.500 cm
Package 2 Width	7.200 cm
Package 2 Length	10.800 cm
Package 2 Weight	259.000 g
Unit Type of Package 3	S03
Number of Units in Package 3	300
Package 3 Height	30.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	8.395 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Manufactured to IEC 60947-5-1 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

RSL1AB4JDRSL1AB4BDRSLZ5RSLZ2RSLZ3

❓ Frequently Asked Questions

Q: How do I test the RSLZVA1 relay in the field without a signal source?

A: Most Schneider Electric relays can be manually forced using the test button (if fitted) — this mechanically closes the relay contacts without energising the coil, allowing functional testing of the controlled circuit. For coil testing, use a multimeter to measure coil resistance (typically 500–2000Ω for AC coils at rated voltage) and compare with datasheet values.

Q: Can the RSLZVA1 relay be mounted on a DIN rail socket for easy replacement?

A: Yes. The RSLZVA1 is a plug-in relay designed for use with a matching relay socket (check RXZ or equivalent series), enabling tool-free relay replacement without disturbing control wiring. Label the socket wiring clearly to enable fast field replacement.
