RXZE2S114M | SEPARATED CONN SOCKET FOR RXM2/4 – Schneider Electric
₹578.00 Excl. GST
Dispatch By : 2 Weeks
Dispatch By : 2 Weeks
11
People watching this product now!
Order protection
Buy with complete confidence.
We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included
Dedicated account manager
Technical support
Bulk & business pricing
3-day replacement
Additional Addons/Accessories
-45%

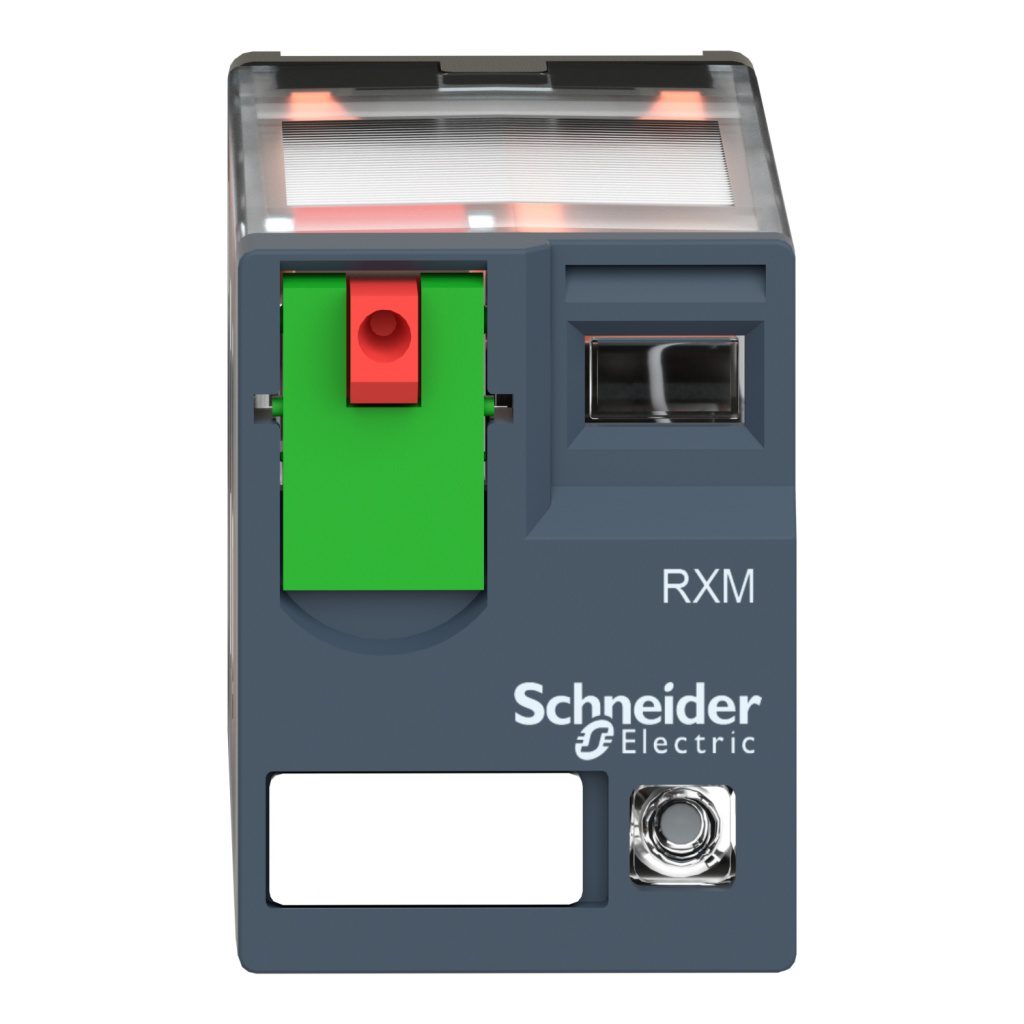

RXM4AB2P7 | Miniature plug-in relay, 6 A, 4 CO, LED, 230 V AC – Schneider Electric
Original price was: ₹1,265.00.₹695.75Current price is: ₹695.75. Excl. GST
SKU:
RXM4AB2P7
-45%

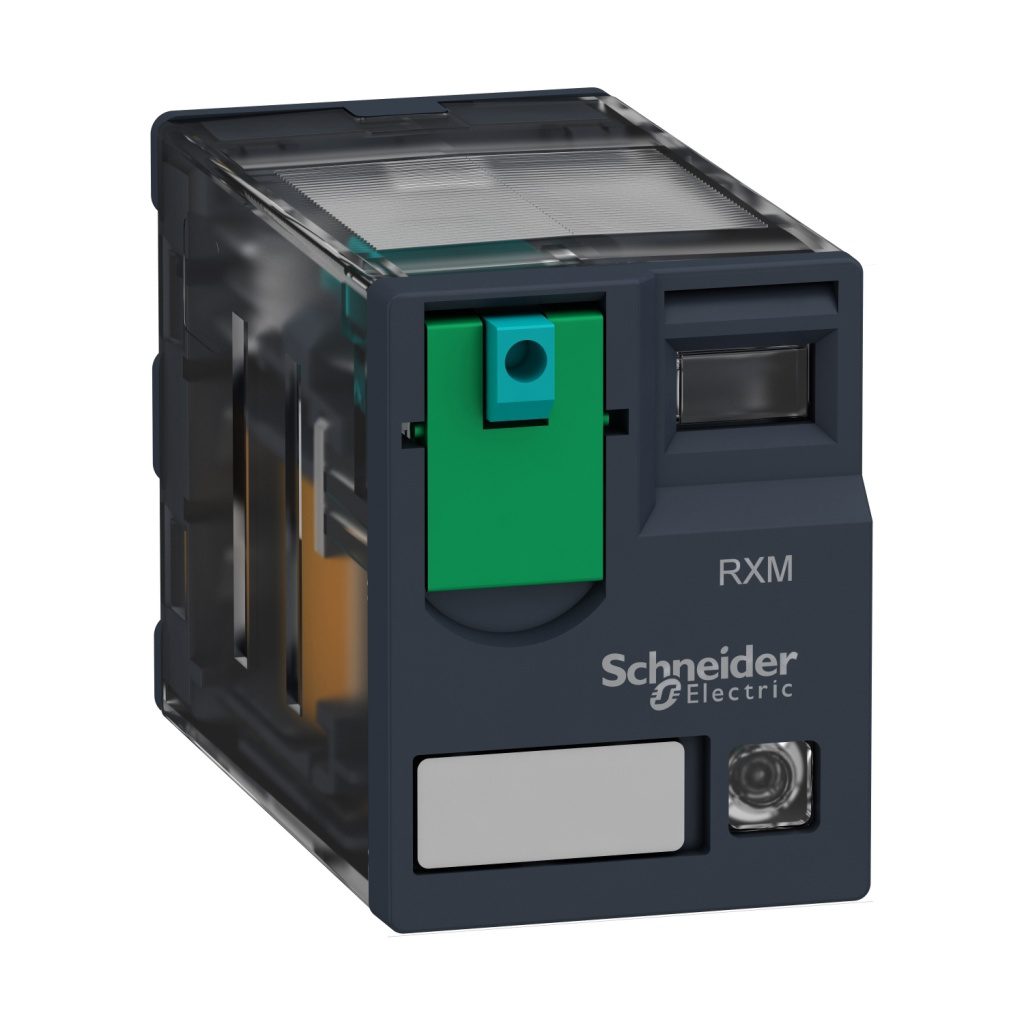

RXM4AB2BD | Miniature plug-in relay, 6 A, 4 CO, LED, 24 V DC – Schneider Electric
Original price was: ₹1,240.00.₹682.00Current price is: ₹682.00. Excl. GST
SKU:
RXM4AB2BD
-54%
RXM4AB1BD | MINIATURE RELAY 4C/O 24VDC – Schneider Electric
Original price was: ₹1,120.00.₹515.20Current price is: ₹515.20. Excl. GST
SKU:
RXM4AB1BD
-49%
RXZR335 | Maintaining clamp RXM sockets plastic – Schneider Electric
Original price was: ₹74.00.₹37.74Current price is: ₹37.74. Excl. GST
SKU:
RXZR335
-54%
RXM4AB1E7 | Miniature Plug-In Relay, 6 A, 4 Co, 48 V Ac – Schneider Electric
Original price was: ₹1,174.00.₹540.04Current price is: ₹540.04. Excl. GST
SKU:
RXM4AB1E7
-45%
RXZ400 | metal maintaining clamp – for miniature relay socket RXZ – Schneider Electric
Original price was: ₹77.00.₹42.35Current price is: ₹42.35. Excl. GST
SKU:
RXZ400
-54%
RXM040W | DIODE 6-250VDC FOR RXZE SOCKET – Schneider Electric
Original price was: ₹219.00.₹100.74Current price is: ₹100.74. Excl. GST
SKU:
RXM040W
-54%
RXM041BN7 | Protect RC circuit RPZ RXZ sockets 24V – Schneider Electric
Original price was: ₹236.00.₹108.56Current price is: ₹108.56. Excl. GST
SKU:
RXM041BN7
-54%
RXM4AB1P7 | MINIATURE RELAY 4C/O 230VAC – Schneider Electric
Original price was: ₹1,142.00.₹525.32Current price is: ₹525.32. Excl. GST
SKU:
RXM4AB1P7

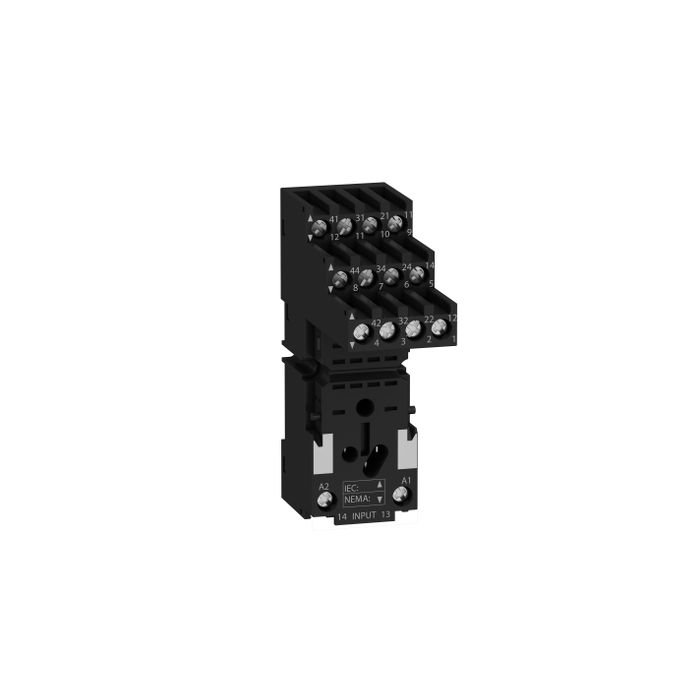

Sourced through authorised channels, the Schneider Electric RXZE2S114M power socket / outlet from the Harmony Timer Relays range delivers dependable performance for everyday wiring and control. Key ratings include < 250 V, IP20. myelectric.in stocks the RXZE2S114M | SEPARATED CONN SOCKET FOR RXM2/4 for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.
📋 Technical Specifications
| Product | |
| Brand | Schneider Electric |
| Part Number / SKU | RXZE2S114M |
| Category | Power Socket / Outlet |
| Main | |
| Range of product | Harmony Timer Relays |
| Product compatibility | Plug-in relay RXM with 2 C/O contact Plug-in relay RXM with 4 C/O contact Plug-in relay REXL with 2 C/O contact Plug-in relay REXL with 4 C/O contact Plug-in relay 782H with 4 C/O contact |
| Device short name | RXZ |
| [Ith] conventional free air thermal current | 10 A |
| Product or component type | Socket |
| Contacts type and composition | 4 C/O |
| Complementary | |
| [Ue] rated operational voltage | < 250 V conforming to IEC < 300 V conforming to UL |
| Connections – terminals | Screw connectors, 1 x 0.34…1 x 2.5 mm² (AWG 22…AWG 14) flexible with cable end Screw connectors, 2 x 0.34…2 x 1 mm² (AWG 22…AWG 17) flexible with cable end Screw connectors, 1 x 0.5…1 x 2.5 mm² (AWG 20…AWG 14) solid without cable end Screw connectors, 2 x 0.5…2 x 1.5 mm² (AWG 20…AWG 16) solid without cable end |
| Shape of pin | Flat |
| Tightening torque | < 1 N.m for M3 screw(s) |
| Fixing mode | By screw (panel) Clip-on (35 mm symmetrical DIN rail) |
| Wire stripping length | 8 mm |
| Contact terminal arrangement | Separate |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Sale per indivisible quantity | 10 |
| Width | 27 mm |
| Product weight | 0.062 kg |
| Environment | |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Dielectric strength | 2500 V |
| Standards | IEC 61984 |
| Product certifications | CSA Lloyd’s UL |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.300 cm |
| Package 1 Width | 2.700 cm |
| Package 1 Length | 8.000 cm |
| Package 1 Weight | 67.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 6.800 cm |
| Package 2 Width | 11.500 cm |
| Package 2 Length | 14.000 cm |
| Package 2 Weight | 706.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 200 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 13.833 kg |
| Contractual warranty | |
| Warranty (in months) | 18 |
⚡ Key Features
- Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
- BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
- Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
- GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
- Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
🔗 Compatible Products & Accessories
The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:
RXM4AB1BDRXM4AB1E7RXM4AB1P7RXM4AB2BDRXM4AB2P7RXM040WRXM041BN7RXM021FPRXZ400RXZR335
