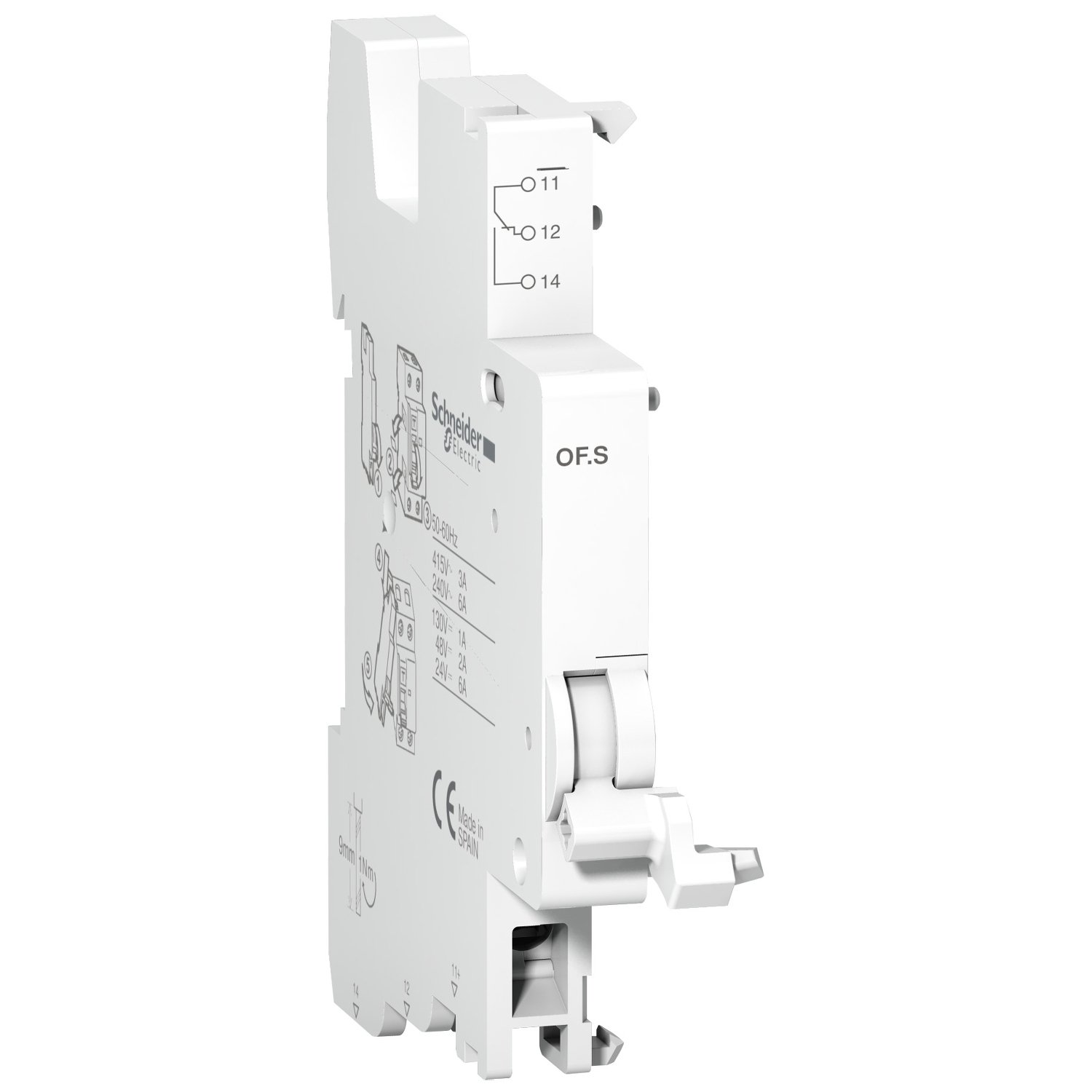

A9N26923 | Acti 9 – auxiliary contact OFS 1 O/C for RCCB – Schneider Electric

Name: Acti 9 OFS Auxiliary Contact for RCCB | Schneider Electric | A9N26923
Brand: Schneider Electric
SKU: A9N26923
Price: 6720.60 INR
Availability: InStock

SKU: A9N26923

Original price was: ₹11,201.00.Current price is: ₹6,720.60. Excl. GST

In stock

10 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

The Schneider Electric A9N26923 is a rccb from the Acti9 range, engineered for reliable circuit protection and isolation in demanding Indian and international installations. Key ratings include AC-12 3 A at 380…415 V, AC 50/60 Hz, IP20. Buy the A9N26923 | Acti 9 – auxiliary contact OFS 1 O/C for RCCB online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	A9N26923
Category	RCCB
Main
range of product	Acti9
Product or component type	OC contact
Device short name	OFS
Signal contacts composition	1 C/O
[In] rated current	AC-12 3 A at 380…415 V, AC 50/60 Hz AC-12 6 A at 220…240 V, AC 50/60 Hz DC-12 1 A at 130 V, DC DC-12 1.5 A at 60 V, DC DC-12 2 A at 48 V, DC DC-12 6 A at 24 V, DC
9 mm pitches	1
Standards	EN/IEC 60947-5-1
Complementary
Range compatibility	Acti9 RCCB-ID 125A Acti9 ID C40 Acti9 IDc Acti9 ITG40
Mounting mode	Fixed
Mounting support	DIN rail
Comb busbar and distribution block compatibility	Top: YES
Height	85.3 mm
Width	9 mm
Depth	78.5 mm
Product weight	33 g
Colour	White
Connections – terminals	Clamp terminal (bottom): 2 cable(s) 1.5 mm² – flexible Clamp terminal (bottom): 1 cable(s) 0.5…2.5 mm² – rigid Clamp terminal (bottom): 2 cable(s) 1.5 mm² – flexible with ferrule
Wire stripping length	9 mm
Tightening torque	1 N.m
Environment
IP degree of protection	IP20 conforming to EN/IEC 60947-5-1
Pollution degree	3 conforming to EN/IEC 60947-5-1
Tropicalisation	2 conforming to EN/IEC 60947-5-1
Relative humidity	0.95 % at 55 °C
Ambient air temperature for operation	-35…70 °C
Ambient air temperature for storage	-40…85 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.000 cm
Package 1 Width	7.800 cm
Package 1 Length	9.300 cm
Package 1 Weight	44.000 g
Unit Type of Package 2	BB1
Number of Units in Package 2	12
Package 2 Height	9.200 cm
Package 2 Width	10.000 cm
Package 2 Length	25.500 cm
Package 2 Weight	590.000 g
Unit Type of Package 3	S03
Number of Units in Package 3	108
Package 3 Height	30.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	5.688 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Earth-leakage protection only — no overload or short-circuit protection; install in series with an appropriately rated MCB for full circuit protection.
Mandatory test button — simulate a leakage fault to verify the trip mechanism without live fault conditions; test monthly per IS 12640 recommendation.
Type AC — designed for purely sinusoidal AC residual currents on standard residential and commercial circuits.
Manufactured to IEC 61008 / IS 12640-1 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: Will the A9N26923 trip on earth faults from variable frequency drives (VFDs)?

A: VFDs, LED drivers, and switched-mode power supplies generate high-frequency leakage currents that can cause nuisance tripping in standard Type AC RCCBs. If your installation includes VFDs, use a Type A (for pulsating DC components) or Type F/B RCCB. The A9N26923 specification (AC or A type) determines suitability — check the product marking.

Q: How many downstream circuits can be protected under the A9N26923 without nuisance tripping?

A: Downstream MCBs or RCBOs can be connected below the A9N26923, but the total standing leakage current of all connected circuits must not exceed 30–50% of the RCCB’s rated sensitivity — typically 9–15mA for a 30mA device. Each appliance with a filter (computers, VFDs, LED drivers) contributes 0.5–3mA of standing leakage, so limit the count of such loads per RCCB to prevent cumulative leakage causing nuisance tripping.

Q: Which Schneider Electric accessories are compatible with the A9N26923?

A: The Schneider Electric A9N26923 series supports snap-on accessories including auxiliary contacts (OF), alarm contacts (SD), shunt trip coils (MX), undervoltage releases (MN), and comb busbars. Accessories are series-specific — always verify compatibility using the Schneider Electric product catalogue before ordering. myelectric.in can advise on the correct accessory part numbers for the A9N26923.

Q: What is the difference between an RCCB and a standard MCB — and why use the A9N26923?

A: A standard MCB protects against overload and short-circuit only. An RCCB adds earth leakage (residual current) detection — it trips on faults as low as 30mA to ground, protecting against electric shock and fire from insulation faults, which a standard MCB cannot detect. Choose the A9N26923 when the application specifically requires rccb characteristics.
