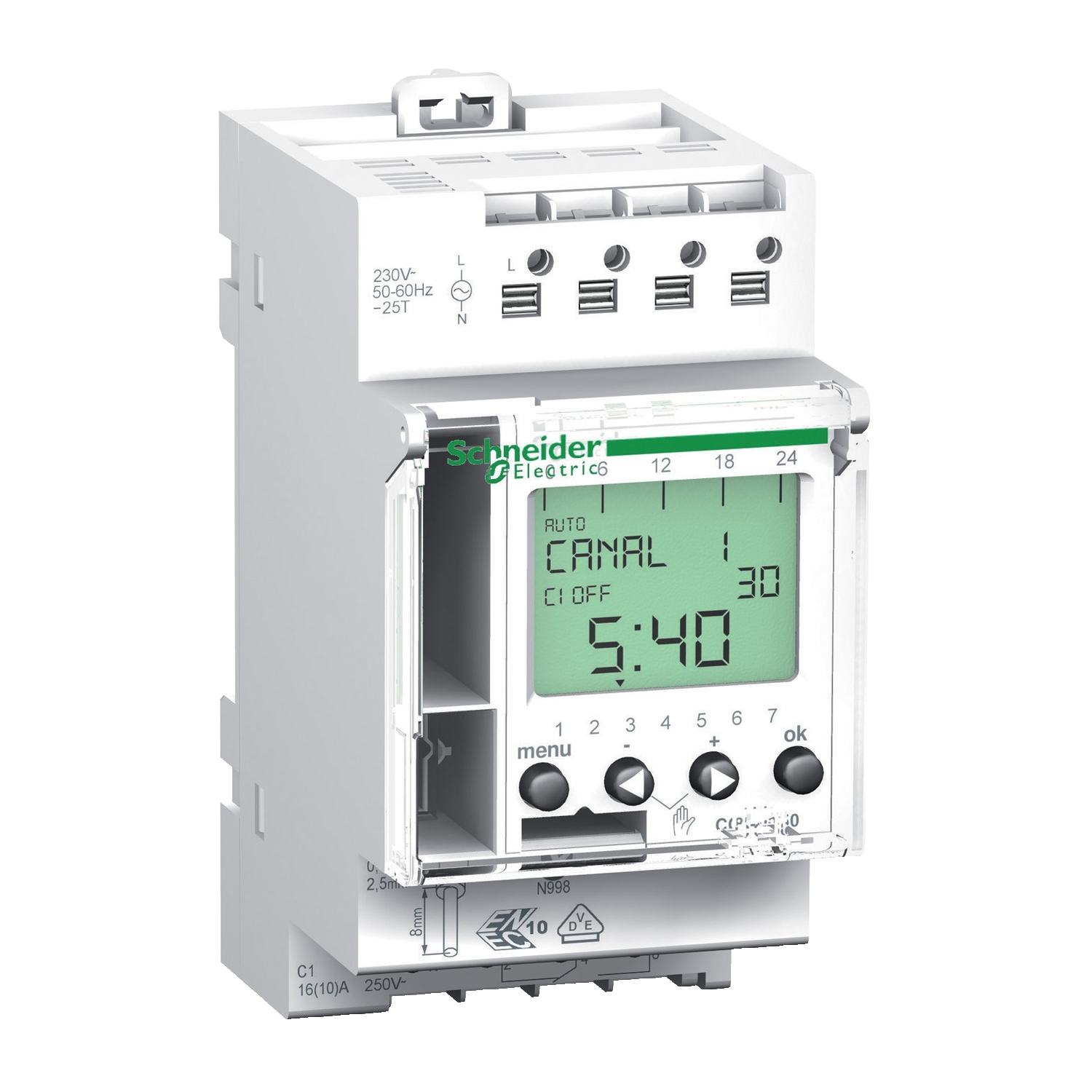

CCT15720 | Acti 9 – IHP – 1C Digital Time Switch
Product Overview
The CCT15720 is a digital time switch from Schneider Electric’s Acti 9 range, designed for precise control of electrical circuits. It offers both 24-hour and 7-day programming options, making it ideal for applications requiring automated scheduling.
Key Features
- Programming Options: 24-hour and 7-day scheduling for flexible control.
- Digital Display: Easy-to-read LCD screen for setting and monitoring schedules.
- Compact Design: Fits seamlessly into Acti 9 distribution boards.
- Multiple Channels: 1-channel output for controlling a single circuit.
- Manual Override: Allows manual control of the connected circuit when needed.
- Battery Backup: Built-in battery ensures settings are retained during power outages.
- Energy Efficiency: Helps optimize energy usage by automating circuit control.
- Easy Installation: DIN rail mounting for quick and secure installation.
- Compliance: Meets international standards for safety and performance.
Technical Specifications
| Parameter | Value |
|---|---|
| Voltage Rating | 230V AC |
| Frequency | 50/60 Hz |
| Switching Capacity | 16A resistive, 10A inductive |
| Operating Temperature | -5°C to +40°C |
| Dimensions | 72mm x 90mm x 64mm |
| Weight | Approx. 150g |
Applications
The CCT15720 is suitable for a wide range of applications, including:
- Lighting control in residential and commercial buildings.
- HVAC system scheduling.
- Industrial automation.
- Energy management systems.
Warranty and Support
Schneider Electric offers a standard warranty on this product. For technical support and warranty claims, contact Schneider Electric’s customer service.
