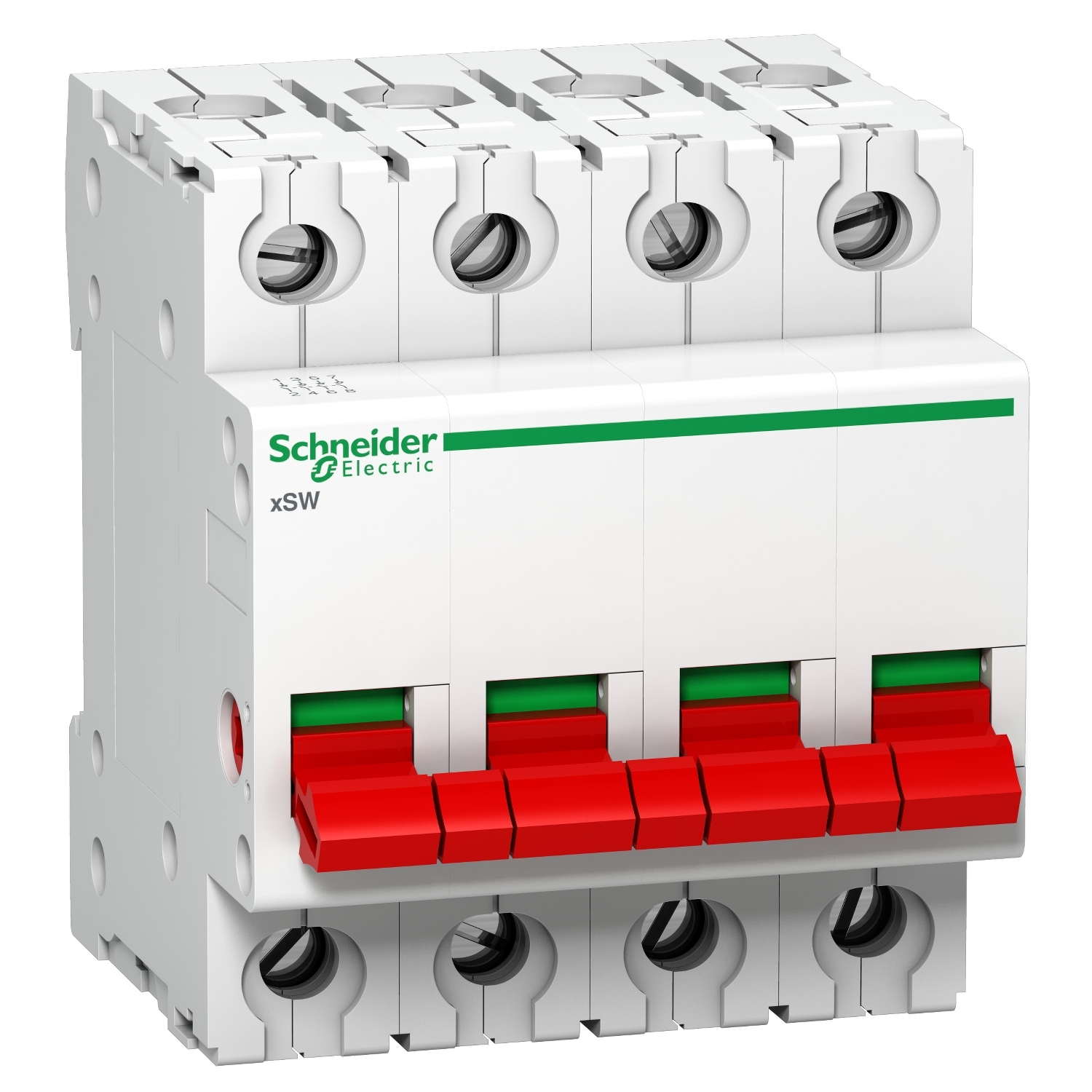

A9S4P125 | Acti 9 Isolator xSW 4P 125A 2.5kA 415V AC – Schneider Electric

Product Overview

The A9S4P125 is a high-performance isolator switch from Schneider Electric’s Acti 9 range. Designed for industrial and commercial applications, this 4-pole isolator ensures safe and reliable disconnection of electrical circuits. It is rated for 125A and 415V AC, with a breaking capacity of 2.5kA, making it suitable for a wide range of electrical installations.

Key Features

• Rated Current: 125A
• Number of Poles: 4P (4 Poles)
• Rated Voltage: 415V AC
• Breaking Capacity: 2.5kA
• Mounting Type: DIN Rail Mounting
• Operating Temperature: -25°C to +60°C
• Mechanical Durability: 10,000 operations
• Electrical Durability: 1,500 operations
• Safety Standards: Compliant with IEC 60947-3 and IEC 60947-1
• Terminal Type: Screw Clamp
• IP Rating: IP20 (Finger-safe protection)
• Color: Grey
• Dimensions: 90mm (H) x 72mm (W) x 68mm (D)
• Weight: 0.5 kg

Applications

The A9S4P125 isolator is ideal for use in:

• Industrial control panels
• Commercial electrical distribution boards
• HVAC systems
• Renewable energy systems
• Data centers

Benefits

• Ensures safe isolation of electrical circuits for maintenance and repair.
• High breaking capacity for reliable performance in demanding environments.
• Compact design for space-saving installation.
• Durable construction for long-lasting use.
• Compliance with international safety standards.

Warranty

Schneider Electric offers a standard warranty of 2 years for this product, ensuring peace of mind and reliability.
