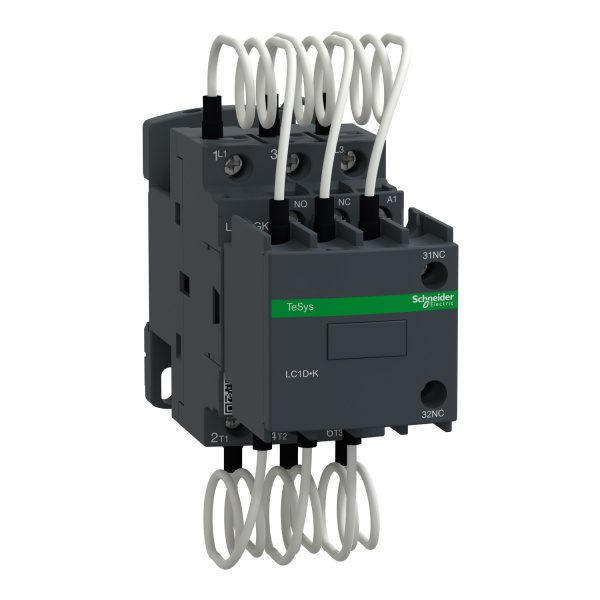

LC1DGKM7 Capacitor Contactor

TeSys D Series by Schneider Electric

Product Overview

The LC1DGKM7 is a capacitor contactor from the TeSys D series by Schneider Electric, designed for switching capacitors in power factor correction systems. It is suitable for applications requiring reliable and efficient control of capacitor banks.

Key Features

• Rated Power: 16.7 kVAR at 400 V/50 Hz
• Coil Voltage: 220 V AC, 50/60 Hz
• Contact Configuration: 3 poles (3P)
• Rated Operational Current (Ie): 32 A
• Rated Insulation Voltage (Ui): 690 V
• Rated Thermal Current (Ith): 32 A
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Mounting: Screw mounting or snap-on mounting on 35 mm DIN rail
• Terminal Type: Screw terminals
• Protection Degree: IP20 (finger-safe design)
• Compliance: Meets IEC 60947-4-1 and IEC 60947-4-2 standards

Applications

The LC1DGKM7 is ideal for use in power factor correction systems, capacitor banks, and other applications requiring controlled switching of capacitors to improve energy efficiency and reduce reactive power.

Environmental Specifications

• Operating Temperature: -25°C to +60°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: Up to 95% (non-condensing)
• Altitude: Up to 2000 meters above sea level

Dimensions and Weight

• Width: 45 mm
• Height: 78 mm
• Depth: 77 mm
• Weight: Approximately 0.35 kg

Additional Notes

This contactor is designed for easy installation and maintenance, with a compact design that saves space in control panels. It is compatible with Schneider Electric’s TeSys D accessories, including auxiliary contacts and thermal overload relays.
