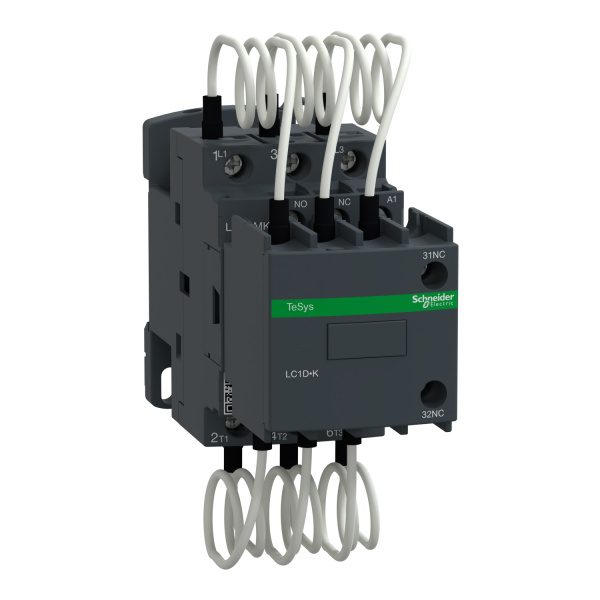

LC1DMKM7 – Capacitor Contactor, TeSys D
Product Overview
The LC1DMKM7 is a capacitor contactor from the TeSys D series by Schneider Electric. It is designed for switching capacitor banks in power factor correction systems. This contactor is rated for 25 kVAR at 400 V/50 Hz and features a coil voltage of 220 V AC, suitable for 50/60 Hz operation.
Key Features
- Series: TeSys D
- Type: Capacitor Contactor
- Rated Power: 25 kVAR at 400 V/50 Hz
- Coil Voltage: 220 V AC
- Frequency: 50/60 Hz
- Poles: 3
- Mounting: Screw Mounting
- Contact Material: Silver Alloy
- Mechanical Life: Up to 10 million operations
- Electrical Life: Up to 1 million operations
- Ambient Temperature: -25°C to +60°C
- Protection Degree: IP20
- Standards: IEC 60947-4-1, IEC 61095
Applications
The LC1DMKM7 is ideal for use in power factor correction systems, ensuring efficient energy management and reducing reactive power in electrical networks. It is commonly used in industrial, commercial, and residential applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Operational Voltage (Ue) | 400 V |
| Rated Operational Current (Ie) | 36 A |
| Rated Thermal Current (Ith) | 40 A |
| Power Consumption (Coil) | 8 VA |
| Weight | Approx. 0.5 kg |
Additional Information
For more details, refer to the official Schneider Electric product documentation or contact their customer support.
