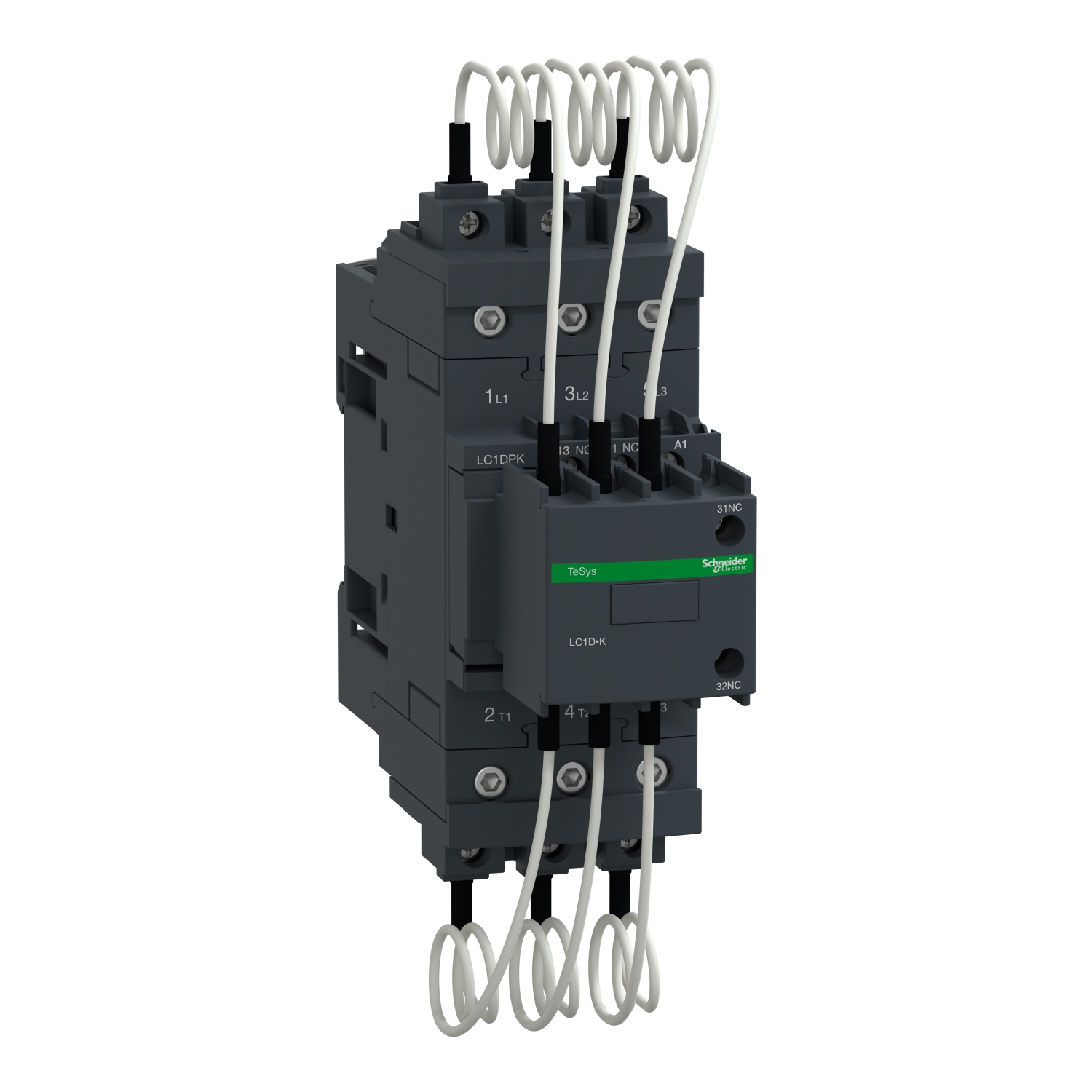

LC1DPKM7 – Capacitor Contactor, TeSys D

Product Overview

The LC1DPKM7 is a capacitor contactor from the TeSys D series by Schneider Electric. It is designed for switching capacitor banks in power factor correction systems, ensuring efficient energy management and reducing reactive power in electrical installations.

Key Features

• Rated Power: 30 kVAR at 400 V/50 Hz
• Coil Voltage: 220 V AC, 50/60 Hz
• Application: Specifically designed for capacitor switching in power factor correction systems.
• Durability: High mechanical and electrical durability, ensuring long service life.
• Compact Design: Space-saving design for easy integration into electrical panels.
• Safety: Equipped with built-in protection features to prevent overloading and ensure safe operation.
• Compatibility: Compatible with a wide range of capacitor banks and power factor correction controllers.
• Standards Compliance: Meets international standards for safety and performance, including IEC and UL certifications.

Technical Specifications

Applications

The LC1DPKM7 capacitor contactor is ideal for use in:

• Industrial power factor correction systems
• Commercial buildings with high reactive power demand
• Renewable energy systems requiring efficient power management
• HVAC systems with capacitor banks

Additional Information

For more detailed technical information, installation guidelines, and safety instructions, please refer to the official Schneider Electric product manual or contact their customer support.
