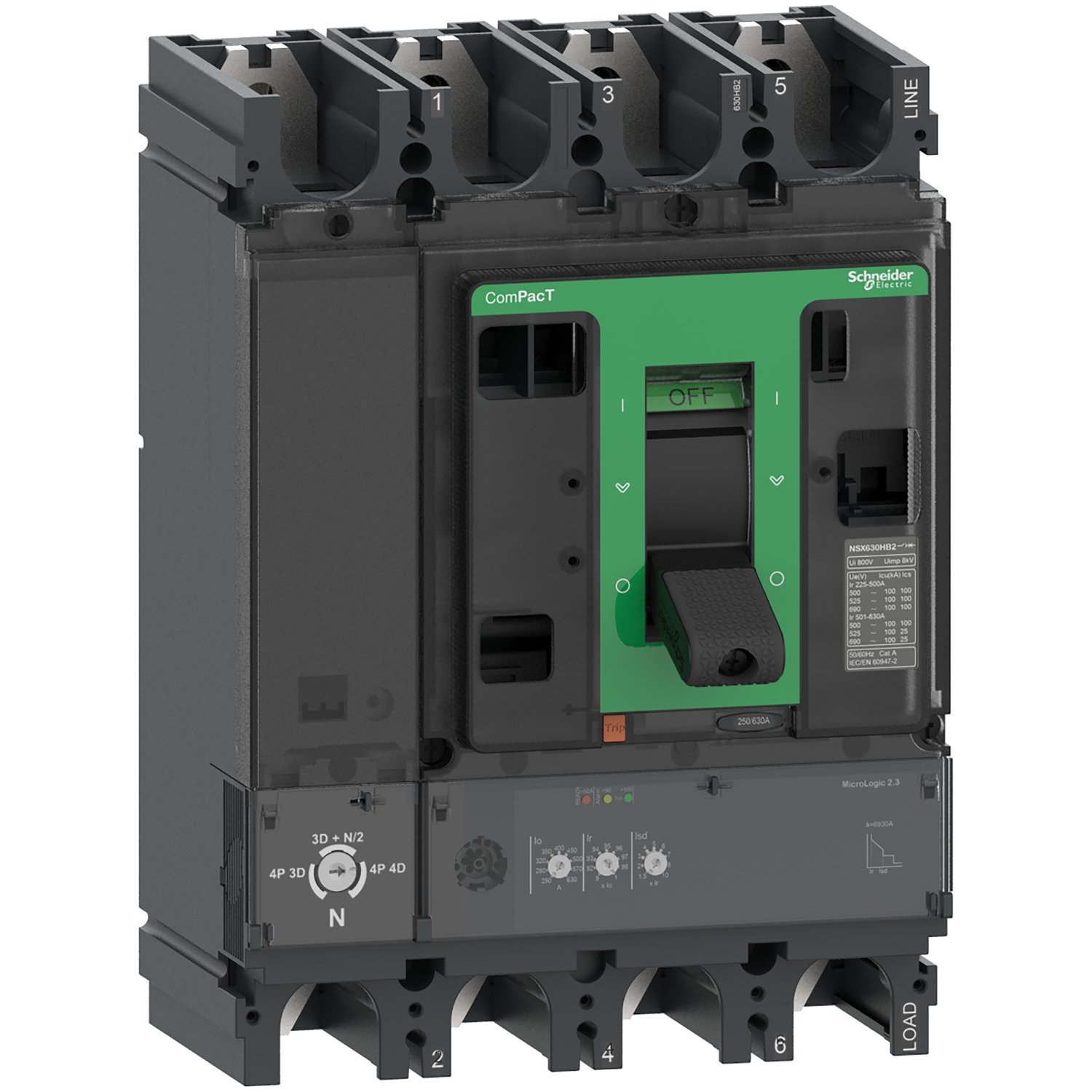

C63N42D630 Circuit breaker, ComPacT NSX630N, 50kA 415VAC, 4 poles, MicroLogic 2.3 trip unit 630A Schneider Electric c63w42d63
Click to enlarge

C63F42D630 | Circuit breaker, ComPacT NSX630F, 36kA/415VAC, 4 poles, MicroLogic 2.3 trip unit 630A – Schneider Electric

SKU: C63F42D630

Original price was: ₹142,600.00.Current price is: ₹68,448.00. Excl. GST

In stock

In stock

13 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

29450 standard auxiliary contact, circuit breaker status OF-SD-SDE-SDV, 1 single contact Schneider Electric 29450 main image
-48%

29450 | standard auxiliary contact, circuit breaker status OF-SD-SDE-SDV, 1 single contact – Schneider Electric

Schneider Electric
Original price was: ₹1,640.00.Current price is: ₹852.80. Excl. GST
Add to basket
SKU: 29450
LV429407 MN undervoltage release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 220 to 240 VAC 50 60 Hz,
-48%

LV429407 | MN undervoltage release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 220 to 240 VAC 50/60 Hz, 208 to 277 VAC 60 Hz – Schneider Electric

Schneider Electric
Original price was: ₹5,880.00.Current price is: ₹3,057.60. Excl. GST
Add to basket
SKU: LV429407
-46%

LV432594 | 1 4P LONG TERMINAL SHIELD – Schneider Electric

Schneider Electric
Original price was: ₹2,320.00.Current price is: ₹1,252.80. Excl. GST
Add to basket
SKU: LV432594
-50%

LV429408 | MN 380-415V50/60HZ 440-480V60HZ UVR – Schneider Electric

Schneider Electric
Original price was: ₹5,880.00.Current price is: ₹2,969.40. Excl. GST
Add to basket
SKU: LV429408
-46%

LV432597T | ROTARY HANDLE DIR 400-630 BLK – Schneider Electric

Schneider Electric
Original price was: ₹3,620.00.Current price is: ₹1,954.80. Excl. GST
Add to basket
SKU: LV432597T
-46%

LV432513 | TORQUE LIMITING SCREWS (SET OF 12) – Schneider Electric

Schneider Electric
Original price was: ₹5,770.00.Current price is: ₹3,115.80. Excl. GST
Add to basket
SKU: LV432513
LV429387 MX shunt trip release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 220 to 240 VAC 50 60 Hz, 20
-48%

LV429387 | MX shunt trip release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 220 to 240 VAC 50/60 Hz, 208 to 277 VAC 60 Hz – Schneider Electric

Schneider Electric
Original price was: ₹4,740.00.Current price is: ₹2,464.80. Excl. GST
Add to basket
SKU: LV429387
LV432641 motor mechanism, MT 400-630, Compact NSX400 630, PowerPact Multistandard L, 220 to 240 VAC 50 60 Hz, 208 to 277 VAC
-48%

LV432641 | motor mechanism, MT 400-630, Compact NSX400/630, PowerPact Multistandard L, 220 to 240 VAC 50/60 Hz, 208 to 277 VAC 60 Hz – Schneider Electric

Schneider Electric
Original price was: ₹78,730.00.Current price is: ₹40,939.60. Excl. GST
Add to basket
SKU: LV432641
-46%

LV432614T | INTERLOCKING 400-630 FOR TOGGLE – Schneider Electric

Schneider Electric
Original price was: ₹23,240.00.Current price is: ₹12,549.60. Excl. GST
Add to basket
SKU: LV432614T
Placeholder
-46%

LV432631 | FIXED LOCKING DEVICE FOR 3 PADLOCKS – Schneider Electric

Original price was: ₹1,860.00.Current price is: ₹1,004.40. Excl. GST
Add to basket
SKU: LV432631
-45%

LV432465 | Vigi 200-440V 4P for NSX400/630 – Schneider Electric

Schneider Electric
Original price was: ₹119,860.00.Current price is: ₹65,923.00. Excl. GST
Add to basket
SKU: LV432465
LV429388 MX shunt trip release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 380 to 415 VAC 50 60 Hz, 44
-48%

LV429388 | MX shunt trip release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 380 to 415 VAC 50/60 Hz, 440 to 480 VAC 60 Hz – Schneider Electric

Schneider Electric
Original price was: ₹4,740.00.Current price is: ₹2,464.80. Excl. GST
Add to basket
SKU: LV429388
-46%

LV432592 | 1 4P SHORT TERMINAL SHIELD – Schneider Electric

Schneider Electric
Original price was: ₹1,480.00.Current price is: ₹799.20. Excl. GST
Add to basket
SKU: LV432592
LV432570 interphase barriers, Compact NSX 400 630, EasyPact CVS 400 630, set of 6 parts Schneider Electric odalv432570 1500x1
-46%

LV432570 | interphase barriers, Compact NSX 400/630, EasyPact CVS 400/630, set of 6 parts – Schneider Electric

Schneider Electric
Original price was: ₹1,550.00.Current price is: ₹837.00. Excl. GST
Add to basket
SKU: LV432570
-46%

LV432621T | INTERLOCKING 400-630 FOR DIR ROT-HANDLE – Schneider Electric

Schneider Electric
Original price was: ₹23,240.00.Current price is: ₹12,549.60. Excl. GST
Add to basket
SKU: LV432621T
-46%

LV432598T | ROTARY HANDLE EXT 400-630 BLK – Schneider Electric

Schneider Electric
Original price was: ₹5,870.00.Current price is: ₹3,169.80. Excl. GST
Add to basket
SKU: LV432598T
LV432539 COMPACT PLUG IN BASE KIT 4P Schneider Electric lv
-46%

LV432539 | COMPACT PLUG IN BASE KIT 4P – Schneider Electric

Schneider Electric
Original price was: ₹59,740.00.Current price is: ₹32,259.60. Excl. GST
Add to basket
SKU: LV432539
-46%

LV429454 | Wireless auxiliary contact NSX – Schneider Electric

Schneider Electric
Original price was: ₹6,670.00.Current price is: ₹3,601.80. Excl. GST
Add to basket
SKU: LV429454

    The Schneider Electric C63F42D630 is a mccb from the ComPacT range, engineered for reliable circuit protection and isolation in demanding Indian and international installations. Key ratings include 630 A at 40 °C, 690 V AC 50/60 Hz, 4P. Buy the C63F42D630 | Circuit breaker, ComPacT NSX630F, 36kA/415VAC, 4 poles, MicroLogic 2.3 trip unit 630A online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

    📋 Technical Specifications

    Product
    BrandSchneider Electric
    Part Number / SKUC63F42D630
    CategoryMCCB
    Main
    RangeComPacT
    Product nameComPacT NSX
    Device short nameNSX630F
    Product or component typeCircuit breaker
    Device applicationDistribution
    Poles description4P
    Protected poles description4D
    3D + N/2
    3D
    Neutral positionLeft
    [In] rated current630 A at 40 °C
    [Ue] rated operational voltage690 V AC 50/60 Hz
    Network typeAC
    Network frequency50/60 Hz
    Suitability for isolationYes conforming to EN/IEC 60947-2
    Utilisation categoryCategory A
    Breaking capacity40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
    36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
    30 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
    25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
    20 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
    10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
    85 kA Icu at 240 V AC 50/60 Hz conforming to UL 60947-4-1
    35 kA Icu at 480 V AC 50/60 Hz conforming to UL 60947-4-1
    20 kA Icu at 600 V AC 50/60 Hz conforming to UL 60947-4-1
    Breaking capacity codeF 36 kA 415 V AC
    Trip unit nameMicroLogic 2.3
    Trip unit technologyElectronic
    Trip unit protection functionsLSoI
    Control typeToggle
    Circuit breaker mounting modeFixed
    Complementary
    [Ui] rated insulation voltage800 V AC 50/60 Hz
    [Uimp] rated impulse withstand voltage8 kV
    [Ics] rated service breaking capacity40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
    36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
    30 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
    25 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
    10 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2
    10 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
    Mechanical durability15000 cycles
    Electrical durability8000 cycles at 440 V In/2
    4000 cycles at 440 V In
    6000 cycles at 690 V In/2
    2000 cycles at 690 V In
    Power dissipation per pole39.7 W
    Mounting supportBackplate
    Mounting positionHorizontal and vertical
    Flat on the back
    Upside connectionFront
    Downside connectionFront
    Connection pitch45 mm
    Protection typeL : for overload protection (long time)
    So : for short time short-circuit protection with fixed delay
    I : for instantaneous short-circuit protection
    Trip unit rating630 A at 40 °C
    Long-time pick-up adjustment type Ir (thermal protection)Adjustable 9 settings
    [Ir] long-time protection pick-up adjustment range250…630 A
    Long-time protection delay adjustment type trFixed
    [tr] long-time delay adjustment range400 s at 1.5 x Ir
    16 s at 6 x Ir
    11 s at 7.2 x Ir
    Neutral protection setting0.5 x Ir (3D + N/2)
    1 x Ir (4D)
    No protection (3D)
    Thermal memory20 minutes before and after tripping
    Short-time protection pick-up adjustment type IsdAdjustable 9 settings
    [Isd] Short-time protection pick-up adjustment range1.5…10 x Ir
    Short-time protection delay adjustment type tsdFixed
    Instantaneous protection pick-up adjustment type IiFixed
    [Ii] instantaneous protection pick-up adjustment range6900 A
    Earth-leakage protectionWithout
    Zone selective interlocking ZSIWithout
    Number of slots6 slot(s)
    Local signallingFlashing LED (green) for ready to operate
    LED 105 % Ir (red) for overload
    LED 90 % Ir (orange) for overload
    Width (W)185 mm
    Height (H)255 mm
    Depth (D)110 mm
    Product weight8.13 kg
    Environment
    StandardsEN/IEC 60947-2
    Overvoltage categoryIII
    Electrical shock protection classClass II on front face
    Pollution degree3 conforming to IEC 60664-1
    IP degree of protectionIP40 conforming to IEC 60529
    IK degree of protectionIK07 conforming to IEC 62262
    Ambient air temperature for operation-25…70 °C
    Ambient air temperature for storage-50…85 °C
    Relative humidity0…95 %
    Operating altitude0…2000 m without derating
    2000 m…5000 m with derating
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height15.000 cm
    Package 1 Width20.000 cm
    Package 1 Length29.000 cm
    Package 1 Weight7.434 kg
    Unit Type of Package 2S04
    Number of Units in Package 22
    Package 2 Height30.000 cm
    Package 2 Width40.000 cm
    Package 2 Length60.000 cm
    Package 2 Weight15.568 kg
    Contractual warranty
    Warranty (in months)18

    ⚡ Key Features

    • 630 A frame rating — handles the full rated current continuously; designed for feeder and sub-distribution protection where fault levels exceed MCB capability.
    • Performance level F — breaking capacity 36 kA (standard breaking capacity, suitable for commercial and light industrial boards).
    • Micrologic 2.3 electronic trip unit — LSI + earth-fault protection (Ig) — monitors earth leakage on the feeder.
    • 4 Poles — three-phase + switched neutral (TN-S system) for full four-pole isolation per IEC 60364.
    • CompacT NSX form factor — 70mm wide per pole; designed for high-density LV switchboards with up to 3 units per standard 250mm busbar bay.
    • Rotary handle with padlocking points — LOTO compliant; handle locks in OFF position with up to 3 padlocks, preventing accidental energisation during maintenance.
    • Manufactured to IEC 60947-2 / IS 13947-2 — complies with the applicable Indian BIS and IEC international standards for this product category.
    • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
    • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
    • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.

    🔗 Compatible Products & Accessories

    The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

    LV432614TLV432621TLV432631LV432594LV432592LV432570LV4324652945029452LV429387LV429388LV429407LV429408LV432597TLV432598TLV432641LV432539LV429454LV432513

    ❓ Frequently Asked Questions

    Q: What load can the C63F42D630 protect at its rated 630 A?

    A: The C63F42D630 is rated to carry and protect circuits up to 630 A continuously. For motor loads, ensure the full-load current (FLC) of the motor does not exceed this rating. For resistive loads (heaters, lighting), the 630 A rating is used directly. Derate by 20% for ambient temperatures above 40°C.

    Q: What does the 36 kA breaking capacity on the C63F42D630 mean in practice?

    A: Breaking capacity (36 kA) is the maximum prospective short-circuit current the C63F42D630 can safely interrupt without damage. Before installing, verify that the prospective fault level at the installation point does not exceed 36 kA — this is checked using a fault level calculation or from the upstream transformer impedance data. Installing a breaker with insufficient breaking capacity is a serious safety violation.

    Q: Can the C63F42D630 be motorised for remote switching and automation?

    A: Yes. Schneider Electric MCCBs in this series support rotary handle adaptation and motorised operating mechanisms as accessories, enabling remote ON/OFF switching via PLC, SCADA, or BMS. Motorised MCCBs are used for automatic load management and remote trip in automated distribution systems.

    Q: What trip unit type does the C63F42D630 use — thermal-magnetic or electronic?

    A: The C63F42D630 uses a MicroLogic electronic trip unit, offering adjustable protection functions: long-time overload (Ir), short-time (Isd), and instantaneous (Ii) settings, with optional earth fault protection. Electronic trip units provide superior accuracy over thermal-magnetic units.

    Q: Is the C63F42D630 suitable for use as a motor branch circuit protector (Type E coordination)?

    A: MCCBs used for motor branch circuit protection must be coordinated with the downstream overload relay for Type 2 coordination (no damage to contactor or relay on short-circuit). Verify the Schneider Electric coordination table for the specific contactor-overload-MCCB combination to confirm Type 1 or Type 2 coordination is achieved.

    Customer Reviews

    Related Products

    Solar Controller for 415V Induction motor pumps,10HP,Without RMU L T CS91466PO1O newbradd 7

    Solar Controller for 415V Induction motor pumps,3HP,Without RMU | L&T – CS91463PO1O

    Lauritz Knudsen (L&T)
    Read more
    SKU: CS91463PO1O
    MU-G10HN, 10HP, 20-32A, 360V wideband coil Voltage, DOL, Three Phase DOL Controller for Submersible Pump Application L T CS92

    MU-G7.5,7.5HP,13-22A, 360V wideband coil Voltage, DOL, Three Phase DOL Controller for Submersible Pump Application | L&T – CS92103SODO

    Lauritz Knudsen (L&T)
    ₹12,550.00 Excl. GST
    Add to basket
    SKU: CS92103SODO
    XB5AR31N Push button, Harmony XB5N XB7N, plastic, mushroom, green, 60mm, spring return, unmarked, 1 NO Schneider Electric xb5
    -46%

    XB5AR31N | Push button, Harmony XB5N XB7N, plastic, mushroom, green, 60mm, spring return, unmarked, 1 NO – Schneider Electric

    Schneider Electric
    Original price was: ₹675.00.Current price is: ₹364.50. Excl. GST
    Add to basket
    SKU: XB5AR31N
    ZB2BW36C Ø 22 mm fixing hole push button head with blue lamp Schneider Electric zb2bw36c
    -35%

    ZB2BW36C | Ø 22 mm fixing hole – push button head with blue lamp – Schneider Electric

    Schneider Electric
    Original price was: ₹305.00.Current price is: ₹198.25. Excl. GST
    Add to basket
    SKU: ZB2BW36C
    Placeholder
    -20%

    MS13MD09 | 7MDL, 1HP 3 PHASE DOL STARTER – Schneider Electric

    Schneider Electric
    Original price was: ₹5,530.00.Current price is: ₹4,424.00. Excl. GST
    Add to basket
    SKU: MS13MD09
    Placeholder
    -50%

    30002572 | EM1200 Energy meter Cl 0.5 RS485 LCD – Schneider Electric

    Schneider Electric
    Original price was: ₹6,271.00.Current price is: ₹3,135.50. Excl. GST
    Add to basket
    SKU: 30002572
