Product Description – LV563305 | EasyPact CVS630F

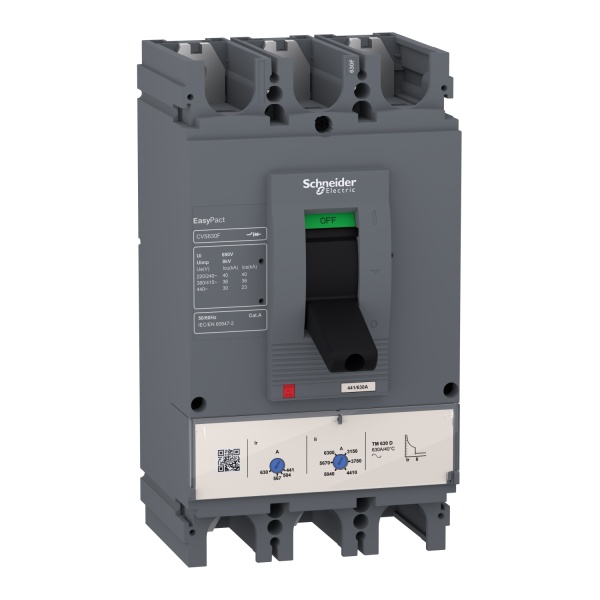

Circuit Breaker – EasyPact CVS630F

Model: LV563305

Manufacturer: Schneider Electric

Type: Circuit Breaker

Series: EasyPact CVS

Rated Current: 500 A

Breaking Capacity: 36 kA at 415 VAC

Trip Unit: Thermal Magnetic TM-D

Number of Poles: 3P (3 Poles)

Number of Protected Poles: 3d (3 Protected Poles)

Voltage Rating: 415 VAC

Mounting: Fixed

Standards: IEC 60947-2, IEC 60947-4-1

Features:

• High breaking capacity of 36 kA at 415 VAC
• Thermal magnetic trip unit for reliable protection
• Compact design for space-saving installation
• Fixed mounting type for secure installation
• Complies with international standards IEC 60947-2 and IEC 60947-4-1
• Suitable for use in industrial and commercial applications
• Provides protection against overloads and short circuits
• Easy to install and maintain

Applications:

• Industrial control panels
• Commercial buildings
• Power distribution systems
• Motor control centers
• Switchboards

Additional Information:

• Designed for reliable and safe operation
• Robust construction for durability
• Compatible with Schneider Electric’s range of accessories
