Product Description – LV563552 | EasyPact CVS630N

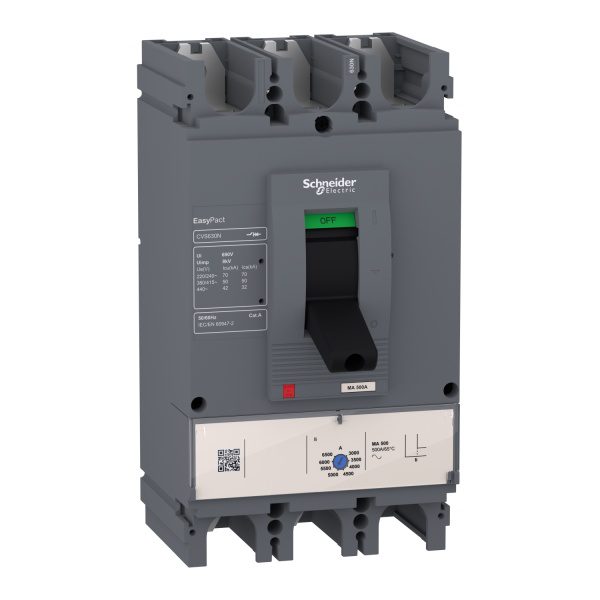

Circuit Breaker – EasyPact CVS630N

Product Code: LV563552

Manufacturer: Schneider Electric

Series: EasyPact CVS

Model: CVS630N

Rated Current: 500 A

Breaking Capacity: 50 kA at 415 VAC

Trip Unit Type: Magnetic MA

Number of Poles: 3P (3 Poles)

Number of Protected Poles: 3d (3 Poles with Neutral)

Voltage Rating: 415 VAC

Mounting Type: Fixed

Standards Compliance: IEC 60947-2

Application: Suitable for industrial and commercial applications, providing reliable protection against short circuits and overloads.

Features:

• High breaking capacity of 50 kA at 415 VAC
• Magnetic MA trip unit for precise and reliable protection
• Compact design for space-saving installation
• Fixed mounting type for secure installation
• Complies with IEC 60947-2 standards for safety and performance
• Ideal for use in distribution boards and control panels
• Robust construction for durability in harsh environments

Dimensions: (Please refer to the product datasheet for detailed dimensions)

Weight: (Please refer to the product datasheet for detailed weight)

Environmental Conditions:

• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 95% at +40°C

Certifications: CE, RoHS compliant

Warranty: Standard manufacturer warranty applies (Please refer to Schneider Electric’s warranty policy for details)

Additional Information: For more technical details, installation guidelines, and safety instructions, please refer to the official Schneider Electric product datasheet and user manual.
