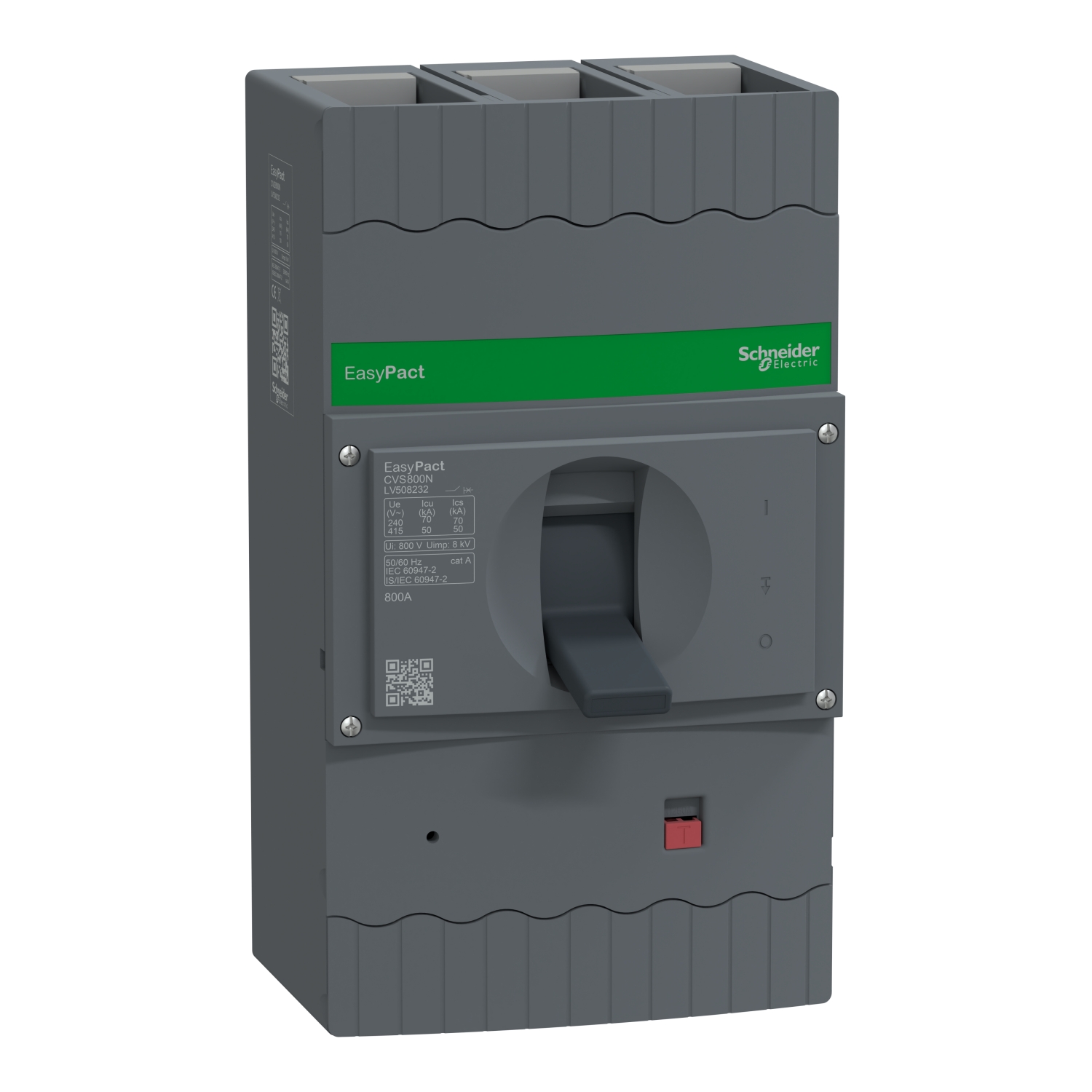

LV508232 | Circuit Breaker, EasyPact CVS800N
Product Overview
The EasyPact CVS800N is a high-performance circuit breaker designed by Schneider Electric for reliable protection in electrical distribution systems. It is suitable for a wide range of applications, offering robust performance and advanced safety features.
Key Features
- Model: EasyPact CVS800N
- Rated Current: 800A
- Number of Poles: 3P (3 Poles)
- Breaking Capacity: 50kA at 415VAC
- Tripping Unit: ETS 6.3
- Voltage Rating: 415VAC
- Mounting Type: Fixed
- Standards Compliance: IEC 60947-2
- Terminal Type: Screw-type terminals
- Environmental Resistance: High resistance to harsh environments
- Application: Suitable for industrial, commercial, and infrastructure applications
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Current | 800A |
| Breaking Capacity | 50kA at 415VAC |
| Number of Poles | 3P |
| Tripping Unit | ETS 6.3 |
| Voltage Rating | 415VAC |
| Mounting Type | Fixed |
| Standards Compliance | IEC 60947-2 |
Applications
The EasyPact CVS800N is ideal for use in:
- Industrial plants
- Commercial buildings
- Infrastructure projects
- Power distribution systems
Benefits
- High breaking capacity ensures reliable protection
- Robust design for durability in demanding environments
- Compliance with international standards for safety and performance
- Easy installation and maintenance
Disclaimer
Specifications and features are subject to change without prior notice. Always refer to the official Schneider Electric documentation for the most accurate and up-to-date information.
