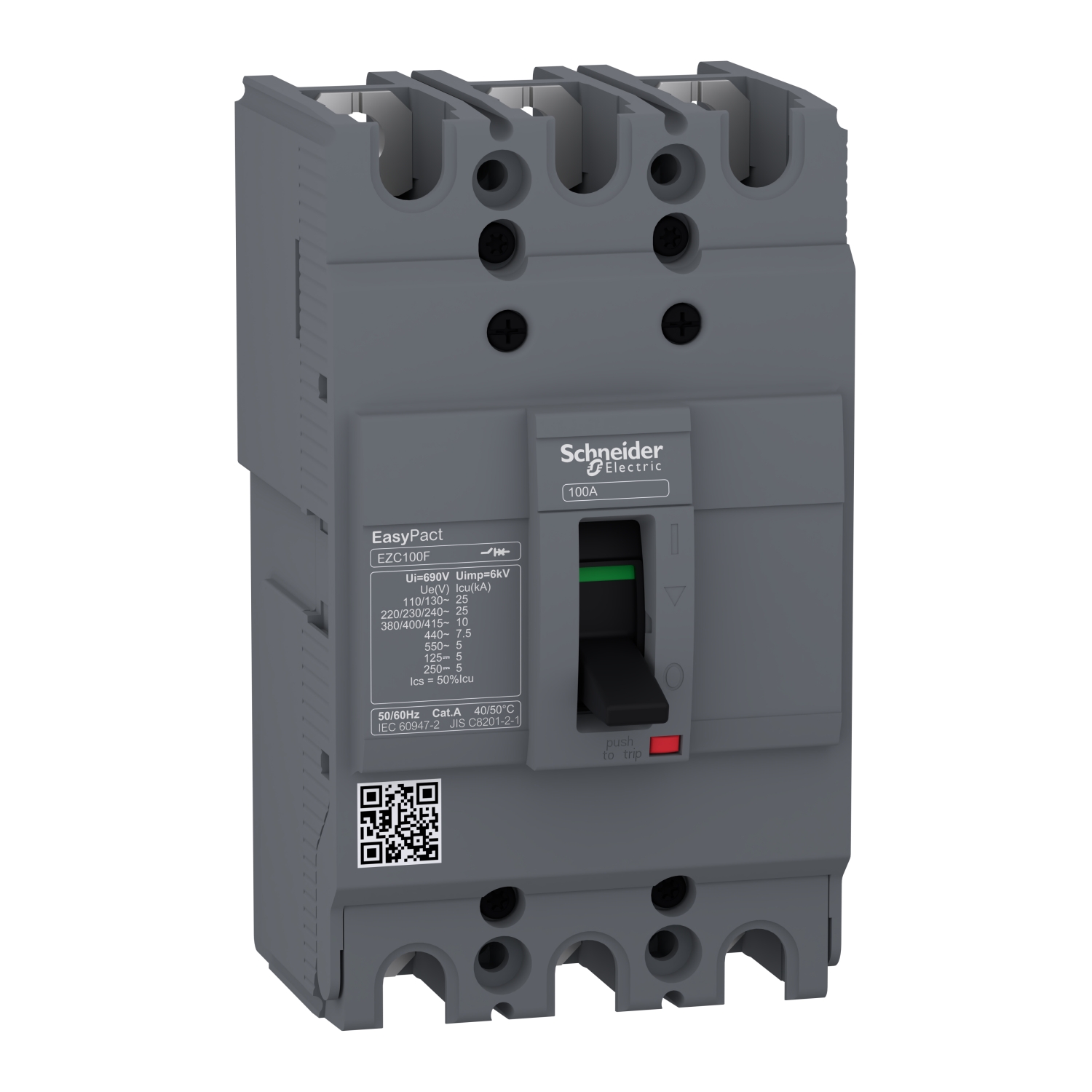

EZC100F3025 | Circuit Breaker Easypact EZC100F – TMD – 25 A – 3 Poles 3D – Schneider Electric

Product Description

The EZC100F3025 is a high-performance circuit breaker from Schneider Electric’s Easypact EZC100F series. Designed for reliable protection of electrical circuits, this circuit breaker is ideal for industrial, commercial, and residential applications. It features a thermal-magnetic trip unit (TMD) with a rated current of 25 A and is designed for 3-pole configurations with 3D breaking capacity.

Key Features

• Series: Easypact EZC100F
• Type: Thermal-Magnetic Circuit Breaker (TMD)
• Rated Current: 25 A
• Number of Poles: 3 Poles
• Breaking Capacity: 3D (3 kA at 400 V AC)
• Voltage Rating: 400 V AC
• Frequency: 50/60 Hz
• Mounting: DIN Rail Mounting
• Standards Compliance: IEC 60947-2, IEC 60898-1
• Terminal Type: Screw Clamp
• Operating Temperature: -25°C to +60°C
• Mechanical Life: 20,000 cycles
• Electrical Life: 10,000 cycles
• Protection Features: Overload and Short-Circuit Protection
• Dimensions: 90 mm (H) x 53 mm (W) x 70 mm (D)
• Weight: Approx. 0.5 kg

Applications

The EZC100F3025 circuit breaker is suitable for a wide range of applications, including:

• Industrial control panels
• Commercial buildings
• Residential electrical systems
• Motor protection circuits
• Distribution boards

Advantages

• High breaking capacity for reliable protection
• Compact design for space-saving installation
• Easy DIN rail mounting for quick installation
• Compliance with international standards for safety and reliability
• Durable construction for long service life

Warranty

Schneider Electric offers a standard warranty of 24 months from the date of purchase, subject to terms and conditions.
