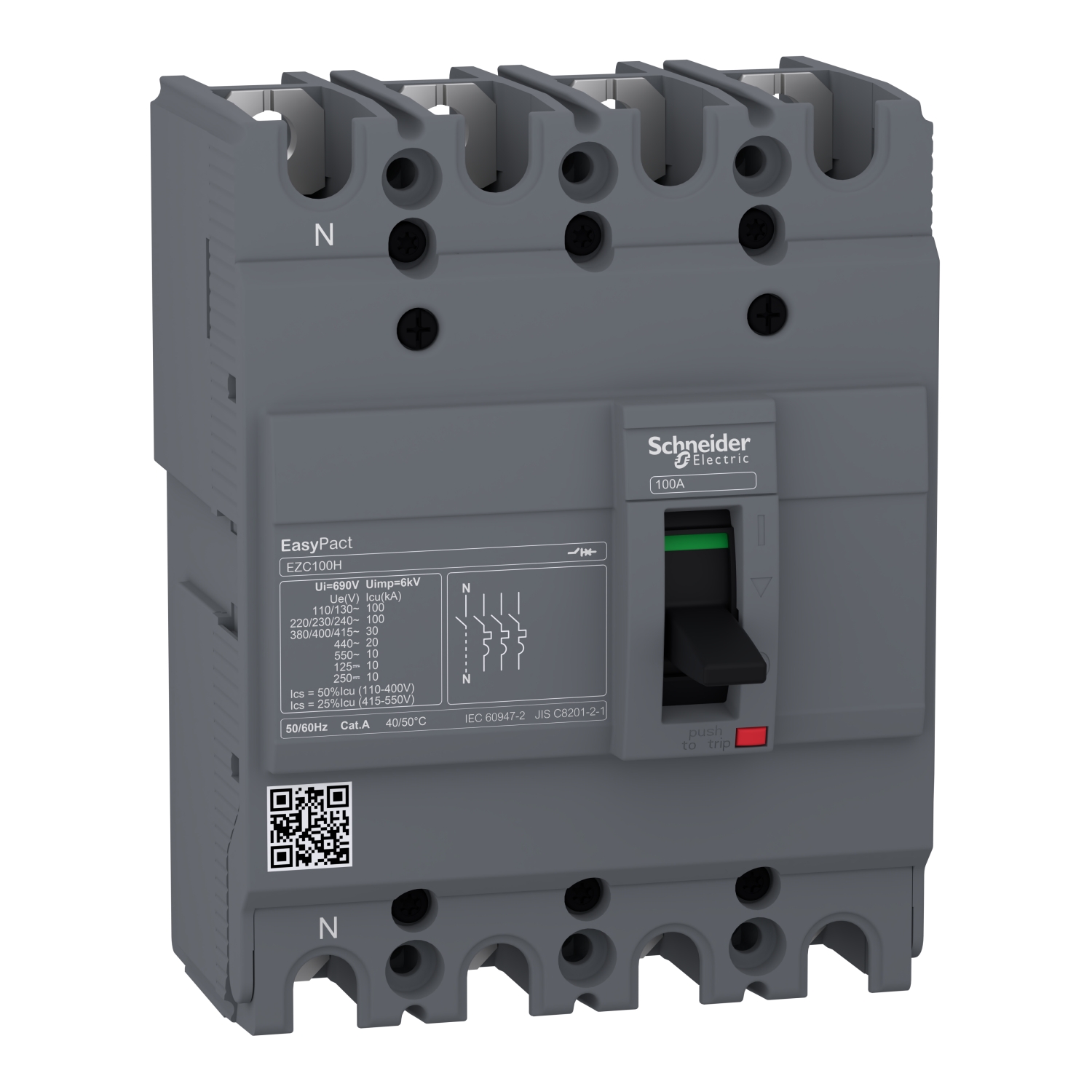

EZC100H4100 | Circuit Breaker Easypact EZC100H – TMD – 100 A – 4 Poles 3D – Schneider Electric

Product Description

The EZC100H4100 is a high-performance circuit breaker from Schneider Electric’s Easypact EZC100H series. Designed for industrial and commercial applications, this circuit breaker offers reliable protection against overloads and short circuits. It features a thermal-magnetic trip unit (TMD) with a rated current of 100 A and is available in a 4-pole configuration with 3D breaking capacity.

Key Features

• Series: Easypact EZC100H
• Type: Thermal-Magnetic Circuit Breaker (TMD)
• Rated Current: 100 A
• Number of Poles: 4 Poles
• Breaking Capacity: 3D (36 kA at 400 V AC)
• Voltage Rating: 400 V AC
• Frequency: 50/60 Hz
• Mounting: DIN Rail Mounting
• Standards: IEC 60947-2, IEC 60898-1
• Terminal Type: Screw Clamp
• Operating Temperature: -25°C to +60°C
• Protection Degree: IP20 (Front)
• Mechanical Durability: 20,000 Operations
• Electrical Durability: 10,000 Operations
• Weight: Approximately 1.2 kg

Applications

The EZC100H4100 is suitable for a wide range of applications, including:

• Industrial control panels
• Commercial buildings
• Distribution boards
• Motor control centers
• Power distribution systems

Advantages

• High breaking capacity for reliable protection
• Compact design for space-saving installation
• Easy to install and maintain
• Complies with international standards for safety and performance
• Durable construction for long service life

Technical Specifications

Compliance and Certifications

• IEC 60947-2
• IEC 60898-1
• CE Marked

Warranty

Schneider Electric offers a standard warranty of 24 months from the date of purchase, subject to terms and conditions.

Contact Information

For more information or to place an order, please contact Schneider Electric or your local distributor.
