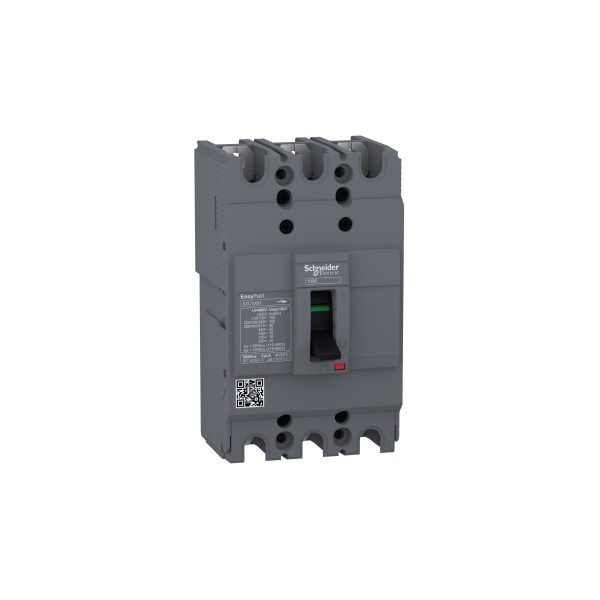

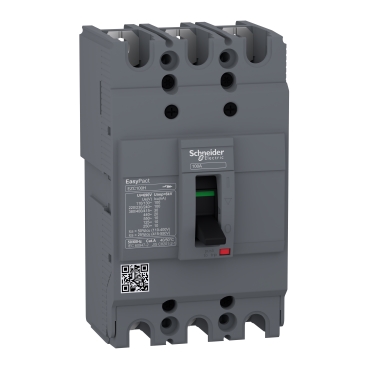

EZC100H3063 – Circuit Breaker Easypact EZC100H
Product Overview
The EZC100H3063 is a high-performance circuit breaker from Schneider Electric’s Easypact EZC100H series. Designed for industrial and commercial applications, this 3-pole circuit breaker offers reliable protection against overloads and short circuits. With a rated current of 63 A, it ensures the safety and efficiency of electrical installations.
Key Features
- Model: Easypact EZC100H
- Type: TMD (Thermal Magnetic Trip)
- Rated Current: 63 A
- Number of Poles: 3 poles
- Breaking Capacity: High breaking capacity for reliable protection
- Mounting: DIN rail mounting for easy installation
- Terminals: Screw-type terminals for secure connections
- Standards Compliance: Complies with IEC/EN 60947-2 standards
- Applications: Suitable for industrial, commercial, and residential electrical systems
- Durability: Robust construction for long-lasting performance
- Safety: Provides protection against overloads and short circuits
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Voltage (Ue) | 400 V AC |
| Rated Insulation Voltage (Ui) | 500 V AC |
| Rated Frequency | 50/60 Hz |
| Rated Short-Circuit Breaking Capacity (Icu) | 10 kA at 400 V AC |
| Operating Temperature Range | -25°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Mechanical Durability | 20,000 operations |
| Electrical Durability | 10,000 operations |
Applications
The EZC100H3063 circuit breaker is ideal for use in a variety of applications, including:
- Industrial control panels
- Commercial buildings
- Residential electrical systems
- Motor protection circuits
- Distribution boards
Installation and Maintenance
The EZC100H3063 is designed for easy installation on DIN rails, making it suitable for quick integration into existing electrical systems. Regular maintenance is recommended to ensure optimal performance and safety. Always follow the manufacturer’s guidelines for installation and maintenance.
Disclaimer
All specifications and features are subject to change without notice. Always refer to the product datasheet for the most accurate and up-to-date information.
