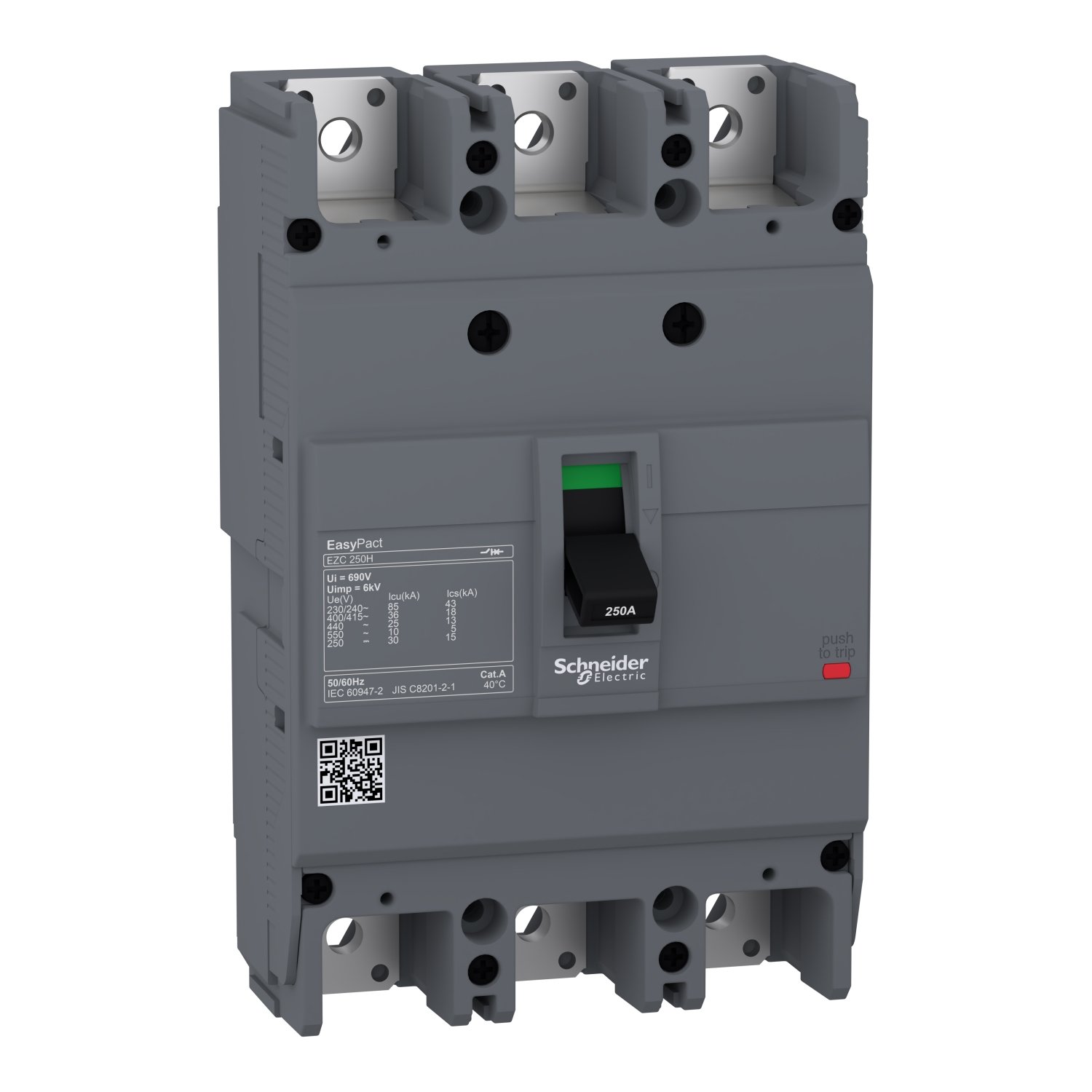

EZC250H3250 | Circuit Breaker Easypact EZC250H – TMD – 250 A – 3 Poles 3D – Schneider Electric
Product Overview
The EZC250H3250 is a high-performance circuit breaker from Schneider Electric’s Easypact EZC250H series. Designed for industrial and commercial applications, this circuit breaker offers reliable protection for electrical circuits against overloads and short circuits. It features a thermal-magnetic trip unit (TMD) and is rated for 250 A, making it suitable for a wide range of electrical systems.
Key Features
- Model: EZC250H3250
- Series: Easypact EZC250H
- Type: Thermal-Magnetic Circuit Breaker (TMD)
- Rated Current: 250 A
- Number of Poles: 3 Poles
- Breaking Capacity: High breaking capacity suitable for demanding applications
- Mounting: Fixed
- Termination: Screw terminals for secure connections
- Standards Compliance: Complies with international standards such as IEC 60947-2
- Application: Suitable for use in industrial, commercial, and infrastructure projects
- Protection: Provides protection against overloads and short circuits
- Durability: Robust construction for long-lasting performance
- Environmental Conditions: Designed to operate in a wide range of environmental conditions
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Voltage (Ue) | 400 V AC |
| Rated Insulation Voltage (Ui) | 690 V AC |
| Rated Frequency | 50/60 Hz |
| Rated Short-Circuit Breaking Capacity (Icu) | 36 kA at 400 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 36 kA at 400 V AC |
| Mechanical Durability | 20,000 operations |
| Electrical Durability | 10,000 operations |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Weight | Approx. 2.5 kg |
Applications
The EZC250H3250 circuit breaker is ideal for use in a variety of applications, including:
- Industrial control panels
- Commercial buildings
- Data centers
- Infrastructure projects
- Power distribution systems
Benefits
- High reliability and performance
- Easy installation and maintenance
- Comprehensive protection for electrical circuits
- Compliance with international standards
- Durable construction for long service life
Disclaimer
Specifications are subject to change without notice. Please refer to the product datasheet for the most up-to-date information.
