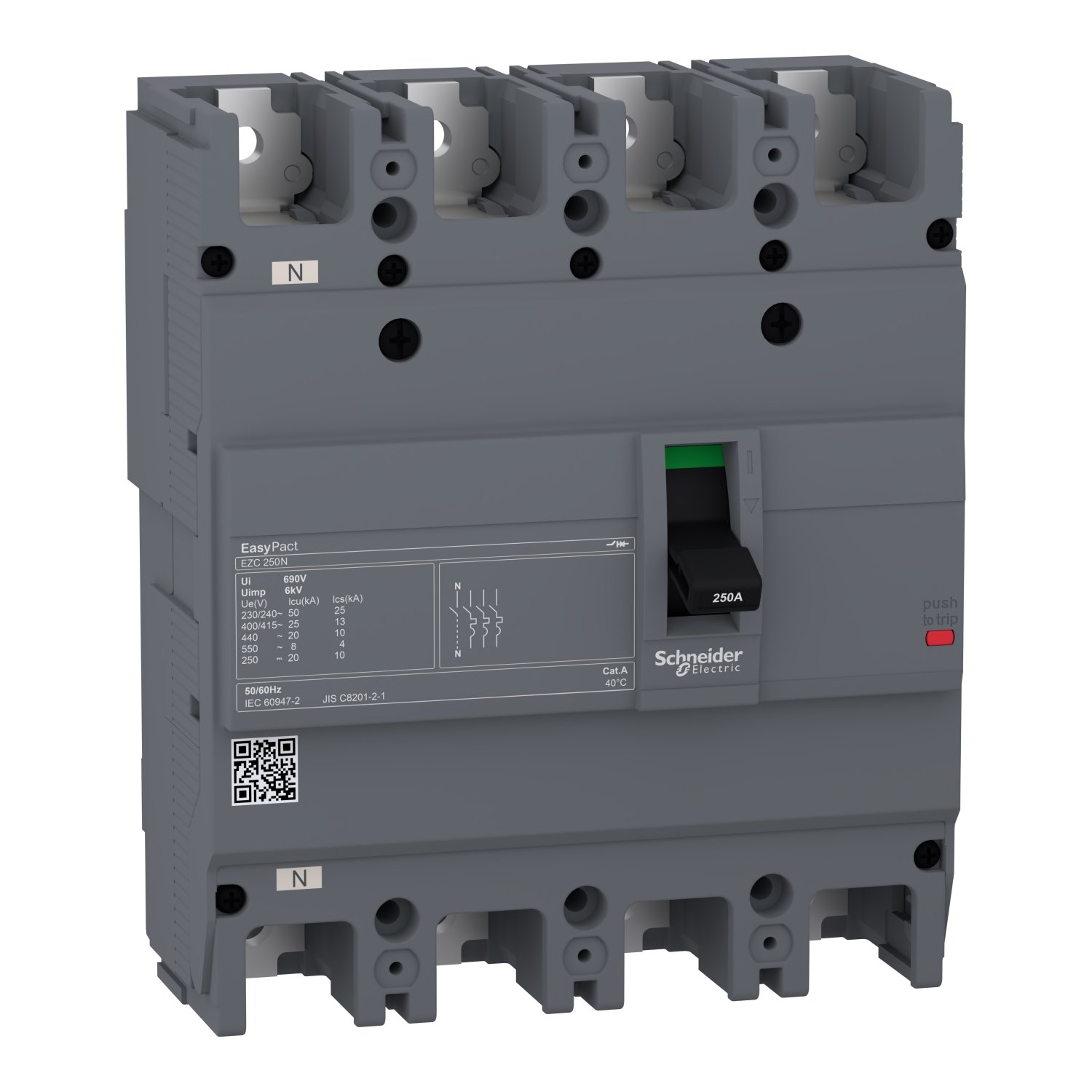

EZC250N4160 | Circuit Breaker Easypact EZC250N – TMD – 160 A – 4 Poles 3D – Schneider Electric
Product Overview
The EZC250N4160 is a high-performance circuit breaker from Schneider Electric’s Easypact EZC250N series. Designed for industrial and commercial applications, this circuit breaker ensures reliable protection against overloads and short circuits. It features a thermal-magnetic trip unit (TMD) and is rated for 160 A, making it suitable for a wide range of electrical systems.
Key Features
- Model: EZC250N4160
- Series: Easypact EZC250N
- Trip Unit: Thermal-Magnetic (TMD)
- Rated Current: 160 A
- Number of Poles: 4 Poles
- Breaking Capacity: High breaking capacity for reliable protection
- Mounting: DIN rail mounting for easy installation
- Terminal Type: Screw terminals for secure connections
- Standards Compliance: Complies with IEC/EN 60947-2 standards
- Applications: Suitable for industrial, commercial, and residential electrical systems
- Dimensions: Compact design for space-saving installation
- Environmental Conditions: Operates efficiently in a wide range of temperatures and humidity levels
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Voltage (Ue) | 400 V AC |
| Rated Insulation Voltage (Ui) | 690 V AC |
| Rated Frequency | 50/60 Hz |
| Rated Short-Circuit Breaking Capacity (Icu) | 36 kA at 400 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 36 kA at 400 V AC |
| Mechanical Durability | 20,000 cycles |
| Electrical Durability | 10,000 cycles |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Weight | Approx. 1.5 kg |
Applications
The EZC250N4160 circuit breaker is ideal for use in a variety of applications, including:
- Industrial control panels
- Commercial buildings
- Residential complexes
- Data centers
- Renewable energy systems
Benefits
- Reliable protection against overloads and short circuits
- High breaking capacity ensures safety in critical applications
- Compact design saves space in electrical panels
- Easy installation with DIN rail mounting
- Compliance with international standards ensures quality and safety
Disclaimer
Specifications and features are subject to change without prior notice. Always refer to the official product documentation for the most accurate and up-to-date information.
