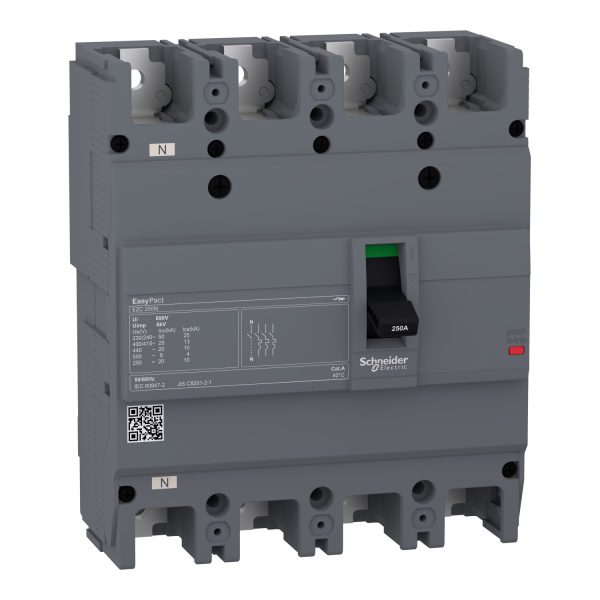

EZC250N4200 | circuit breaker Easypact EZC250N – TMD – 200 A – 4 poles 3d – Schneider Electric

Name: Schneider Electric Easypact EZC250N4200 Circuit Breaker | EZC250N - TMD - 200A - 4P 3D | Reliable Protection Solution
Brand: Schneider Electric
SKU: EZC250N4200

SKU: EZC250N4200

Out of stock

[njwa_button id="30177"]

Add to compare

17 People watching this product now!

Payment Methods:

EZC250N4200 | Circuit Breaker Easypact EZC250N – TMD – 200 A – 4 Poles 3D – Schneider Electric

Product Overview

The EZC250N4200 is a high-performance circuit breaker from Schneider Electric’s Easypact EZC250N series. Designed for industrial and commercial applications, this circuit breaker offers reliable protection against overloads and short circuits. It features a 4-pole configuration with a thermal-magnetic trip unit (TMD) and a rated current of 200 A.

Key Features

Model: EZC250N4200
Series: Easypact EZC250N
Type: Thermal-Magnetic Circuit Breaker (TMD)
Rated Current: 200 A
Number of Poles: 4 Poles
Breaking Capacity: High breaking capacity for reliable protection
Mounting: Fixed mounting type
Terminal Type: Screw terminals for secure connections
Standards Compliance: Complies with international standards such as IEC 60947-2
Application: Suitable for industrial, commercial, and infrastructure applications
Dimensions: Compact design for space-saving installation
Environmental Conditions: Operates efficiently in a wide range of temperatures and humidity levels

Technical Specifications

Parameter	Value
Rated Voltage (Ue)	400 V AC
Rated Insulation Voltage (Ui)	690 V AC
Rated Frequency	50/60 Hz
Breaking Capacity (Icu)	36 kA at 400 V AC
Mechanical Durability	20,000 cycles
Electrical Durability	10,000 cycles
Operating Temperature	-25°C to +70°C
Storage Temperature	-40°C to +85°C

Applications

The EZC250N4200 circuit breaker is ideal for use in:

Industrial control panels
Commercial buildings
Data centers
Renewable energy systems
Infrastructure projects

Benefits

High reliability and durability
Easy installation and maintenance
Compact design for space optimization
Compliance with international safety standards
Enhanced protection against electrical faults

Disclaimer

Specifications and features are subject to change without prior notice. Always refer to the official Schneider Electric documentation for the most accurate and up-to-date information.
