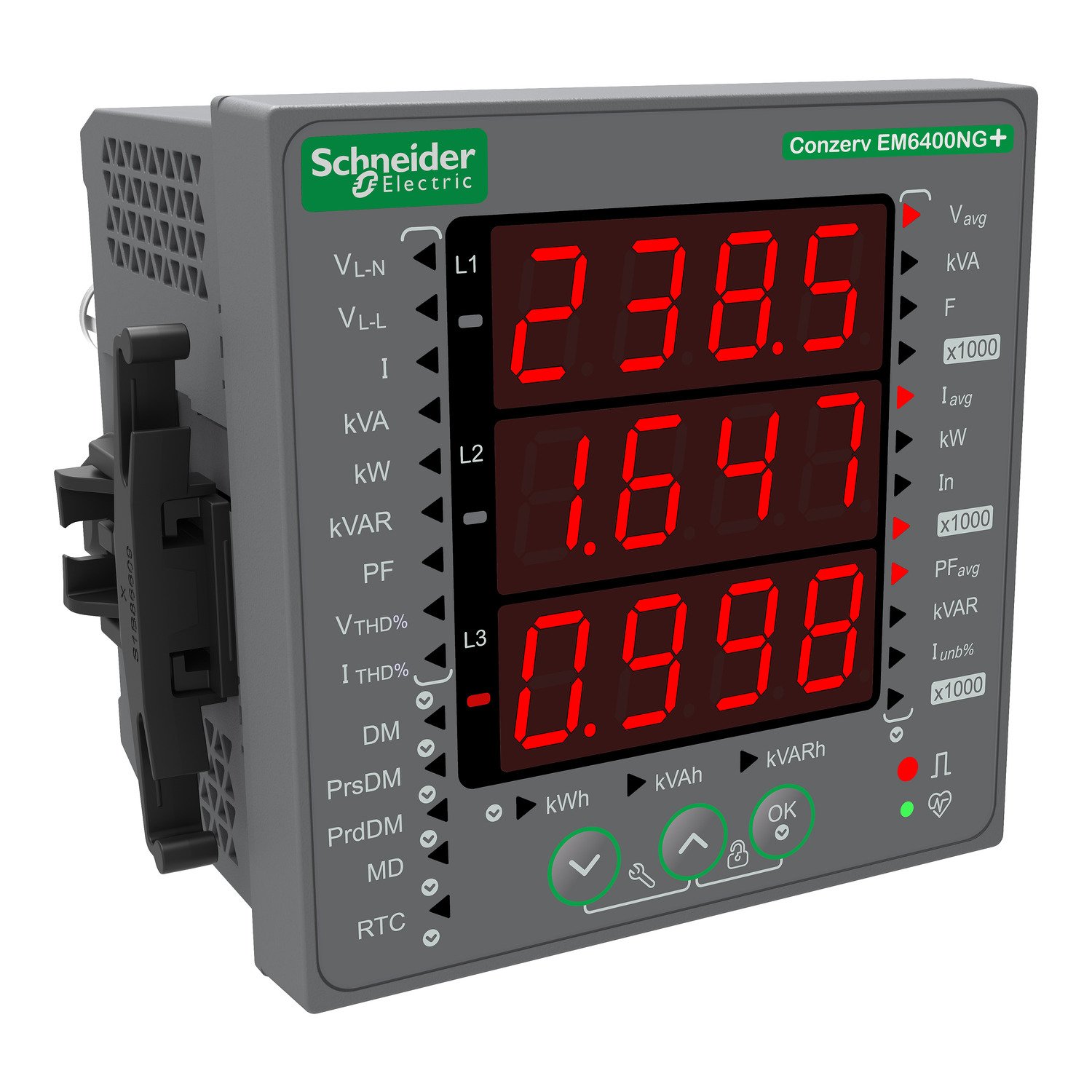

METSEEM6400NGPOCL5 | Conzerv Power and Energy meter – instantaneous, pulse output, THD, Class 0.5S – Schneider Electric

Name: Schneider Electric Conzerv EM6400 Power Meter Class 0.5S | METSEEM6400NGPOCL5
Brand: Schneider Electric
SKU: METSEEM6400NGPOCL5
Price: 7030.00 INR
Availability: BackOrder

SKU: METSEEM6400NGPOCL5

Original price was: ₹18,500.00.Current price is: ₹7,030.00. Excl. GST

Dispatch By : 2 Weeks

19 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Looking for the METSEEM6400NGPOCL5 | Conzerv Power and Energy meter – instantaneous, pulse output, THD, Class 0.5S? This genuine Schneider Electric panel meter from the EasyLogic range is built for accurate electrical measurement and monitoring, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 1 A, IP51 front:. Order part number METSEEM6400NGPOCL5 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	METSEEM6400NGPOCL5
Category	Panel Meter
Main
Range	EasyLogic
Product name	EM6400NG+ POP
Product or component type	Energy meter
Complementary
Power quality analysis	total harmonic distortion
Device application	Power monitoring
Type of measurement	Current Voltage Frequency Apparent energy Apparent power Active and reactive energy Active and reactive power
Metering type	Average current Iavg Calculated neutral current Reactive power Q, Q1, Q2, Q3 Peak demand currents Unbalance current Demand current I1, I2, I3 Peak demand power PM, QM, SM Apparent power S, S1, S2, S3 Phase currents Average voltage Vavg Voltage U21, U32, U13, V1, V2, V3 Power factor and displacement PF (signed, four quadrant) Demand power P, Q, S Active power P, P1, P2, P3 Active, reactive, apparent energy (signed, four quadrant)
[Us] rated supply voltage	40…300 V AC 45…65 Hz 40…300 V DC
Network frequency	50 Hz 60 Hz
[In] rated current	1 A 5 A
type of network	3P 1P + N 2P + N 2P 3P + N
Maximum power consumption in VA	6 VA at 277 V between phase and neutral
Maximum power consumption in W	2 W at 277 V
Display type	7 segments LED
Display colour	Red
Messages display capacity	3 fields of 4 characters
Display digits	12 digit(s) – 14.2 mm in height
Communication of data	Reading of time-stamped measurements and events Total energy Energy metering Net energy
Tamperproof of settings	Protected by access code
Sampling rate	64 samples/cycle
Measurement current	5…6000 mA
Signal	Current 0…12 A (impedance 0.3 MOhm)6 x Voltage (impedance 5 MOhm)4 x
Measurement voltage	35…480 V AC 45…65 Hz between phases 35…277 V AC 45…65 Hz between phase and neutral 35…600 V AC 45…65 Hz between phases 35…347 V AC 45…65 Hz between phase and neutral 600…999000 V AC 45…65 Hz with external VT
Frequency measurement range	45…65 Hz
Measurement accuracy	Current +/- 0.5 % Voltage +/- 0.5 % Power +/- 0.5 % Frequency +/- 0.05 % Power factor +/- 0.01
Accuracy class	Class 5P total current harmonic distortion THD (I) conforming to IEC 61557-12 Class 5P total voltage harmonic distortion THD (U) conforming to IEC 61557-12 Class 0.5S active energy conforming to IEC 62053-22 Class 1 reactive energy conforming to IEC 62053-24
Number of outputs	1 pulse
Output voltage	5…40 V DC@20 mA
Impulse duration	20 ms
Demand intervals	Configurable from 1 to 60 min
Local signalling	Green LED: activity Red LED: output signal 1…9999000 pulse/ k_h (kWh, kVAh, kVARh)
Communication port protocol	–
Communication port support	–
Data recording	Energy consumption logs
Material	Polycarbonate
Flame retardance	V-0 conforming to UL 94
Mounting mode	Flush-mounted
Mounting support	Framework
Installation category	III
Type of installation	Indoor installation
Measurement category	Category III 480 V Category II 480…600 V
Electrical insulation class	Class II
Connections – terminals	Current circuit: screw clamp terminals (bottom) 2.08…3.31 mm² cable(s) Voltage circuit: screw clamp terminals (top) 0.82…3.31 mm² cable(s) Control circuit: screw clamp terminals (top) 0.82…3.31 mm² cable(s) Communication: screw clamp terminals 0.33…3.31 mm² cable(s)
Tightening torque	Current circuit: 0.9…1 N.m Philips No 2 screwdriver Voltage circuit: 0.9…1 N.m Philips No 2 screwdriver Control circuit: 0.9…1 N.m Philips No 2 screwdriver Communication: 0.9…1 N.m Philips No 2 screwdriver
Wire stripping length	Current circuit: 3.68 mm Voltage circuit: 7 mm Control circuit: 7 mm Communication: 7 mm
Standards	IEC 61010-1:ed. 3 UL 61010-1:ed. 3
Product certifications	CE conforming to IEC 61010-1 CULus conforming to UL 61010-1 CULus conforming to CSA C22.2 No 61010-1 C-Tick
Width	96 mm
Depth	Panel : 73 mm Outside : 13 mm
Height	96 mm
Product weight	600 g
Environment
Electromagnetic compatibility	Electrostatic discharge conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 Surge immunity test conforming to IEC 61000-4-5 Conducted RF disturbances conforming to IEC 61000-4-6 Magnetic field at power frequency conforming to IEC 61000-4-8 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 Emission tests conforming to FCC part 15 class A
Overvoltage category	III
IP degree of protection	IP51 front: conforming to IEC 60529 IP30 body: conforming to IEC 60529
Relative humidity	5…95 % at 50 °C
Pollution degree	2
Ambient air temperature for operation	-10…60 °C
Ambient air temperature for storage	-20…70 °C
Operating altitude	<= 2000 m
service life	7 year(s)
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7.2 cm
Package 1 Width	9.6 cm
Package 1 Length	9.6 cm
Package 1 Weight	0.5 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
