LC1E630M7 | Easy TeSys Contactor

Product Overview

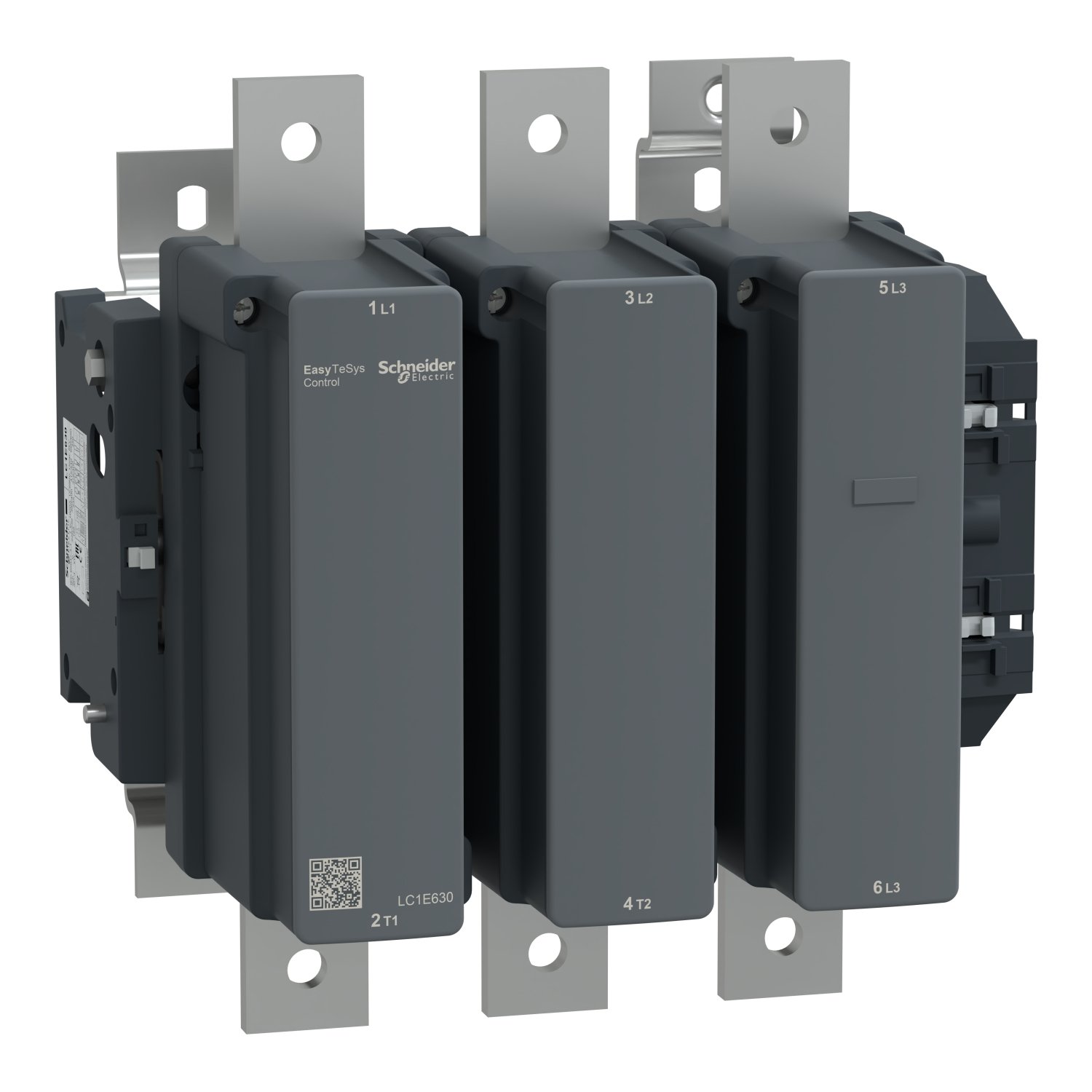

The LC1E630M7 is a high-performance 3-pole contactor from Schneider Electric’s Easy TeSys series. Designed for industrial and commercial applications, this contactor ensures reliable switching and control of electrical circuits. It is suitable for AC-3 applications and operates at voltages up to 440V with a current rating of 630A.

Key Features

• Type: 3P (3 NO) – 3 Poles with 3 Normally Open Contacts
• Rated Operational Current (Ie): 630A
• Rated Operational Voltage (Ue): ≤ 440V AC
• Coil Voltage: 220V AC
• Application Category: AC-3 (Squirrel Cage Motor Switching)
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Mounting: Screw or snap-on mounting
• Terminal Type: Screw terminals for secure connections
• Enclosure: IP20 protection for safe operation
• Compliance: Meets international standards such as IEC 60947-4-1

Applications

The LC1E630M7 is ideal for controlling high-power loads in various applications, including:

• Motor control in industrial machinery
• HVAC systems
• Pumps and compressors
• Conveyor systems
• Lighting control

Technical Specifications

Benefits

• High reliability and durability for demanding applications
• Easy installation and maintenance
• Compact design for space-saving installation
• Compatible with Schneider Electric’s TeSys accessories

Ordering Information

Product Code: LC1E630M7

Manufacturer: Schneider Electric

Series: Easy TeSys

Warranty and Support

Schneider Electric offers a standard warranty on the LC1E630M7 contactor. For technical support and warranty claims, contact Schneider Electric’s customer service or visit their official website.

Product PDF
