LC1E65B7 | Easy TeSys Contactor

Product Overview

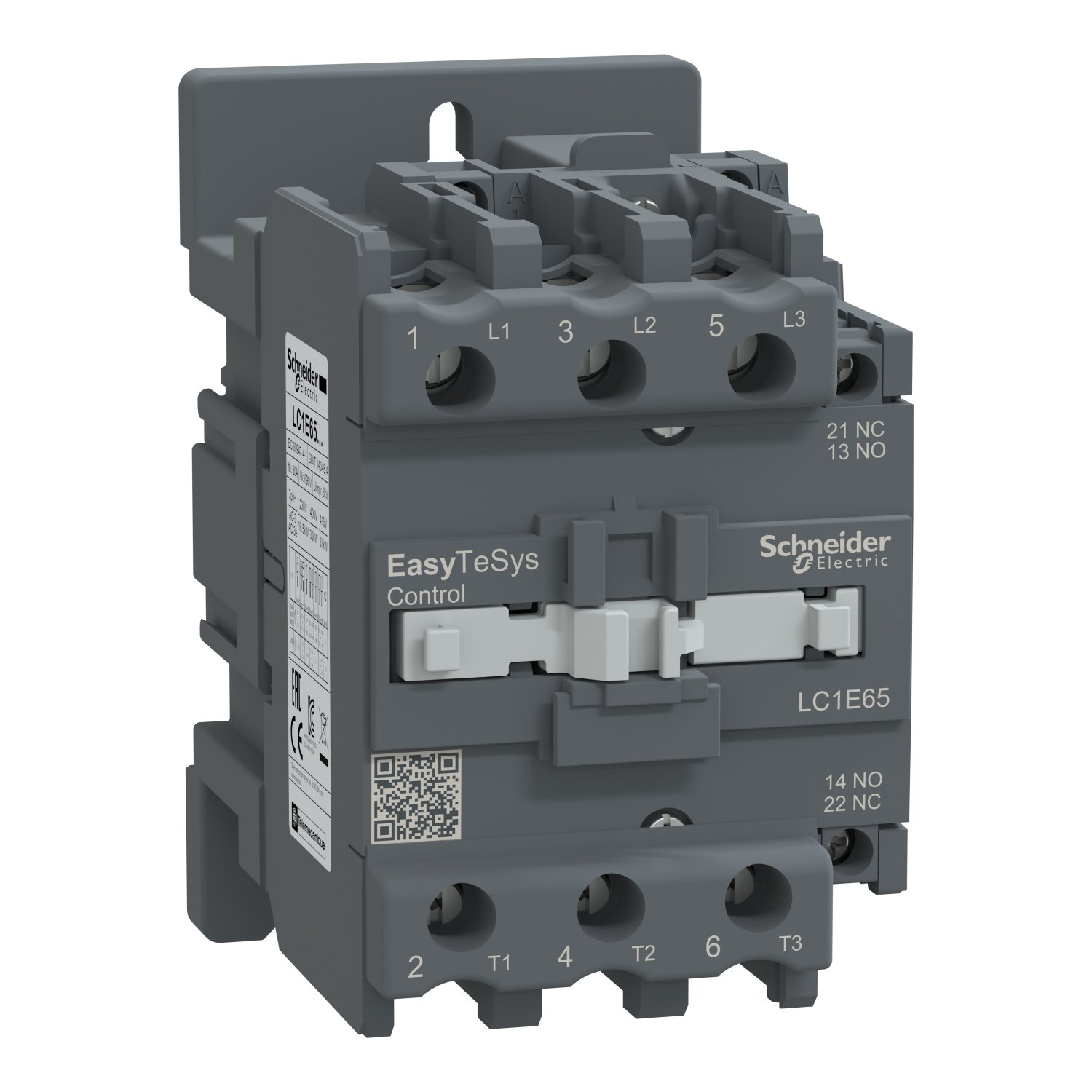

The LC1E65B7 is a 3-pole contactor from Schneider Electric’s Easy TeSys series, designed for reliable switching of electrical loads. It is suitable for a wide range of industrial and commercial applications, offering high performance and durability.

Key Features

• Type: 3P (3 NO) – 3 poles with 3 normally open contacts
• Rated Operational Voltage: Up to 440 V AC
• Rated Operational Current (AC-3): 65 A
• Coil Voltage: 24 V AC
• Mounting: Screw mounting or snap-on mounting on DIN rail
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Standards Compliance: IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 14
• Environmental Protection: IP20 (finger-safe design)
• Temperature Range: -25°C to +60°C
• Dimensions: Compact design for space-saving installation
• Accessories: Compatible with auxiliary contacts, mechanical interlocks, and surge suppressors

Applications

The LC1E65B7 contactor is ideal for controlling motors, lighting, heating, and other electrical loads in various applications, including:

• Industrial machinery
• HVAC systems
• Pumps and compressors
• Conveyor systems
• Commercial buildings

Advantages

• High reliability and long service life
• Easy installation and maintenance
• Wide range of compatible accessories
• Energy-efficient design
• Global certifications for safety and performance

Technical Specifications

Warranty

Schneider Electric offers a standard warranty on this product, subject to terms and conditions. Please refer to the official documentation for details.
