LC1E0901B7 | Easy TeSys Contactor

Product Description

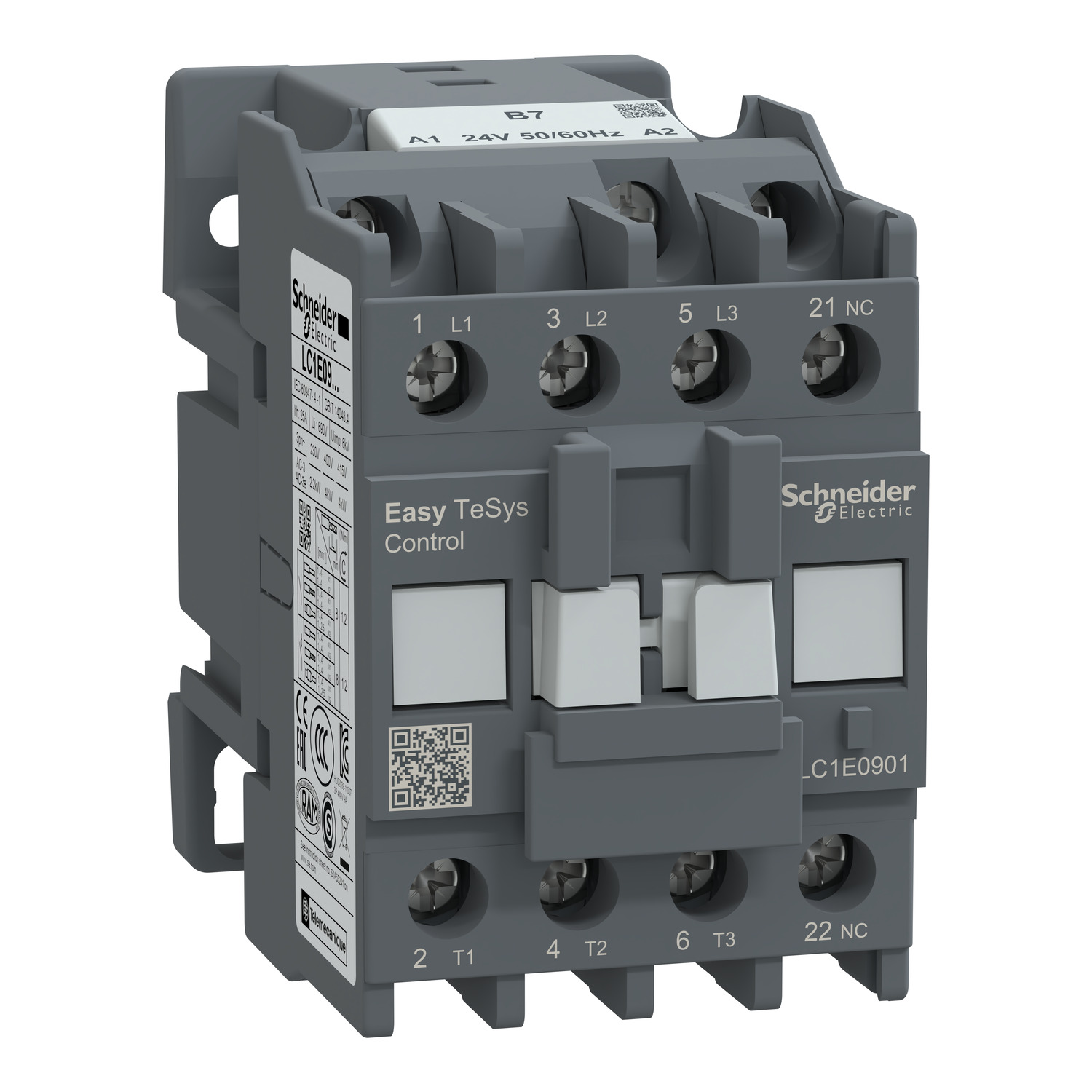

The LC1E0901B7 is a 3-pole (3 NO) contactor from Schneider Electric’s Easy TeSys series, designed for reliable switching of electrical loads. It is suitable for AC-3 applications and operates at voltages up to 440 V with a current rating of 9 A. The contactor features a 24 V AC coil, making it ideal for a wide range of industrial and commercial applications.

Key Features

• Type: Contactor
• Series: Easy TeSys
• Number of Poles: 3 (3 Normally Open – NO)
• Rated Operational Voltage (Ue): ≤ 440 V AC
• Rated Operational Current (Ie): 9 A (AC-3)
• Coil Voltage: 24 V AC
• Application Category: AC-3 (Squirrel cage motors: starting, switching off)
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Mounting: Screw mounting or snap-on mounting
• Terminal Type: Screw terminals
• Dimensions: Compact design for space-saving installation
• Standards: Complies with IEC 60947-4-1, UL 508, and CSA C22.2 No. 14 standards
• Environmental Compliance: RoHS compliant

Applications

The LC1E0901B7 contactor is widely used in:

• Motor control applications
• HVAC systems
• Industrial machinery
• Pump and fan control
• Lighting control systems

Benefits

• High reliability and durability
• Easy installation and maintenance
• Compact design for efficient use of space
• Compatible with a wide range of control systems
• Complies with international safety and quality standards

Additional Resources

For more information, including technical specifications and installation guides, visit the Schneider Electric website.
