LC1E80E7 | Easy TeSys Contactor

Product Overview

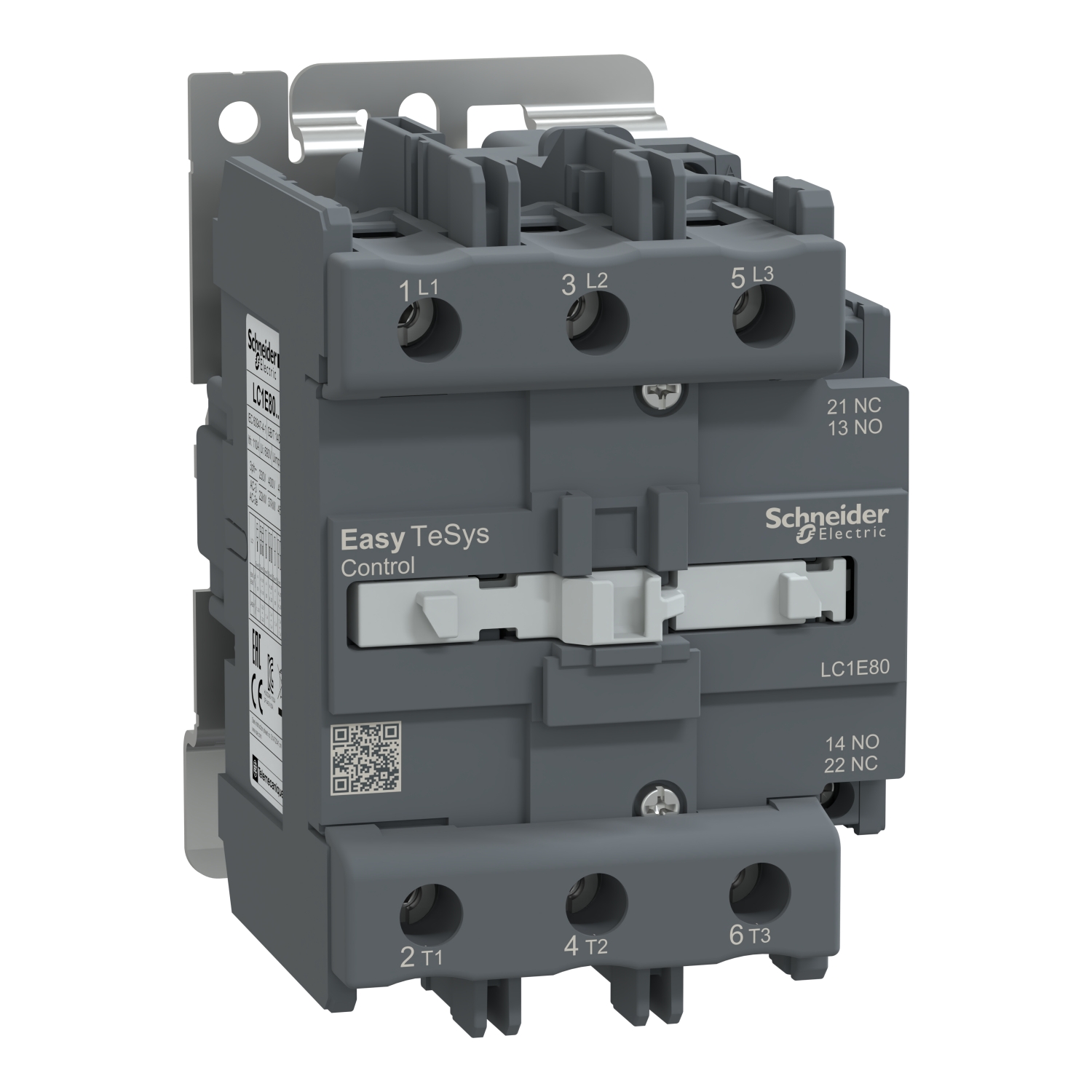

The LC1E80E7 is a 3-pole (3 NO) contactor from Schneider Electric’s Easy TeSys series, designed for reliable switching and control of electrical loads. It is suitable for AC-3 applications and operates at voltages up to 440 V with a current rating of 80 A. The contactor features a 48 V AC coil, making it ideal for a wide range of industrial and commercial applications.

Key Features

• Type: Contactor
• Poles: 3P (3 Normally Open – NO)
• Rated Operational Voltage (Ue): Up to 440 V AC
• Rated Operational Current (Ie): 80 A (AC-3)
• Coil Voltage: 48 V AC
• Application Category: AC-3 (Squirrel cage motors)
• Mechanical Durability: High number of mechanical operations
• Electrical Durability: High number of electrical operations
• Mounting: Screw mounting or snap-on mounting
• Terminal Type: Screw terminals for secure connections
• Environmental Compliance: RoHS compliant
• Safety Standards: Complies with IEC/EN 60947-4-1 standards

Applications

The LC1E80E7 contactor is widely used in:

• Motor control applications
• Industrial automation systems
• HVAC systems
• Pump and fan control
• Lighting control systems

Technical Specifications

Advantages

• Compact and modular design for easy installation
• High reliability and durability
• Energy-efficient operation
• Compatible with a wide range of accessories
• Easy integration into control systems

Accessories

The LC1E80E7 contactor can be used with various accessories, including:

• Auxiliary contacts
• Mechanical interlocks
• Time delay modules
• Surge suppressors

Warranty

Schneider Electric offers a standard warranty for the LC1E80E7 contactor, ensuring high-quality performance and reliability. Refer to the manufacturer’s warranty policy for detailed terms and conditions.
