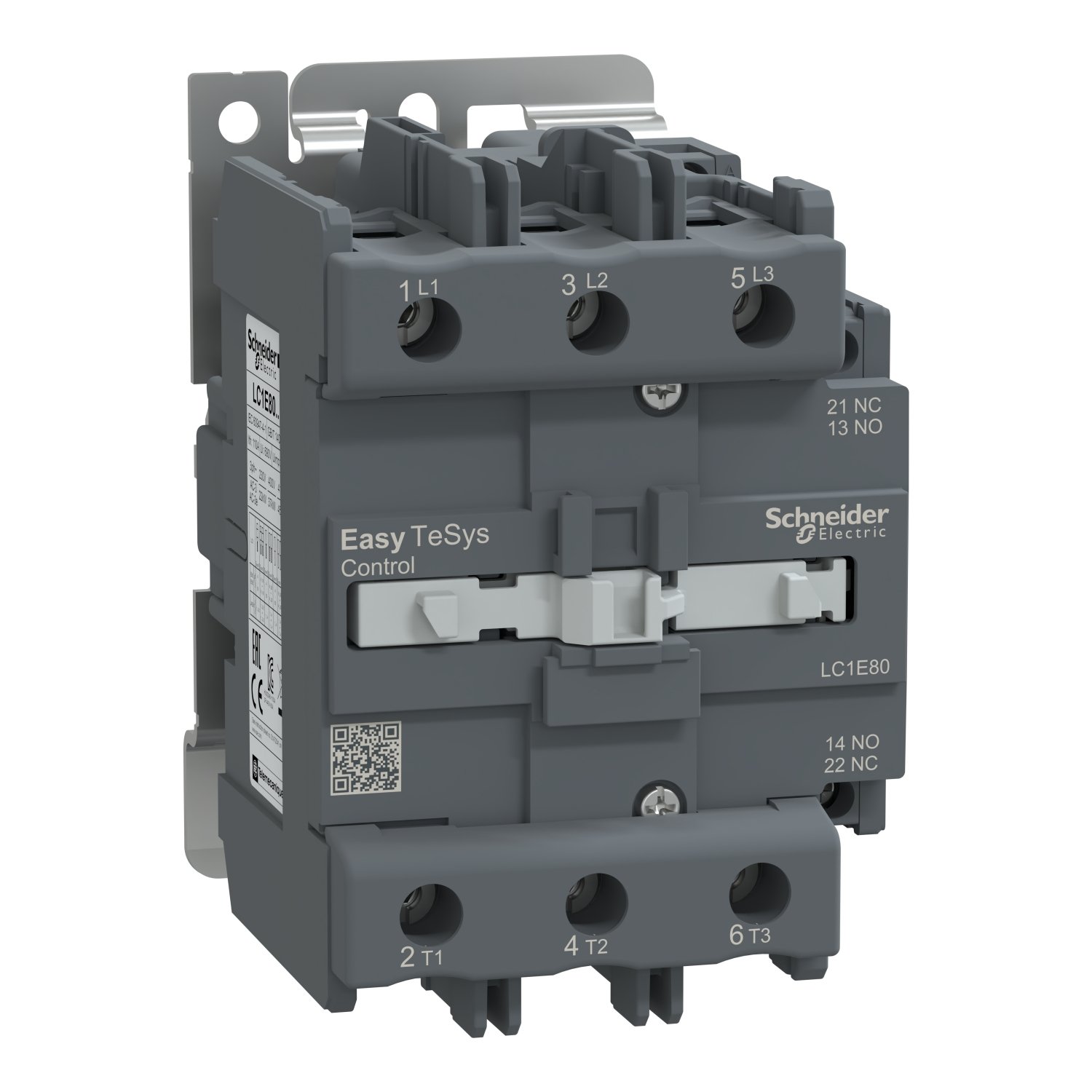

LC1E80F7 | Easy TeSys Contactor
Product Description
The LC1E80F7 is a 3-pole (3 NO) contactor from Schneider Electric’s Easy TeSys series, designed for reliable switching and control of electrical loads. It is suitable for AC-3 applications and operates at voltages up to 440 V with a current rating of 80 A. The contactor features a 110 V AC coil, making it ideal for industrial and commercial applications.
Key Features
- Type: Contactor
- Series: Easy TeSys
- Number of Poles: 3 (3 NO)
- Rated Operational Voltage (Ue): ≤ 440 V AC
- Rated Operational Current (Ie): 80 A
- Coil Voltage: 110 V AC
- Application Category: AC-3 (Squirrel cage motors: starting, switching off)
- Mechanical Durability: High number of mechanical operations
- Electrical Durability: High number of electrical operations
- Mounting: Screw mounting or snap-on mounting
- Terminal Type: Screw terminals
- Environmental Compliance: RoHS compliant
- Safety Standards: IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14
Applications
The LC1E80F7 contactor is widely used in:
- Motor control applications
- Industrial machinery
- HVAC systems
- Pump and fan control
- Lighting control systems
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Insulation Voltage (Ui) | 690 V AC |
| Rated Thermal Current (Ith) | 80 A |
| Power Consumption (Coil) | Approx. 15 VA |
| Operating Temperature Range | -25°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Weight | Approx. 0.5 kg |
Dimensions
Compact design with dimensions suitable for easy installation in control panels.
Warranty
Schneider Electric offers a standard warranty of 2 years for this product, subject to terms and conditions.
