LC1E120B5 | Easy TeSys Contactor

Product Overview

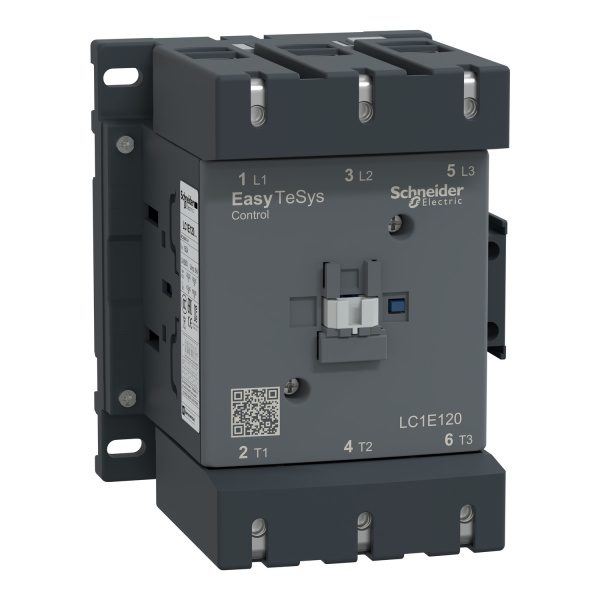

The LC1E120B5 is a 3-pole contactor from Schneider Electric’s Easy TeSys series, designed for reliable switching of electrical loads. It is suitable for AC-3 applications and operates at voltages up to 440 V with a current rating of 120 A. The contactor features a 24 V AC coil, making it ideal for industrial and commercial applications.

Key Features

• Type: Contactor
• Series: Easy TeSys
• Number of Poles: 3 (3 NO – Normally Open)
• Rated Operational Voltage (Ue): ≤ 440 V AC
• Rated Operational Current (Ie): 120 A
• Coil Voltage: 24 V AC
• Application Category: AC-3 (Squirrel cage motors: starting, switching off)
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Mounting: Screw mounting or snap-on mounting
• Terminal Type: Screw terminals
• Environmental Compliance: RoHS compliant
• Standards: IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14

Applications

The LC1E120B5 contactor is widely used in industrial and commercial environments for controlling motors, lighting, heating, and other electrical loads. It is particularly suitable for applications requiring reliable and durable switching performance.

Dimensions and Weight

• Width: 55 mm
• Height: 98 mm
• Depth: 88 mm
• Weight: Approx. 0.8 kg

Additional Information

For more details, refer to the official Schneider Electric product documentation or contact their customer support team.
