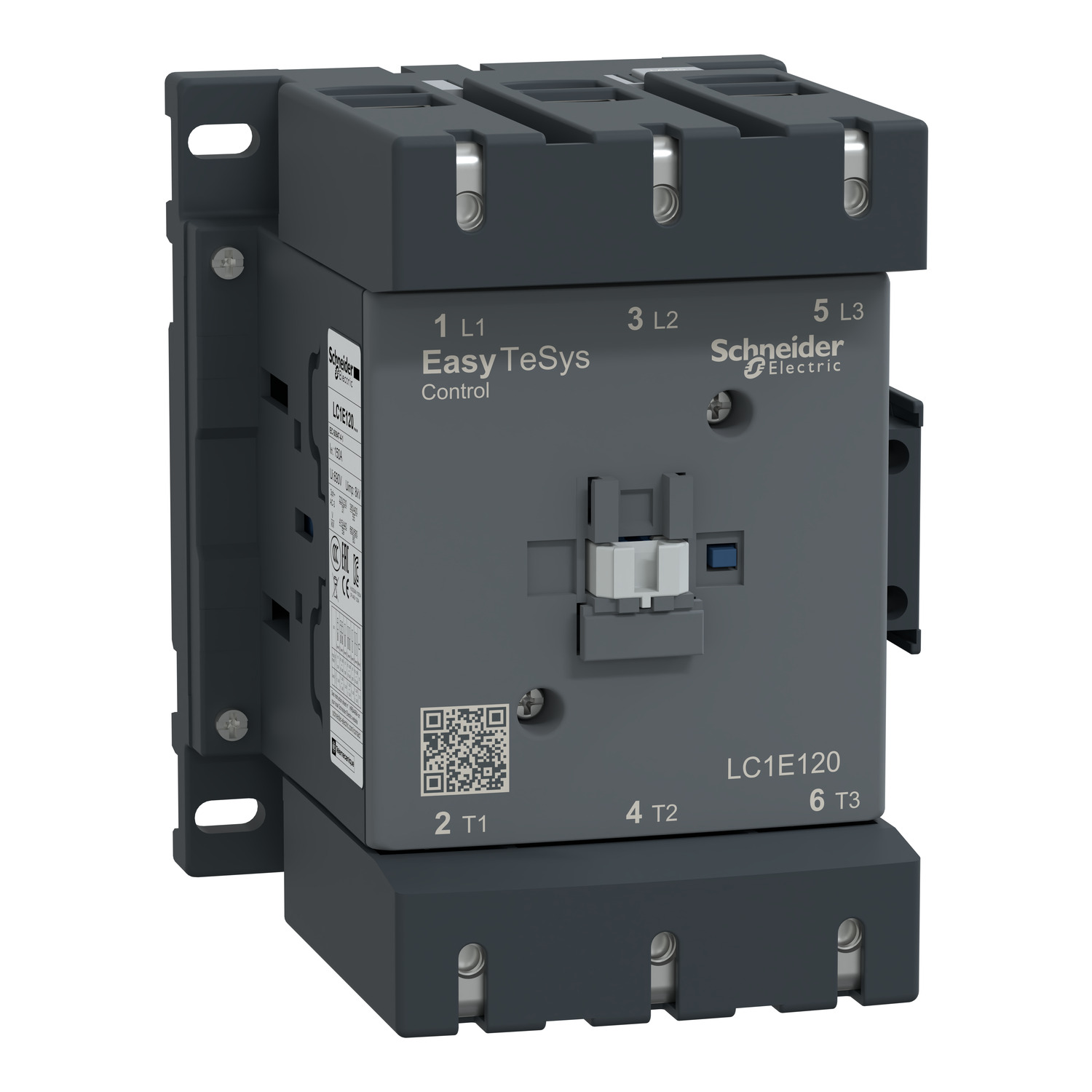

LC1E120F5 | Easy TeSys Contactor
Product Description
The LC1E120F5 is a 3-pole (3 NO) contactor from Schneider Electric’s Easy TeSys series, designed for reliable switching and control of electrical loads. It is suitable for AC-3 applications and operates at voltages up to 440 V with a current rating of 120 A. The contactor features a 110 V AC coil, making it ideal for industrial and commercial applications.
Key Features
- Type: Contactor
- Series: Easy TeSys
- Number of Poles: 3 (3 NO)
- Rated Operational Voltage (Ue): ≤ 440 V AC
- Rated Operational Current (Ie): 120 A
- Coil Voltage: 110 V AC
- Application Category: AC-3 (Squirrel cage motors)
- Mechanical Durability: High number of mechanical operations
- Electrical Durability: High number of electrical operations
- Mounting: Screw mounting
- Terminal Type: Screw terminals
- Dimensions: Compact design for space-saving installation
- Standards: Complies with IEC/EN 60947-4-1 standards
- Environmental Conditions: Suitable for use in harsh environments
Applications
The LC1E120F5 contactor is widely used in industrial and commercial settings for controlling motors, lighting, heating, and other electrical loads. It is particularly suitable for applications requiring frequent switching and high reliability.
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Insulation Voltage (Ui) | 690 V AC |
| Rated Thermal Current (Ith) | 120 A |
| Rated Operational Power (P) | 55 kW at 400 V AC |
| Coil Power Consumption | Low power consumption for energy efficiency |
| Operating Temperature Range | -25°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Weight | Approx. 1.2 kg |
Additional Information
For more details, including wiring diagrams, installation instructions, and technical support, please refer to the official Schneider Electric documentation or contact their customer service team.
